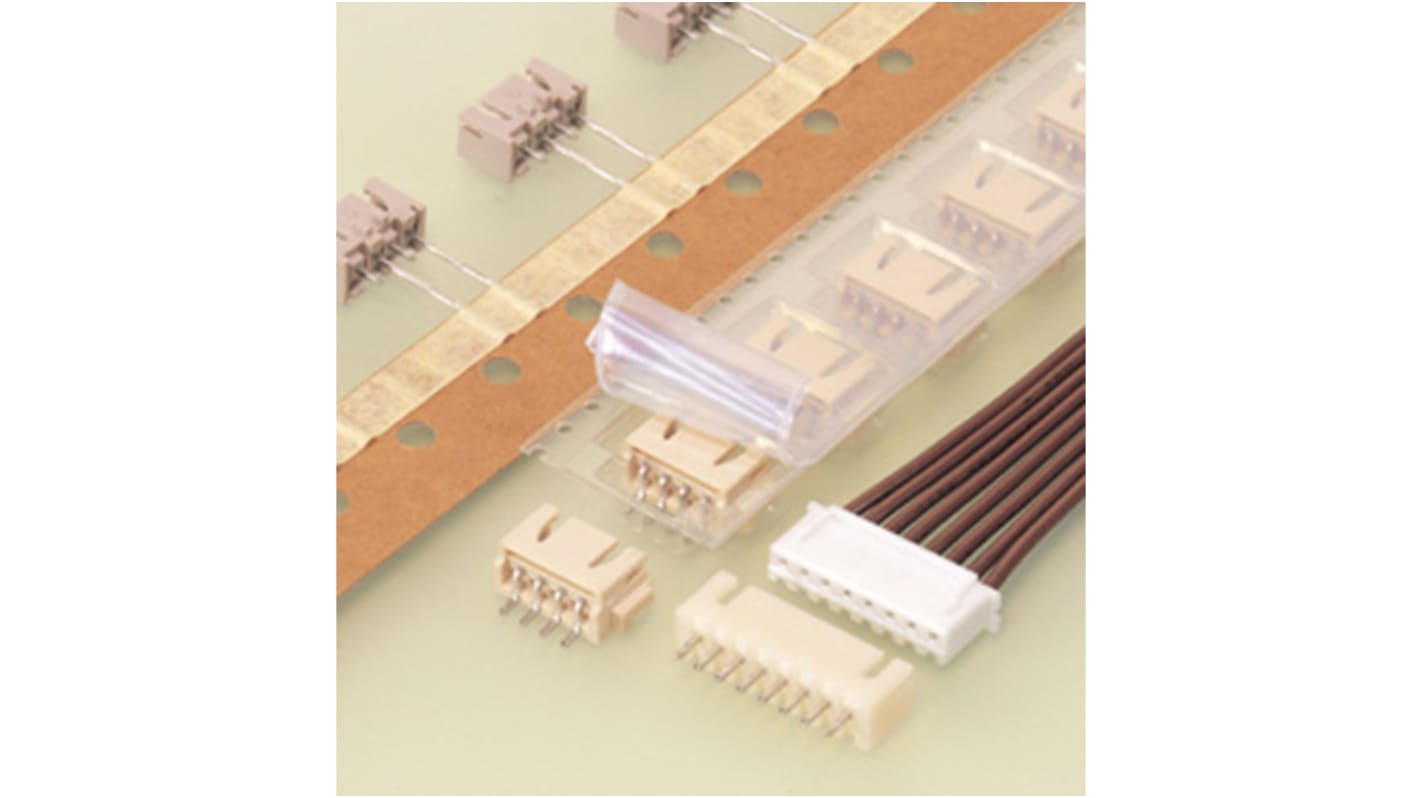

JST XH Series Straight Through Hole PCB Header, 5 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers
Bulk discount available

Subtotal (1 pack of 10 units)*

£1.68

(exc. VAT)

£2.02

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 450 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 240£0.168£1.68
250 - 490£0.146£1.46
500 - 990£0.137£1.37
1000 - 1990£0.127£1.27
2000 +£0.122£1.22

*price indicative

RS Stock No.:
175-5489
Mfr. Part No.:
B5B-XH-AM (LF)(SN)
Brand:
JST
Find similar products by selecting one or more attributes.
Select all

Brand

JST

Series

XH

Product Type

PCB Header

Current

3A

Pitch

2.5mm

Number of Contacts

5

Housing Material

Polyamide

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Through Hole

Connector System

Board-to-Board

Contact Material

Brass

Minimum Operating Temperature

-25°C

Row Pitch

2.5mm

Termination Type

Solder

Maximum Operating Temperature

85°C

Contact Gender

Male

Tail Pin Length

3.4mm

Standards/Approvals

No

Voltage

1000 V

COO (Country of Origin):
CN
The JST B5B-XH-AM (LF) (SN) is a XH series, 5 way, single row, 2. 5 mm pitch, TOP entry type through hole shrouded header with a boss.

Original folded beam contact

Box-shaped shrouded header

Header with a Boss

Interchangeability

Conforming to the HA Terminal
