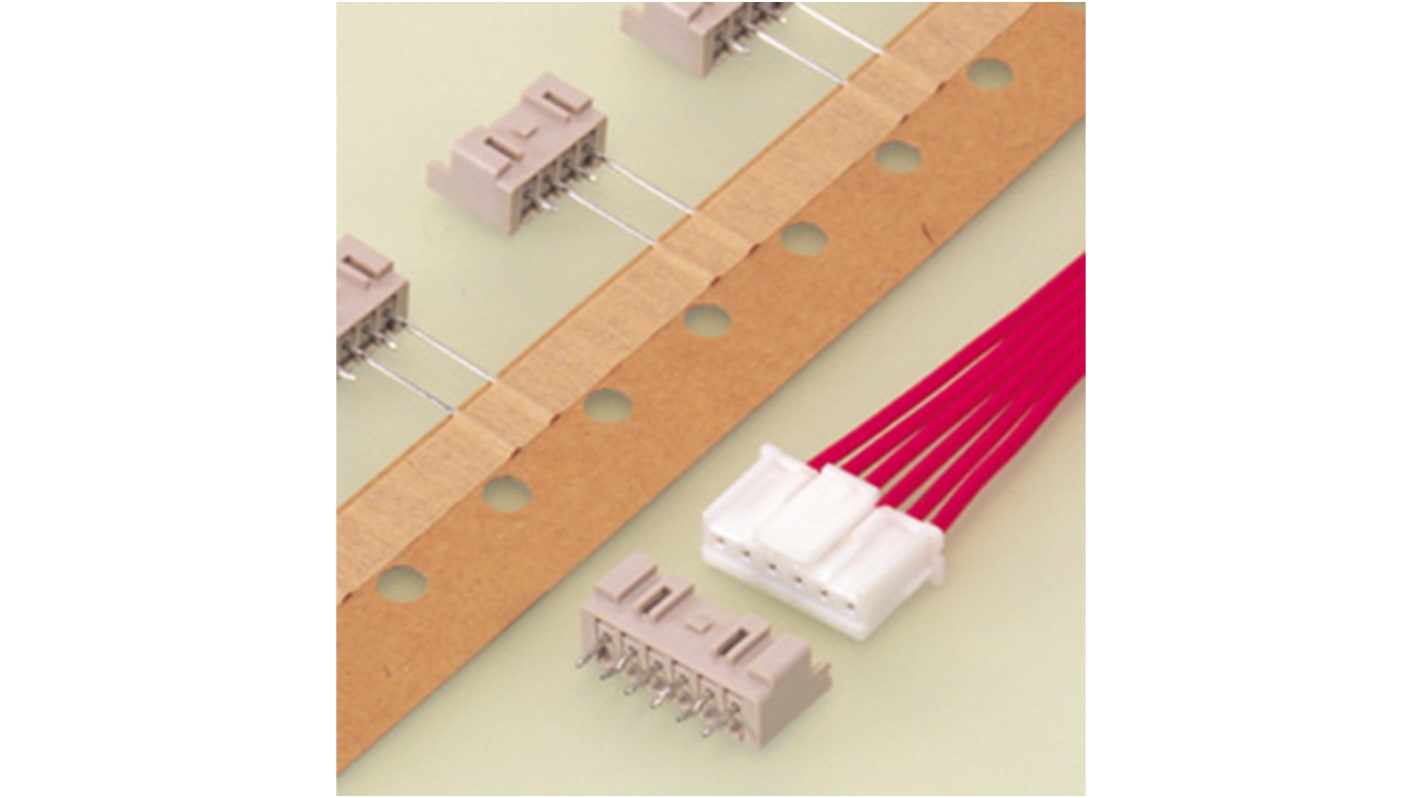

JST XA Series Right Angle Through Hole PCB Header Crimping Tool, 4 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers
Bulk discount available

Subtotal (1 pack of 10 units)*

£8.20

(exc. VAT)

£9.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 110 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 40£0.82£8.20
50 - 90£0.714£7.14
100 - 240£0.633£6.33
250 - 490£0.567£5.67
500 +£0.513£5.13

*price indicative

RS Stock No.:
175-4878
Mfr. Part No.:
S04B-XASS-1N-BN (LF)(SN)
Brand:
JST
Find similar products by selecting one or more attributes.
Select all

Brand

JST

Series

XA

Product Type

PCB Header Crimping Tool

Current

3A

Pitch

2.5mm

Housing Material

Polyamide

Number of Contacts

4

Number of Rows

1

Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Mount Type

Through Hole

Connector System

Wire-to-Board

Contact Plating

Gold

Contact Material

Copper Alloy

Row Pitch

2.5mm

Termination Type

Solder

Minimum Operating Temperature

-25°C

Contact Gender

Male

Maximum Operating Temperature

85°C

Tail Pin Length

3.4mm

Standards/Approvals

No

Voltage

250 V

COO (Country of Origin):
JP
The JST S04B-XASS-1N-BN (LF)(SN) is a XA series, 4 way, 2. 5 mm pitch, side entry type through hole shrouded header disconnectable crimp style connector (Wire-to-Board type connector).

Secure locking device

Solder crack preventive material

Low insertion force

Insertion guide mechanism

Applicable to automatic board mounting machine

Polarizing Boss
