Hirose DF13 Series Straight Surface PCB Header, 20 Contact(s), 1.25 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers
Bulk discount available

Subtotal (1 pack of 5 units)*

£5.87

(exc. VAT)

£7.045

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 15 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 20£1.174£5.87
25 - 45£1.072£5.36
50 +£1.012£5.06

*price indicative

RS Stock No.:
175-0641
Mfr. Part No.:
DF13EA-20DP-1.25V(65)
Brand:
Hirose
Find similar products by selecting one or more attributes.
Select all

Brand

Hirose

Series

DF13

Product Type

PCB Header

Pitch

1.25mm

Current

1A

Number of Contacts

20

Housing Material

Polyamide

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

Board-to-Cable

Mount Type

Surface

Contact Plating

Gold

Contact Material

Brass

Row Pitch

1.25mm

Minimum Operating Temperature

-35°C

Termination Type

Solder

Maximum Operating Temperature

85°C

Tail Pin Length

1.7mm

Mating Pin Length

1.7mm

Standards/Approvals

No

Voltage

500 V

COO (Country of Origin):
JP

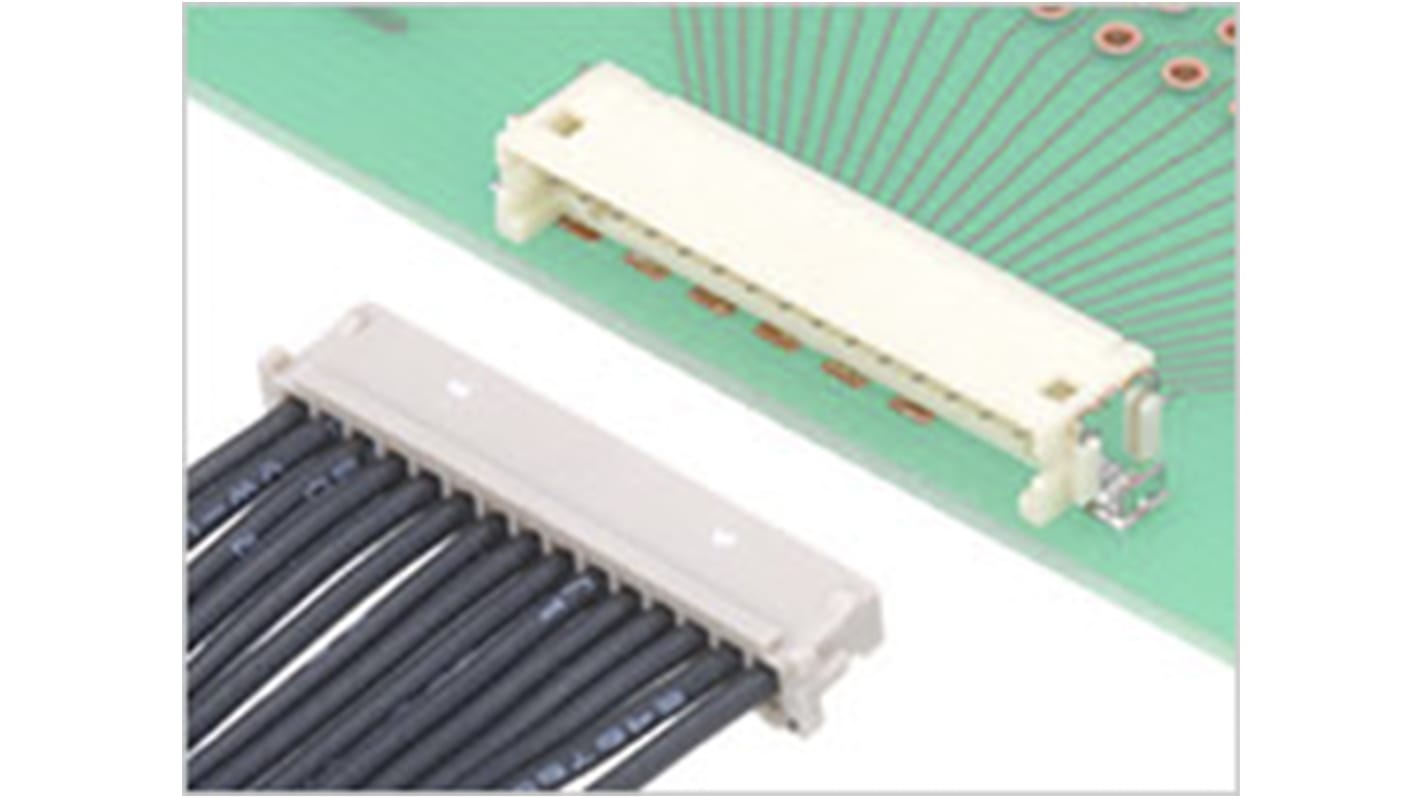

Hirose PCB Header


The Hirose PCB DF13 series surface mount straight PCB header has 20-way contacts. It has a voltage rating of 150VAC and a current rating of 1A. The socket has tin-plated brass contacts.

Features and Benefits


• Operating temperature ranges between -35°C and 85°C

• Pitch size is 1.25mm

• Scoop-proof box structure

• Shrouded header

• Single row

• Termination method is solder

Applications


• Note PCs

• Video cameras
