Hirose DF13 Series Straight Surface PCB Header, 20 Contact(s), 1.25 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers
Bulk discount available

Subtotal (1 tube of 26 units)*

£23.868

(exc. VAT)

£28.652

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
26 - 104£0.918£23.87
130 - 234£0.855£22.23
260 - 624£0.80£20.80
650 +£0.736£19.14

*price indicative

RS Stock No.:
175-0632
Mfr. Part No.:
DF13EA-20DP-1.25V(65)
Brand:
Hirose
Find similar products by selecting one or more attributes.
Select all

Brand

Hirose

Product Type

PCB Header

Series

DF13

Current

1A

Pitch

1.25mm

Housing Material

Polyamide

Number of Contacts

20

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

Board-to-Cable

Mount Type

Surface

Contact Plating

Gold

Contact Material

Brass

Termination Type

Solder

Row Pitch

1.25mm

Minimum Operating Temperature

-35°C

Maximum Operating Temperature

85°C

Tail Pin Length

1.7mm

Mating Pin Length

1.7mm

Standards/Approvals

No

Voltage

500 V

COO (Country of Origin):
JP

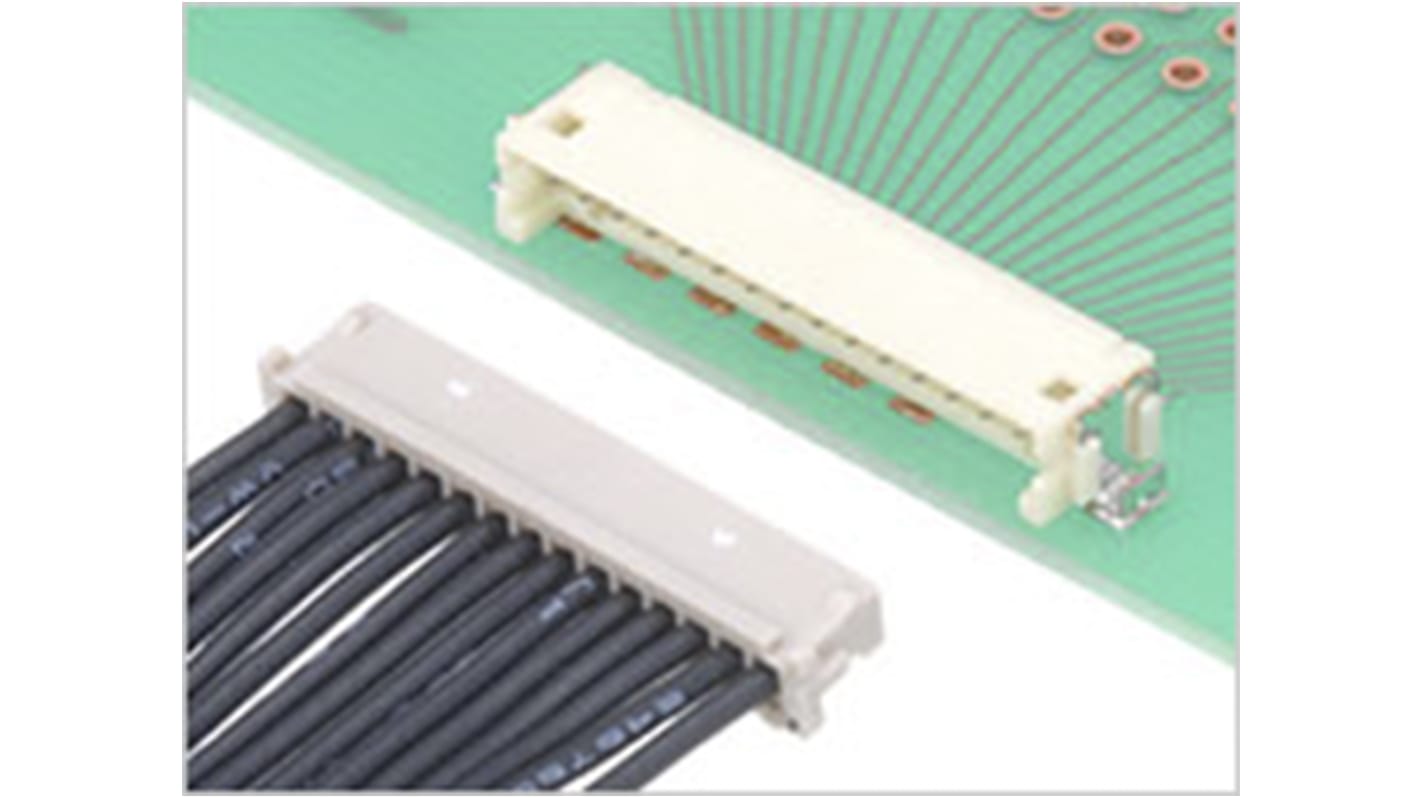

Hirose PCB Header


The Hirose PCB DF13 series surface mount straight PCB header has 20-way contacts. It has a voltage rating of 150VAC and a current rating of 1A. The socket has tin-plated brass contacts.

Features and Benefits


• Operating temperature ranges between -35°C and 85°C

• Pitch size is 1.25mm

• Scoop-proof box structure

• Shrouded header

• Single row

• Termination method is solder

Applications


• Note PCs

• Video cameras
