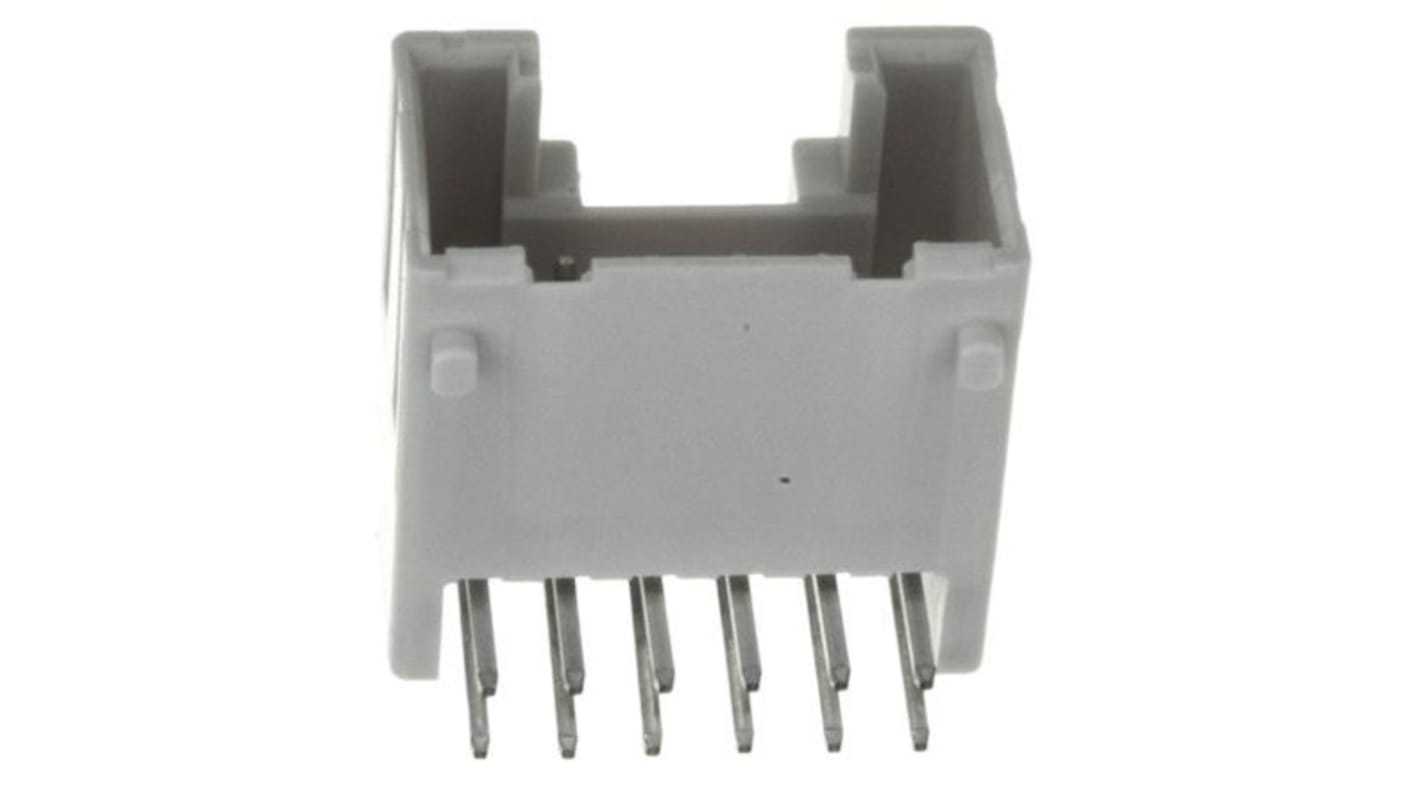

JST PUD Series Right Angle Through Hole PCB Header, 14 Contact(s), 2.0mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 161-7842
- Mfr. Part No.:
- S14B-PUDSS-1(LF)(SN)
- Brand:
- JST
Available to back order for despatch 26/11/2024
Added
Price Each (In a Bag of 1980)
£0.323
(exc. VAT)
£0.388
(inc. VAT)
| Units | Per unit | Per Bag* |
| 1980 + | £0.323 | £639.54 |
| *price indicative | ||
- RS Stock No.:
- 161-7842
- Mfr. Part No.:
- S14B-PUDSS-1(LF)(SN)
- Brand:
- JST
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
JST 2.0mm PUD Series PCB Header Connectors
PUD Series 2.0mm pitch wire-to-board PCB header connectors with a low insertion force and a compact high density double row design for a stable contact performance in high vibration environments. These PUD 2.0mm PCB header connectors feature a locking mechanism which produces an audible click when the header and socket are mated and are available as through hole mounting with a vertical mounting orientation with or without a PCB locating boss (BxxB-PUDSS = without boss, BxxB-PUDSS-1 = with boss) or a right angle mounting orientation with a mounting boss. SMT versions are also available.
JST 2.00mm PUD Series Wire-to-Board Connectors
Specifications
Attribute | Value |
|---|---|
| Series | PUD |
| Pitch | 2.0mm |
| Number of Contacts | 14 |
| Number of Rows | 2 |
| Body Orientation | Right Angle |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Through Hole |
| Connector System | Wire to Board |
| Termination Method | Solder |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current Rating | 3.0A |
| Voltage Rating | 250.0 V |
