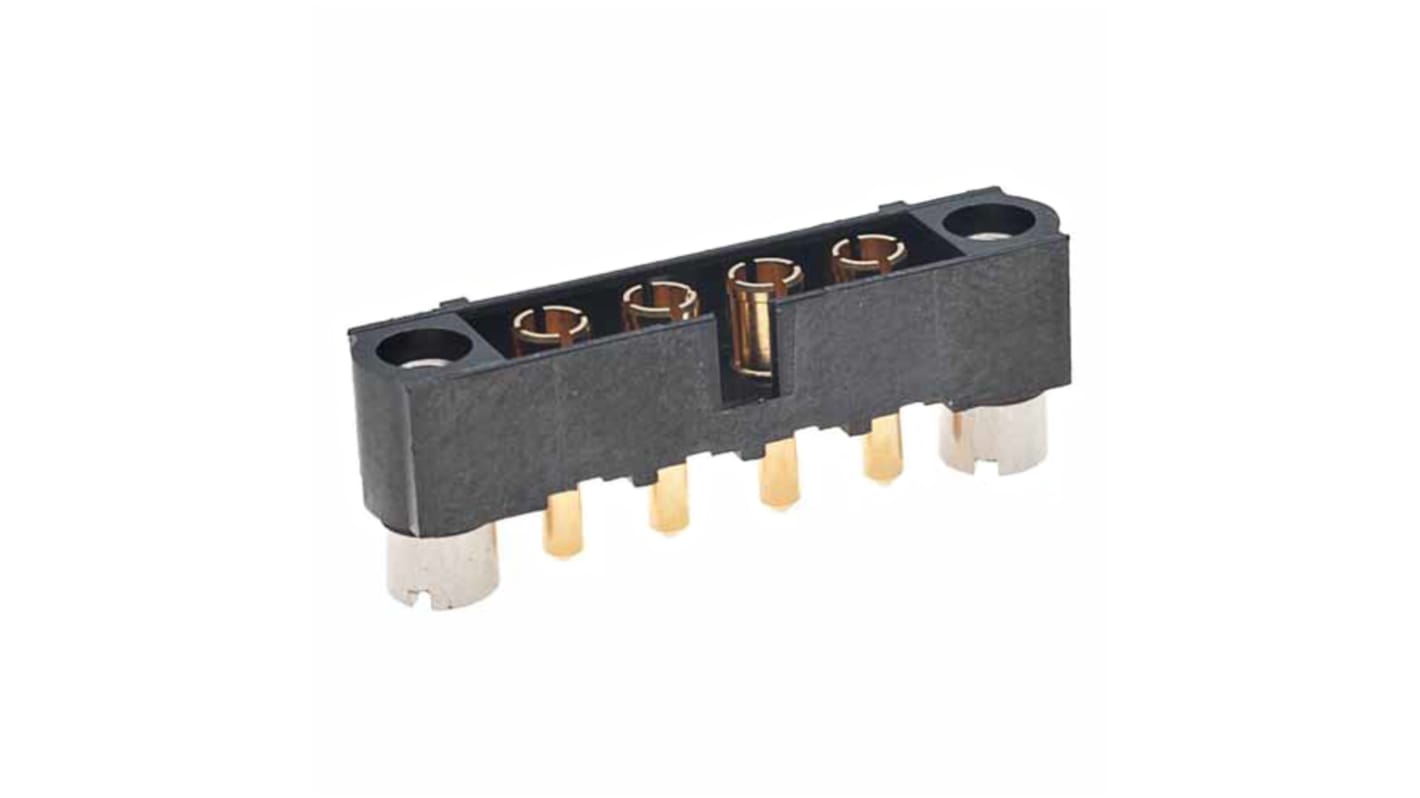

HARWIN Datamate Mix-Tek Series Straight Through Hole PCB Header, 4 Contact(s), 4 mm Pitch, 1 Row, Shrouded
- RS Stock No.:
- 161-3542
- Mfr. Part No.:
- M80-5000000M2-04-331-00-000
- Brand:
- HARWIN
Bulk discount available
Subtotal (1 unit)*
£29.16
(exc. VAT)
£34.99
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £29.16 |
| 10 - 49 | £26.86 |
| 50 - 99 | £24.87 |
| 100 - 249 | £23.18 |
| 250 + | £21.69 |
*price indicative
- RS Stock No.:
- 161-3542
- Mfr. Part No.:
- M80-5000000M2-04-331-00-000
- Brand:
- HARWIN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARWIN | |
| Product Type | PCB Header | |
| Series | Datamate Mix-Tek | |
| Current | 20A | |
| Pitch | 4mm | |
| Number of Contacts | 4 | |
| Housing Material | Polyphenylene Sulphide | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | Board-to-Board, Wire-to-Board | |
| Contact Material | Beryllium Copper Alloy | |
| Contact Plating | Gold | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Row Pitch | 4mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 125°C | |
| Tail Pin Length | 3.5mm | |
| Standards/Approvals | No | |
| Voltage | 1.2 kV | |
| Select all | ||
|---|---|---|
Brand HARWIN | ||
Product Type PCB Header | ||
Series Datamate Mix-Tek | ||
Current 20A | ||
Pitch 4mm | ||
Number of Contacts 4 | ||
Housing Material Polyphenylene Sulphide | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System Board-to-Board, Wire-to-Board | ||
Contact Material Beryllium Copper Alloy | ||
Contact Plating Gold | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Row Pitch 4mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 125°C | ||
Tail Pin Length 3.5mm | ||
Standards/Approvals No | ||
Voltage 1.2 kV | ||
- COO (Country of Origin):
- GB
Jackscrews + 3.5mm board mount (with slotted nuts), 4 x power contacts assembled for vertical PCB connection.
3.5mm length PC Tail.
2.00mm Pitch High-Reliability Datamate connector system.
