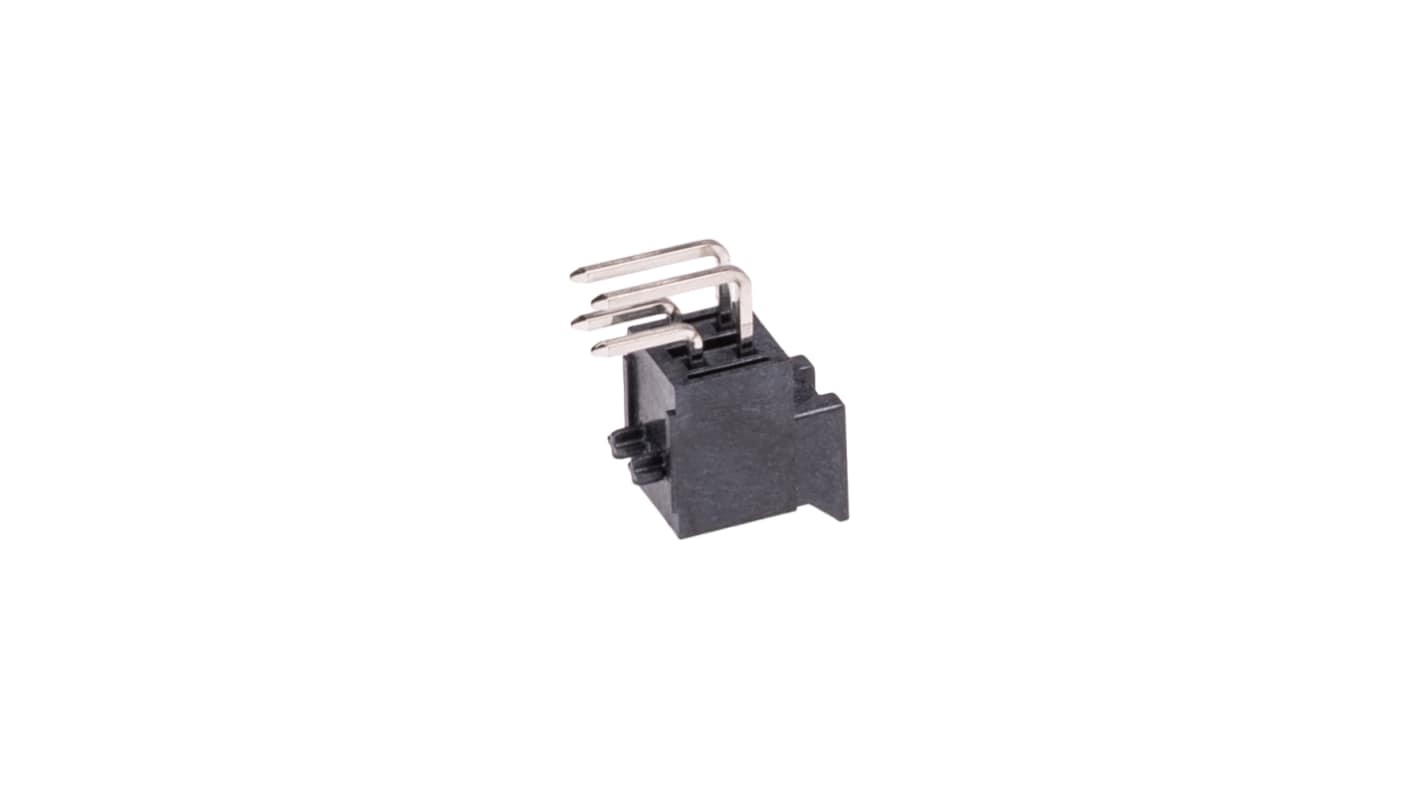

Molex Nano-Fit Series Right Angle Through Hole PCB Header, 4 Contact(s), 2.5mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 122-5088
- Mfr. Part No.:
- 105314-1204
- Brand:
- Molex
Subtotal (1 pack of 10 units)*
£5.95
(exc. VAT)
£7.14
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 40 left, ready to ship
- Final 1,230 unit(s) shipping from 27 October 2025
Units | Per unit | Per Pack* |
---|---|---|
10 + | £0.595 | £5.95 |
*price indicative
- RS Stock No.:
- 122-5088
- Mfr. Part No.:
- 105314-1204
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Series | Nano-Fit | |
Pitch | 2.5mm | |
Number of Contacts | 4 | |
Number of Rows | 2 | |
Body Orientation | Right Angle | |
Shrouded/Unshrouded | Shrouded | |
Connector System | Wire to Board | |
Mounting Type | Through Hole | |
Termination Method | Through Hole | |
Contact Material | Brass | |
Contact Plating | Gold | |
Current Rating | 6.5A | |
Series Number | 105314 | |
Voltage Rating | 250 V ac/dc | |
Select all | ||
---|---|---|
Brand Molex | ||
Series Nano-Fit | ||
Pitch 2.5mm | ||
Number of Contacts 4 | ||
Number of Rows 2 | ||
Body Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire to Board | ||
Mounting Type Through Hole | ||
Termination Method Through Hole | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Current Rating 6.5A | ||
Series Number 105314 | ||
Voltage Rating 250 V ac/dc | ||
- COO (Country of Origin):
- CN
Molex Nano-Fit Series PCB Header, 6.5A Current Rating, 2.5mm Pitch - 105314-1204
This PCB header facilitates efficient connectivity in a range of electronic applications. It functions as a dependable wire-to-board connector, providing secure connections with a robust shrouded design and right-angle orientation. Its compact size and innovative features make it suitable for various industries, including telecommunications, automotive, and industrial automation.
Features & Benefits
• Low insertion force reduces operator fatigue during assembly
• Positive-lock mechanism prevents unintentional disconnection
• Compact size saves significant PCB space
• Positive-lock mechanism prevents unintentional disconnection
• Compact size saves significant PCB space
Applications
• Used in refrigeration and laundry equipment
• Utilised in telecom servers and networking hubs
• Found in automotive interior lighting systems
• Ideal for healthcare IT and patient care equipment
• Utilised in telecom servers and networking hubs
• Found in automotive interior lighting systems
• Ideal for healthcare IT and patient care equipment
What is the maximum voltage rating for it?
The maximum voltage rating is 250V AC/DC, appropriate for a variety of applications.
How does the optional TPA feature improve functionality?
The optional TPA retainer ensures terminals are held securely, minimising the risk of backout during use.
Can it withstand high-temperature environments?
This component operates effectively within a temperature range of -40°C to +115°C, making it versatile for many settings.
What PCB thicknesses are compatible?
It accommodates PCB thicknesses of 1.60mm and 2.40mm, providing flexibility in design.
How is the assembly process affected by its low mate force?
The ultra-low mate force reduces operator strain, enhancing productivity by simplifying the mating process.
