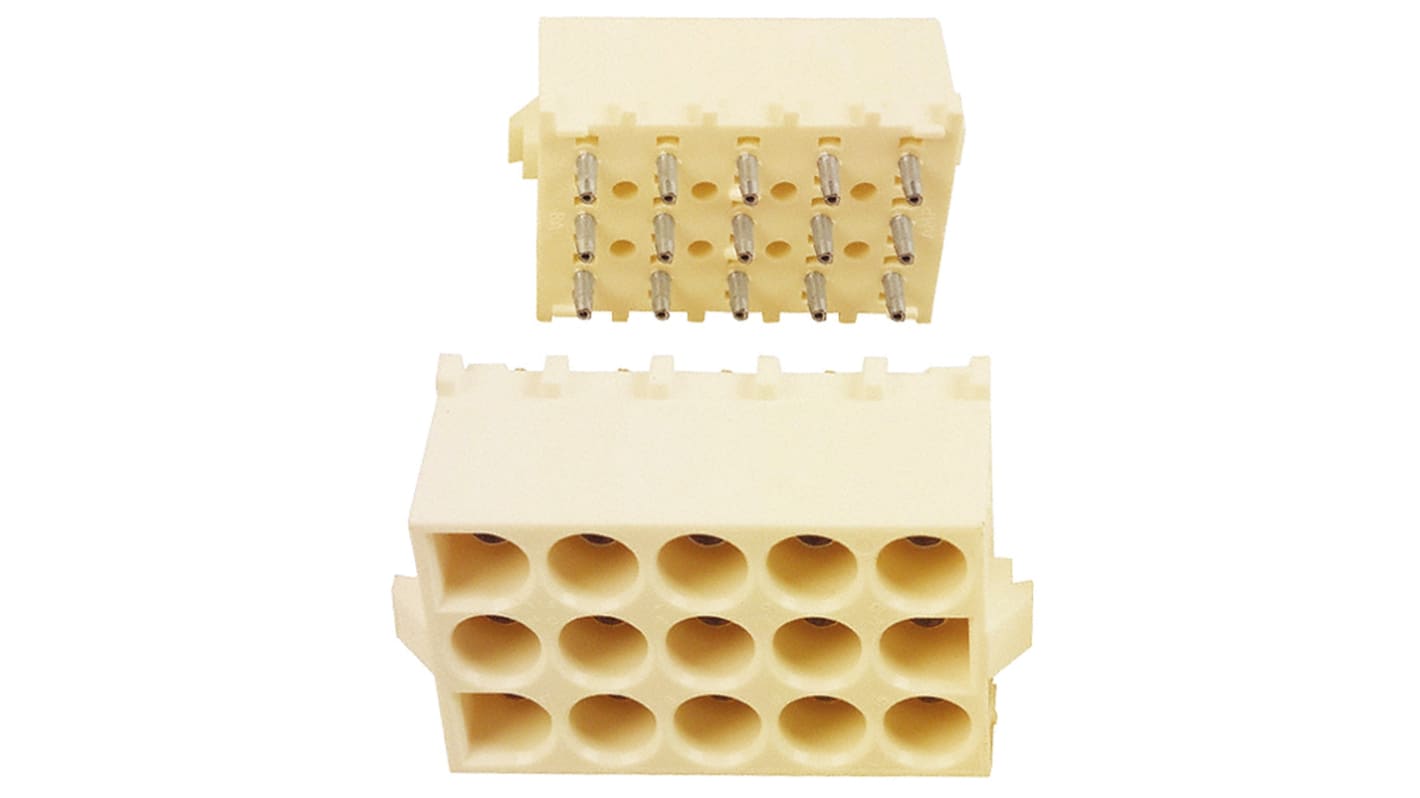

TE Connectivity Universal MATE-N-LOK Series Straight Through Hole PCB Header, 15 Contact(s), 6.35mm Pitch, 3 Row(s),

RS Stock No.:: 849-063
Mfr. Part No.:: 350434-1
Brand:: TE Connectivity

TE Connectivity Universal MATE-N-LOK Series Straight Through Hole PCB Header, 15 Contact(s), 6.35mm Pitch, 3 Row(s),

9 In stock for delivery within 1 working days

Added

Price Each

£1.46

(exc. VAT)

£1.75

(inc. VAT)

Units	Per unit
1 - 19	£1.46
20 - 74	£1.31
75 - 299	£1.24
300 - 599	£1.03
600 +	£1.01

RS Stock No.:: 849-063
Mfr. Part No.:: 350434-1
Brand:: TE Connectivity

Technical Reference

Legislation and Compliance

Product Details

TE Connectivity Universal MATE-N-LOK PCB Vertical Pin Headers

A range of Universal MATE-N-LOK Vertical Pin Headers in single row and matrix formats to mount with PCB free plug housings.

Solder tail length 4.4mm (except 720-2073 which has a 5.97 mm tail length)
PCB hole dia. 1.78mm
*Excludes stand-off of 0.76 mm

Approvals

UL, CSA

TE Connectivity Universal MATE-N-LOK™ Range

Specifications

Attribute	Value
Series	Universal MATE-N-LOK
Pitch	6.35mm
Number of Contacts	15
Number of Rows	3
Body Orientation	Straight
Shrouded/Unshrouded	Shrouded
Mounting Type	Through Hole
Connector System	Wire to Board
Termination Method	Solder
Contact Material	Phosphor Bronze
Contact Plating	Tin
Current Rating	19.0A
Voltage Rating	600.0 V
