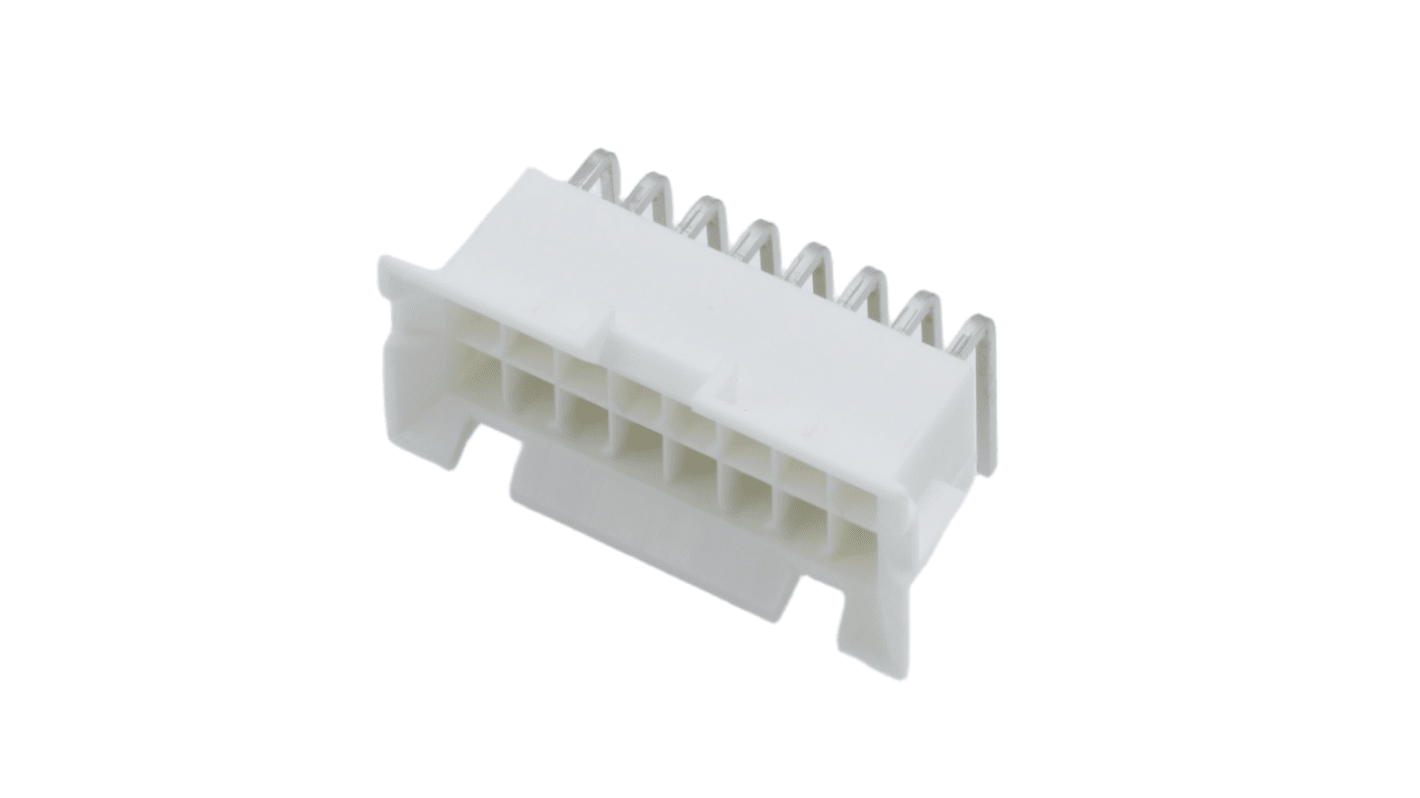

Molex 42404 Series Right Angle Through Hole PCB Header, 16 Contact(s), 4.2 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 685-088
- Mfr. Part No.:
- 15-24-9164
- Brand:
- Molex
Subtotal (1 tray of 80 units)*
£191.30
(exc. VAT)
£229.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £191.30 | £2.391 |
*price indicative
- RS Stock No.:
- 685-088
- Mfr. Part No.:
- 15-24-9164
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 42404 | |
| Product Type | PCB Header | |
| Pitch | 4.2mm | |
| Current | 13A | |
| Housing Material | Nylon | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 4.2mm | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.56mm | |
| Standards/Approvals | RoHS | |
| Voltage | 600 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 42404 | ||
Product Type PCB Header | ||
Pitch 4.2mm | ||
Current 13A | ||
Housing Material Nylon | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 4.2mm | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.56mm | ||
Standards/Approvals RoHS | ||
Voltage 600 V | ||
- COO (Country of Origin):
- MX
The Molex mini-fit BMI header designed for robust connections in PCB applications, featuring a dual-row, right-angle design with a snap-in plastic peg for secure mounting. Ideal for board to board and wire to board configurations, this component accommodates up to 16 circuits, ensuring reliable performance for power and signal distribution. Constructed from high-quality PA polyamide nylon, it offers high durability and meets stringent flammability standards. With a maximum current rating of 13A per circuit and a voltage capacity of 600V, this header is engineered for efficiency and compliance with various environmental regulations, making it an excellent choice for a range of electronic devices.
Dual-row design enables efficient use of space on PCB
Right-angle orientation facilitates easy installation and connection
Snap-in plastic peg ensures a secure fit on the PCB
Constructed from durable PA polyamide nylon for long-lasting performance
Compliant with UL 94V-0 flammability standards for safety
Low-halogen design aligns with modern environmental compliance standards
Package includes comprehensive compatibility with specific receptacle headers
