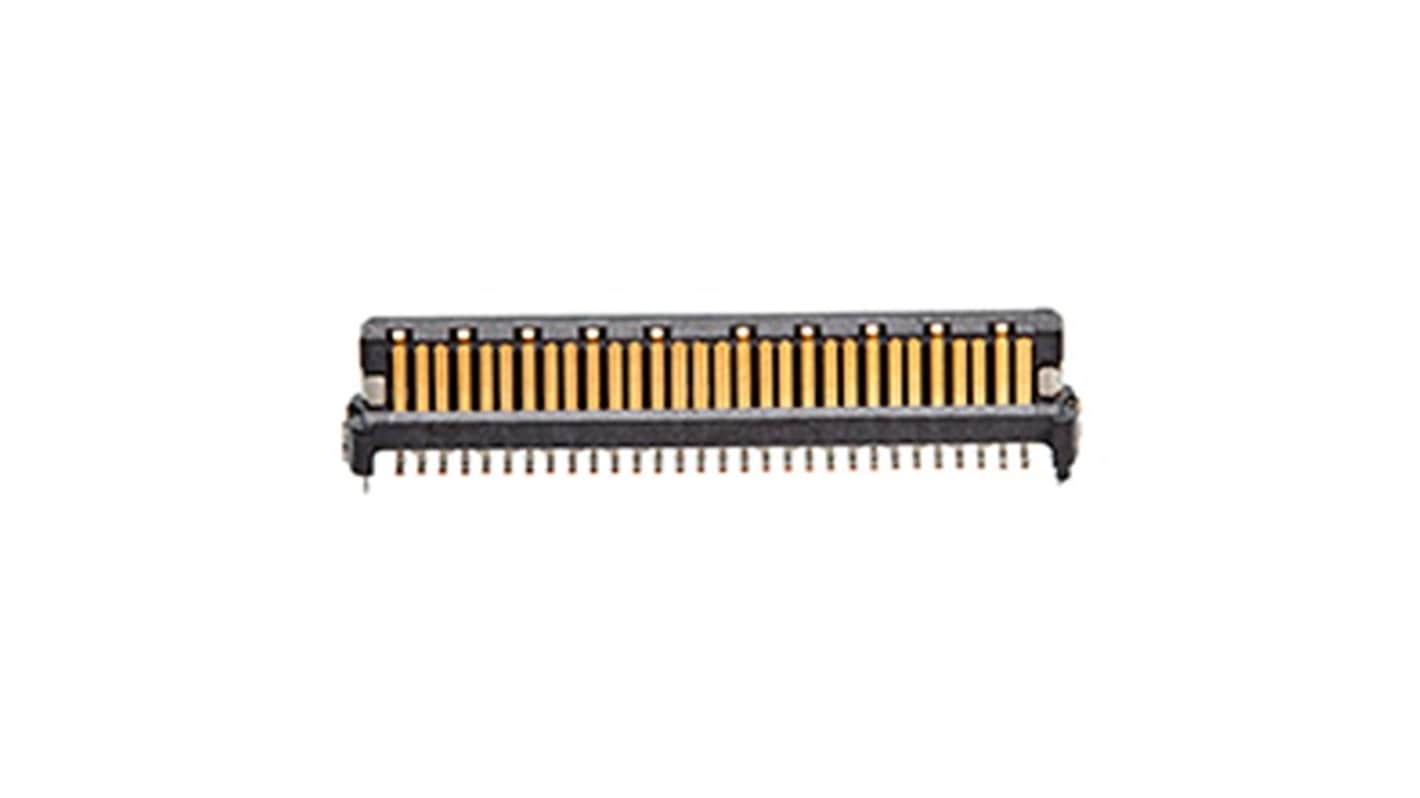

Molex 171446 Series Vertical PCB PCB Header, 60 Contact(s), 0.8 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 684-746
- Mfr. Part No.:
- 171446-1114
- Brand:
- Molex
Subtotal (1 reel of 2000 units)*
£18,180.16
(exc. VAT)
£21,816.19
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £18,180.16 | £9.09 |
*price indicative
- RS Stock No.:
- 684-746
- Mfr. Part No.:
- 171446-1114
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 171446 | |
| Product Type | PCB Header | |
| Pitch | 0.8mm | |
| Number of Contacts | 60 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | SpeedStack Mezzanine | |
| Mount Type | PCB | |
| Contact Plating | Gold | |
| Contact Material | Copper Alloy | |
| Termination Type | Surface Mount | |
| Row Pitch | 0.8mm | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | RoHS | |
| Voltage | 29.9 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 171446 | ||
Product Type PCB Header | ||
Pitch 0.8mm | ||
Number of Contacts 60 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System SpeedStack Mezzanine | ||
Mount Type PCB | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Termination Type Surface Mount | ||
Row Pitch 0.8mm | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals RoHS | ||
Voltage 29.9 V | ||
- COO (Country of Origin):
- CN
The Molex SpeedStack Vertical Plug is a high-quality PCB header designed for efficient mezzanine and board to board connectivity. Featuring a compact 0.80mm pitch and a sleek vertical orientation this connector is engineered to accommodate up to 60 circuits ensuring a reliable and stable connection. With a durable construction from copper alloy and liquid crystal polymer it is rated for a maximum current of 0.8A and a voltage of 5V AC/DC making it ideal for various electronic applications. Its low-halogen material complies with stringent environmental standards ensuring a responsible choice for modern electronics. This connector's superior design is set to enhance performance while maintaining an active status in today’s competitive landscape.
Designed for board to board and mezzanine applications which enabling versatile connectivity options
Vertical orientation offers space-saving advantages while maintaining effective circuit density
Constructed from durable copper alloy and liquid crystal polymer for longevity
Low-halogen certification aligns with modern sustainability practices
Complies with EU RoHS standards signalling environmental responsibility
Packed in embossed tape on reel for efficient handling and storage
Mates seamlessly with SpeedStack vertical receptacles for integrated solutions
