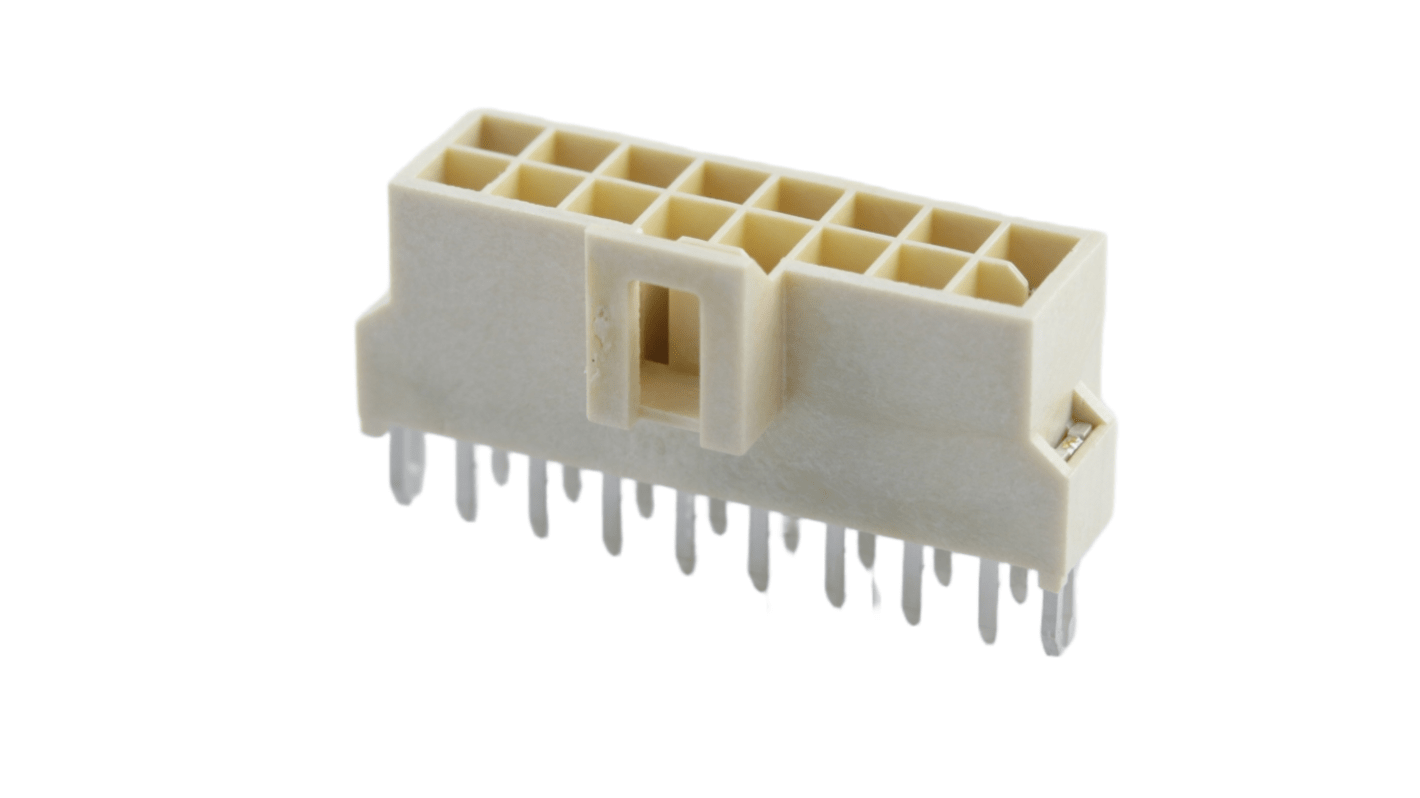

Molex 105312 Series Vertical Through Hole PCB Header, 16 Contact(s), 2.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 684-592
- Mfr. Part No.:
- 105312-2216
- Brand:
- Molex
Subtotal (1 tray of 60 units)*
£182.50
(exc. VAT)
£219.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £182.50 | £3.042 |
*price indicative
- RS Stock No.:
- 684-592
- Mfr. Part No.:
- 105312-2216
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 105312 | |
| Product Type | PCB Header | |
| Current | 8A | |
| Pitch | 2.5mm | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2.5mm | |
| Termination Type | Solder | |
| Tail Pin Length | 3.2mm | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 105312 | ||
Product Type PCB Header | ||
Current 8A | ||
Pitch 2.5mm | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2.5mm | ||
Termination Type Solder | ||
Tail Pin Length 3.2mm | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- CN
The Molex Nano-Fit Vertical Header is engineered for robust high-performance wiring applications integrating precision with reliability. Designed with a 2.50mm pitch this dual-row connector accommodates up to 16 circuits ensuring compatibility with a wide range of wire to board assemblies. Its through-hole termination style promotes secure PCB attachment while the natural liquid crystal polymer construction delivers exceptional durability and heat resistance. The header is also glow-wire capable making it ideal for applications where fire safety is paramount. Its gold plating ensures excellent conductivity adding an extra layer of reliability to power connections.
Compact dual-row design optimises space utilisation on PCBs
Glow-wire capable meeting stringent safety standards for temperature resilience
Durable brass metal contacts with gold plating enhance performance longevity
Optimised for applications with up to 8.0A current handling capacity per contact
Vertical orientation facilitates efficient wire management and access
Includes PCB retention features for secure component positioning
Compliance with multiple industry standards ensures product integrity and trust
