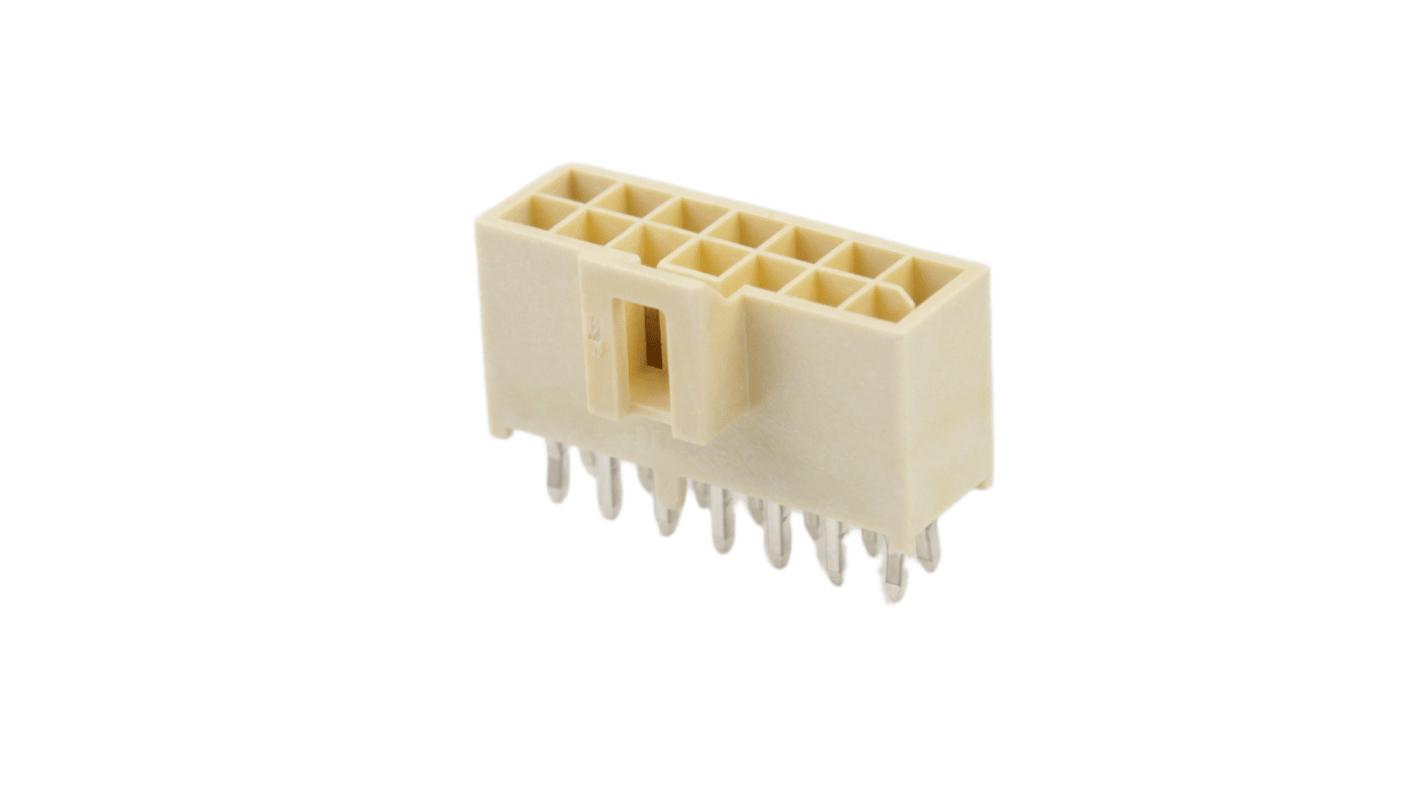

Molex 105310 Series Vertical Through Hole PCB Header, 14 Contact(s), 2.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 684-587
- Mfr. Part No.:
- 105310-2314
- Brand:
- Molex
Subtotal (1 tray of 50 units)*
£196.04
(exc. VAT)
£235.25
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £196.04 | £3.921 |
*price indicative
- RS Stock No.:
- 684-587
- Mfr. Part No.:
- 105310-2314
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | 105310 | |
| Current | 7.5A | |
| Pitch | 2.5mm | |
| Number of Contacts | 14 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2.5mm | |
| Tail Pin Length | 3.2mm | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series 105310 | ||
Current 7.5A | ||
Pitch 2.5mm | ||
Number of Contacts 14 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2.5mm | ||
Tail Pin Length 3.2mm | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- CN
The Molex nano-fit vertical header designed to provide a reliable and efficient connection for power and wire to board applications. With its robust construction and advanced features this 14-circuit connector delivers optimal performance and ease of use. Its through-hole design ensures secure attachment to the PCB while the kinked pins facilitate stable mating with compatible receptacles. This product is not only engineered for durability—withstanding up to 50 mating cycles—but also meets strict compliance standards for electrical and environmental safety making it an ideal choice for various electronic applications.
Glow-wire capable which ensuring robust safety standards in high-temperature environments
Precision manufacturing includes a 0.762μm minimum gold plating for reliable conductivity
Constructed with liquid crystal polymer for enhanced durability and heat resistance
Vertical orientation optimises space on the PCB while maintaining accessibility
Compatible with multiple nano-fit receptacle housings for flexible connectivity options
Tray packaging type facilitates efficient handling and storage during production
