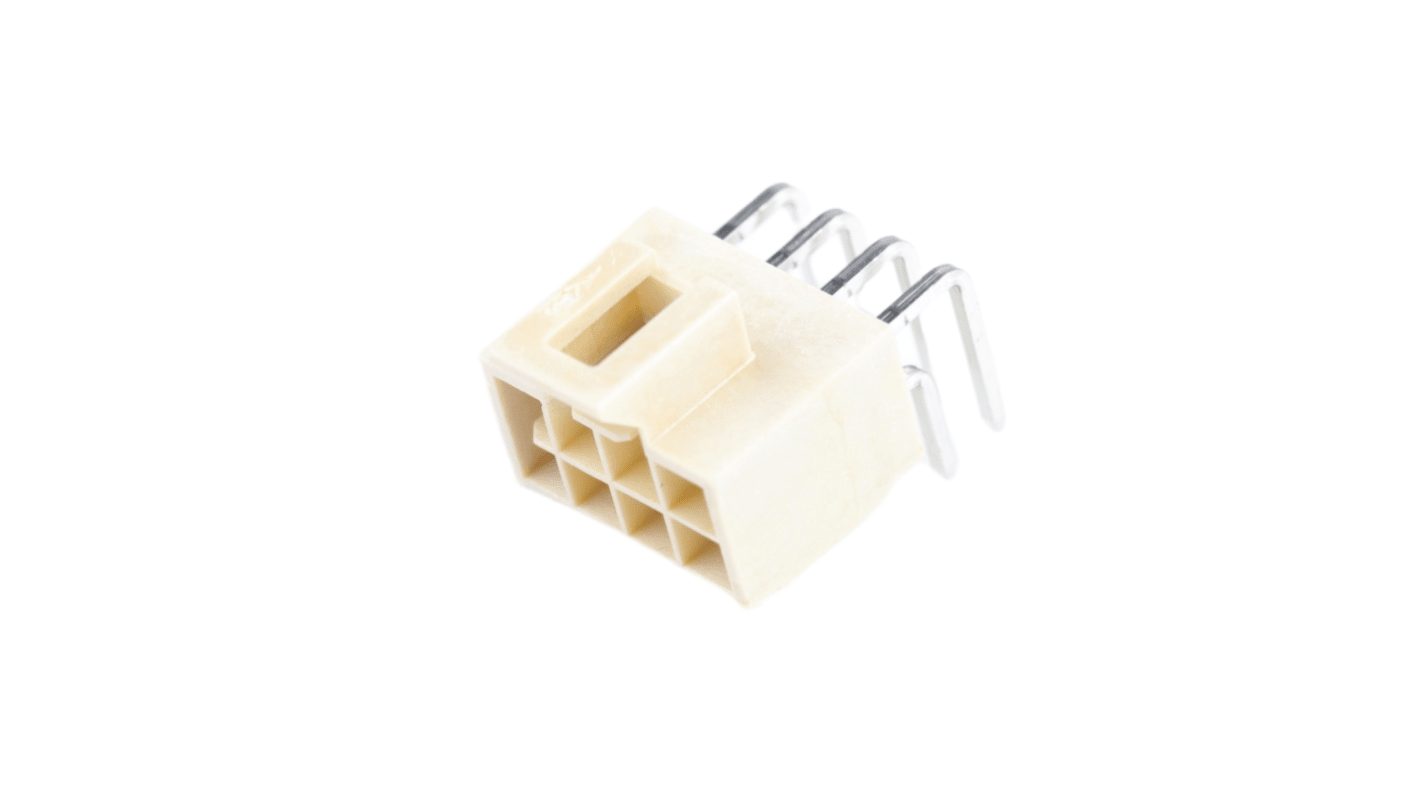

Molex 105314 Series Right Angle PCB Mount PCB Header, 8 Contact(s), 2.5mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 tray of 80 units)*

£250.37

(exc. VAT)

£300.44

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s)
Per Tray
Per unit*
1 +£250.37£3.13

*price indicative

RS Stock No.:
684-550
Mfr. Part No.:
105314-2308
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Series

105314

Pitch

2.5mm

Number of Contacts

8

Number of Rows

2

Body Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Mounting Type

PCB Mount

COO (Country of Origin):
CN
The Molex Nano-Fit Right-Angle Header designed for robust power and wire to board applications. Featuring a through-hole termination style and a compact 2.50mm pitch this dual-row connector accommodates eight circuits ensuring reliable connectivity in demanding environments. With low-halogen compliance and advanced material engineering the connector is constructed from durable liquid crystal polymer and brass allowing for a temperature range of -40° to +125°C. This header prioritises compatibility and ease of use with glow-wire capability making it an ideal choice for applications requiring dependable performance and safety standards.

Accommodates eight circuits which enabling versatile connectivity

Constructed from liquid crystal polymer for enhanced durability

Glow-wire capable for added safety in high-temperature applications

Right-angle orientation aids in board space optimisation

Low-halogen status promotes environmentally conscious use

Meets strict compliance for UK and EU standards including RoHS

Compatible with various Nano-Fit receptacle housings for flexible integration
