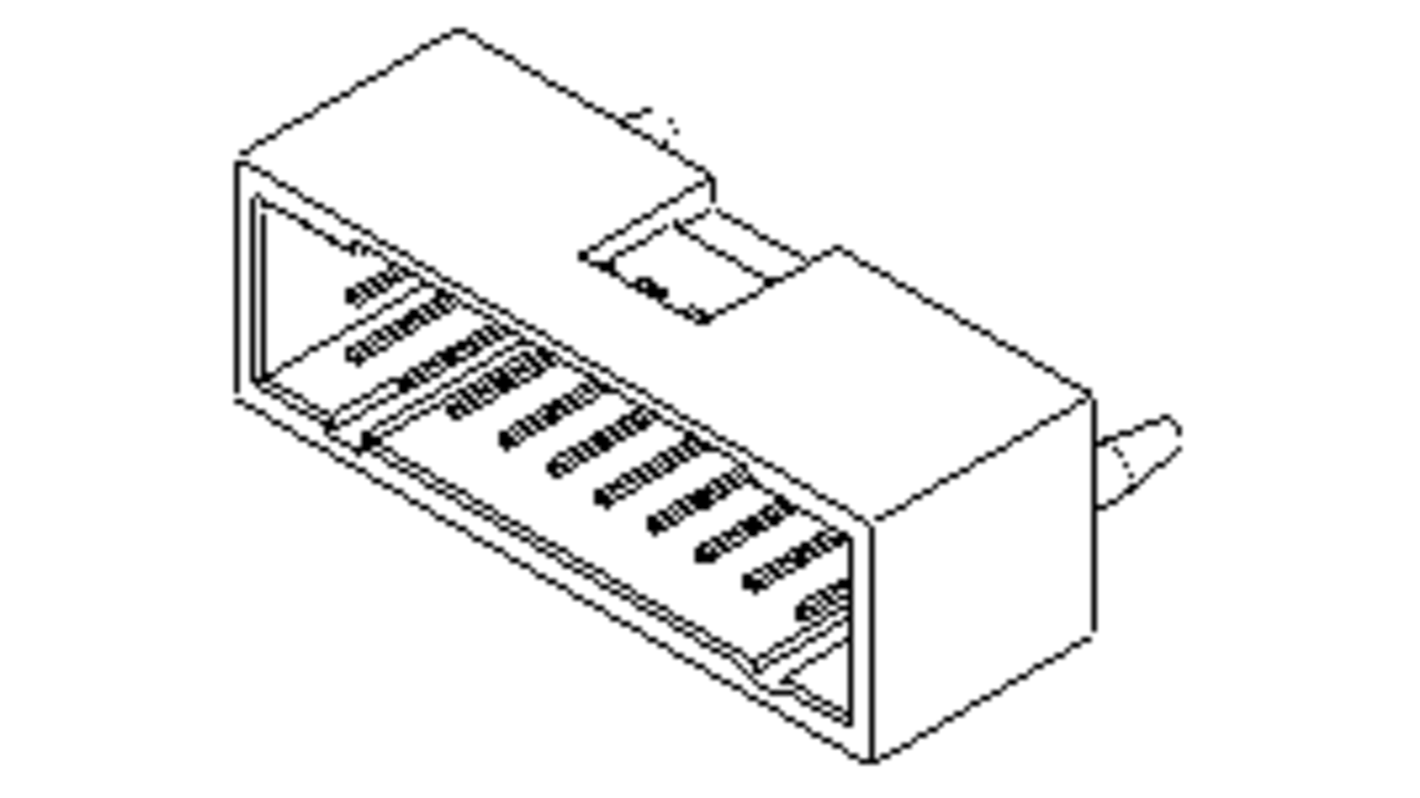

Molex 70568 Series Vertical Through Hole PCB Header, 16 Contact(s), 2.54 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 684-486
- Mfr. Part No.:
- 15-47-7616
- Brand:
- Molex
Subtotal (1 tube of 456 units)*
£986.16
(exc. VAT)
£1,183.39
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £986.16 | £2.163 |
*price indicative
- RS Stock No.:
- 684-486
- Mfr. Part No.:
- 15-47-7616
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 70568 | |
| Product Type | PCB Header | |
| Current | 2.5A | |
| Pitch | 2.54mm | |
| Housing Material | Thermoplastic | |
| Number of Contacts | 16 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Contact Plating | Tin | |
| Contact Material | Brass, Phosphor Bronze | |
| Row Pitch | 2.54mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.3mm | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 70568 | ||
Product Type PCB Header | ||
Current 2.5A | ||
Pitch 2.54mm | ||
Housing Material Thermoplastic | ||
Number of Contacts 16 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Contact Plating Tin | ||
Contact Material Brass, Phosphor Bronze | ||
Row Pitch 2.54mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.3mm | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- MX
The Molex C-Grid header offers a reliable interconnect solution tailored for PCB applications. Designed with a 2.54mm pitch, this dual-row header is ideal for high-temperature environments, featuring robust construction that supports streamlined assembly in various electronic devices. The 16-circuit configuration ensures optimal signal integrity while its through-hole design promotes effective soldering to the PCB. This component is further enhanced with 0.38μm gold selective plating and tin PC tail plating, providing resilience against wear and superior conductivity. Aesthetically crafted in black high-temperature thermoplastic, it marries functionality with visual appeal, making it a top choice for engineers seeking dependable header solutions.
Designed to withstand operating temperatures from -55° to +105°C
Compatible with standard 2.40mm PCB thickness for easy integration
Mates effectively with dual-row profile receptacles for comprehensive connectivity
Incorporates a fully shrouded design for improved protection of contact areas
