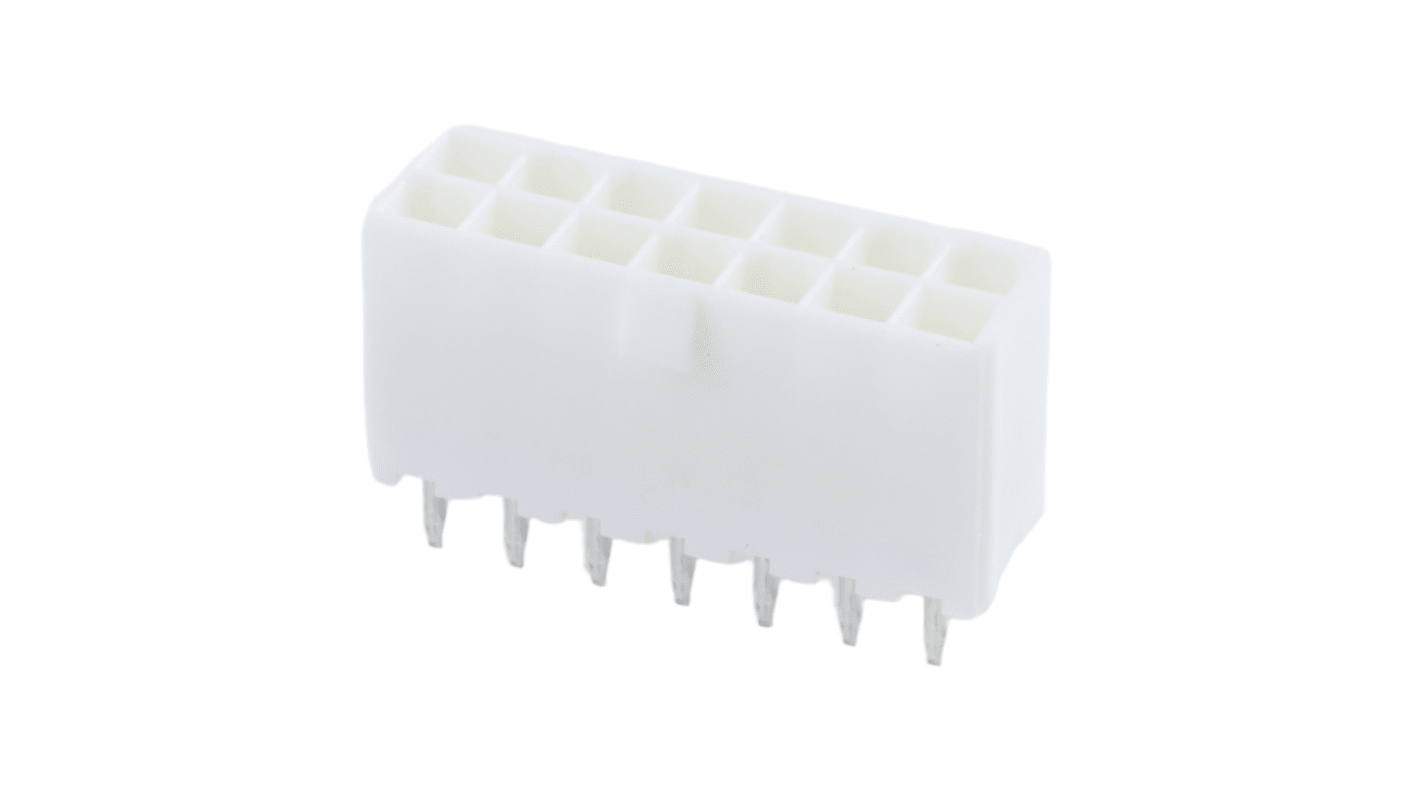

Molex 5569 Series Vertical Through Hole PCB Header, 14 Contact(s), 4.2 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 684-398
- Mfr. Part No.:
- 39-29-6148
- Brand:
- Molex
Subtotal (1 bag of 30 units)*
£194.11
(exc. VAT)
£232.93
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £194.11 | £6.47 |
*price indicative
- RS Stock No.:
- 684-398
- Mfr. Part No.:
- 39-29-6148
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | 5569 | |
| Pitch | 4.2mm | |
| Current | 9A | |
| Number of Contacts | 14 | |
| Housing Material | Nylon | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Row Pitch | 4.2mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Tail Pin Length | 3.5mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Voltage | 600 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series 5569 | ||
Pitch 4.2mm | ||
Current 9A | ||
Number of Contacts 14 | ||
Housing Material Nylon | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Row Pitch 4.2mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Tail Pin Length 3.5mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Voltage 600 V | ||
- COO (Country of Origin):
- MX
The Molex Mini-Fit Jr. Vertical Header designed to facilitate efficient power and wire to board connections in various electronic applications. With a configuration of 14 circuits arranged in a dual row it supports a maximum current of 9.0A and voltage of 600V making it ideal for applications requiring reliable energy transfer. Its robust construction includes gold-plated brass components and natural nylon resin ensuring durability and optimal performance. The header features a secure lock mechanism to ensure a stable connection while its through-hole termination style enhances ease of assembly. This versatile header is perfect for use in conjunction with Mini-Fit female terminals and is suitable for diverse projects where space efficiency and reliability are paramount.
Gold plating on mating surfaces ensures superior conductivity and long-lasting performance
Natural nylon resin construction enhances durability and thermal resistance
Vertical orientation allows for compact installation in tight spaces
Locking mechanism provides secure mating to prevent accidental disconnections
Designed for use with standard Mini-Fit female terminals which ensuring compatibility
Complies with key industry standards and regulations for enhanced safety and reliability
