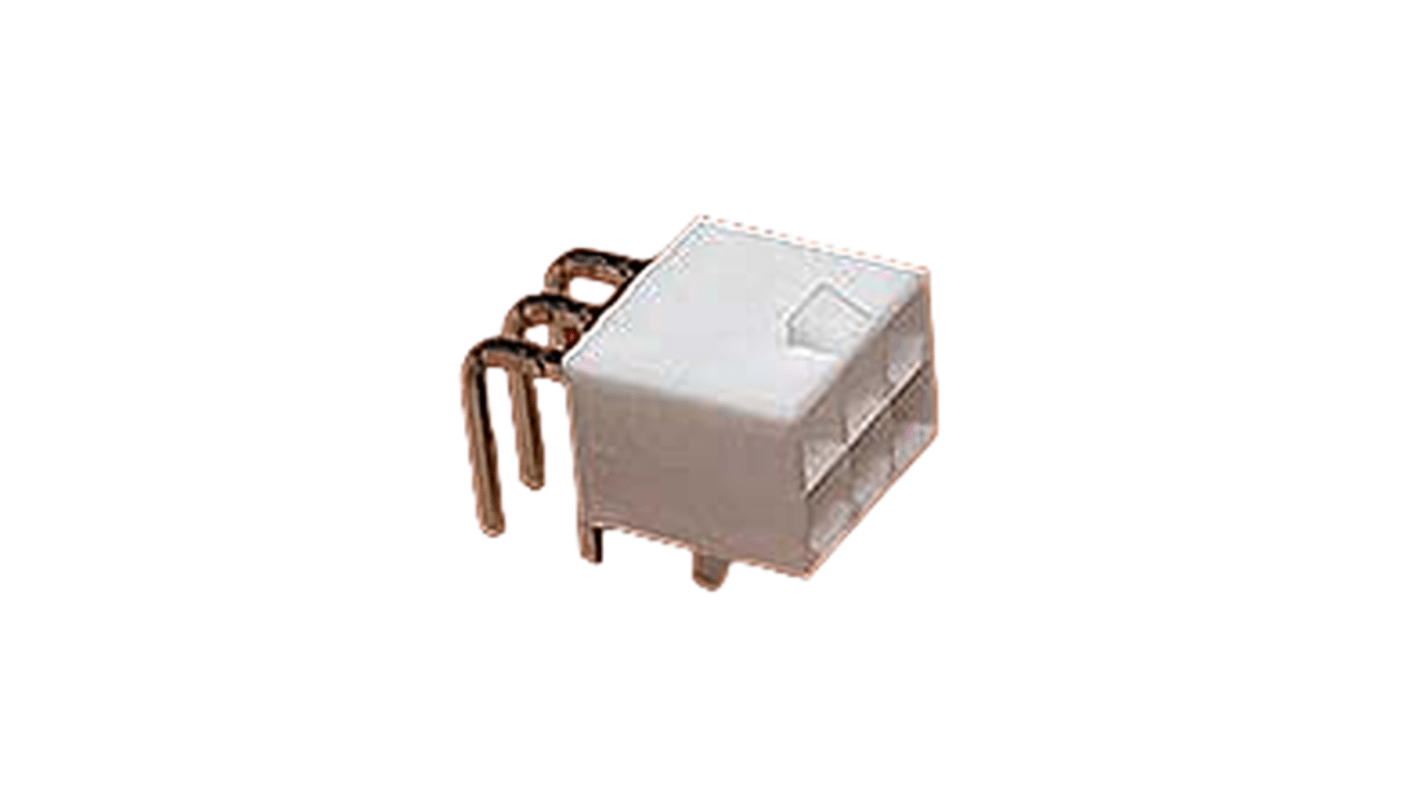

Molex 5569 Series Right Angle PCB PCB Header, 4 Contact(s), 4.2 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 684-396
- Mfr. Part No.:
- 39-29-5043
- Brand:
- Molex
Subtotal (1 bag of 100 units)*
£203.96
(exc. VAT)
£244.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £203.96 | £2.04 |
*price indicative
- RS Stock No.:
- 684-396
- Mfr. Part No.:
- 39-29-5043
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 5569 | |
| Product Type | PCB Header | |
| Current | 9A | |
| Pitch | 4.2mm | |
| Housing Material | Nylon | |
| Number of Contacts | 4 | |
| Number of Rows | 2 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | PCB | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Row Pitch | 4.2mm | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.5mm | |
| Standards/Approvals | RoHS | |
| Voltage | 600 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 5569 | ||
Product Type PCB Header | ||
Current 9A | ||
Pitch 4.2mm | ||
Housing Material Nylon | ||
Number of Contacts 4 | ||
Number of Rows 2 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type PCB | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Row Pitch 4.2mm | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.5mm | ||
Standards/Approvals RoHS | ||
Voltage 600 V | ||
- COO (Country of Origin):
- MX
The Molex Mini-Fit Jr. Header is a robust and versatile connector designed to facilitate flexible power and signal connections in electronic applications. With a dual row right-angle configuration it effectively supports PCB mounting accommodating up to four circuits. Crafted from PA Polyamide Nylon 6/6 it provides not only durability but also excellent flammability ratings of 94V-2. The mating connections feature gold plating ensuring optimal conductivity and reliability in demanding environments. This connector is perfect for power applications where longevity and reliable performance are critical making it an ideal choice for a diverse range of electronic devices.
Supports a maximum contact current of 13A which ensuring robust power delivery
Compatible with 16 AWG wire making it suitable for various wire sizes
Natural resin colour allows for easy identification and integration into designs
Designed for through-hole termination which ensuring secure mounting on PCBs
Mates with Mini-Fit Jr. Receptacle Housings for streamlined connectivity
Durable across 30 mating cycles which enhancing product longevity
Meets stringent compliance standards including EU RoHS and REACH
Equipped with PCB locator and retention features for stability in usage
Lightweight design at 1.758 grams facilitates ease of installation
