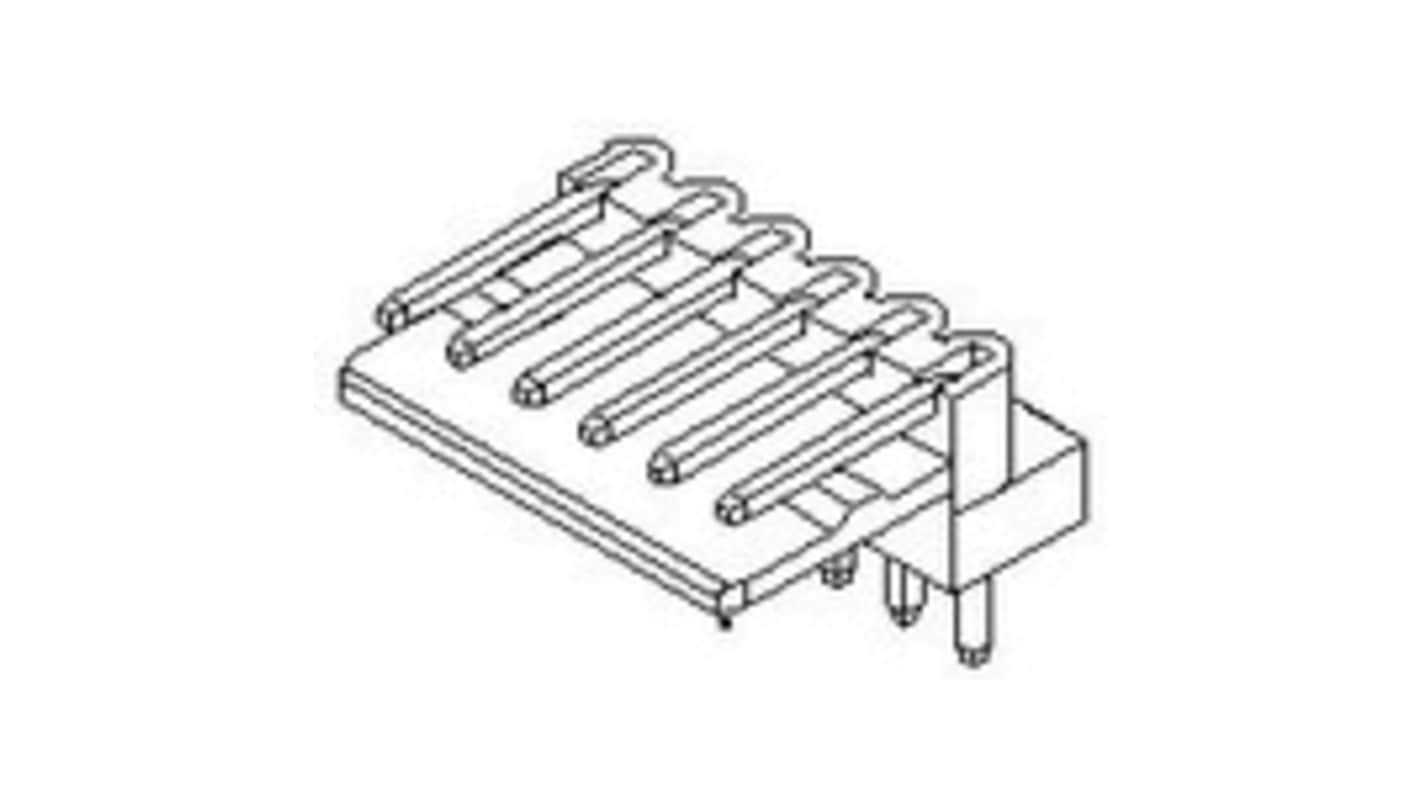

Molex 5046 Series Right Angle Through Hole PCB Header Pin, 6 Contact(s), 2.5mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 684-170
- Mfr. Part No.:
- 22-12-1042
- Brand:
- Molex
Subtotal (1 bag of 150 units)*
£197.80
(exc. VAT)
£237.36
(inc. VAT)
Stock information currently inaccessible
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £197.80 | £1.319 |
*price indicative
- RS Stock No.:
- 684-170
- Mfr. Part No.:
- 22-12-1042
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 5046 | |
| Pitch | 2.5mm | |
| Number of Contacts | 6 | |
| Number of Rows | 1 | |
| Body Orientation | Right Angle | |
| Shrouded/Unshrouded | Unshrouded | |
| Mounting Type | Through Hole | |
Select all | ||
|---|---|---|
Brand Molex | ||
Series 5046 | ||
Pitch 2.5mm | ||
Number of Contacts 6 | ||
Number of Rows 1 | ||
Body Orientation Right Angle | ||
Shrouded/Unshrouded Unshrouded | ||
Mounting Type Through Hole | ||
- COO (Country of Origin):
- JP
The Molex assembly is expertly designed to enhance connectivity and reliability in electronic circuits. This product features a robust construction using high-quality polyamide, ensuring durability and compliance with UL94V0 standards. Featuring a recommended PCB hole dimension for seamless integration, it also includes precision-engineered nickel and gold plating for superior conductivity. This assembly is ideal for applications requiring excellence in performance, tailored specifically for even circuit products, thus ensuring reliable connections in various configurations.
Manufactured from polyamide material, providing enhanced heat resistance and durability
Nickel plating of 2 micro meters minimum ensures excellent corrosion resistance
Designed specifically for even circuit products, allowing for versatile applications
Features a recommended PCB board hole dimension to support easy installation
General tolerances maintained, ensuring precise fitment in electronic assemblies
Nickel plating of 2 micro meters minimum ensures excellent corrosion resistance
Designed specifically for even circuit products, allowing for versatile applications
Features a recommended PCB board hole dimension to support easy installation
General tolerances maintained, ensuring precise fitment in electronic assemblies
