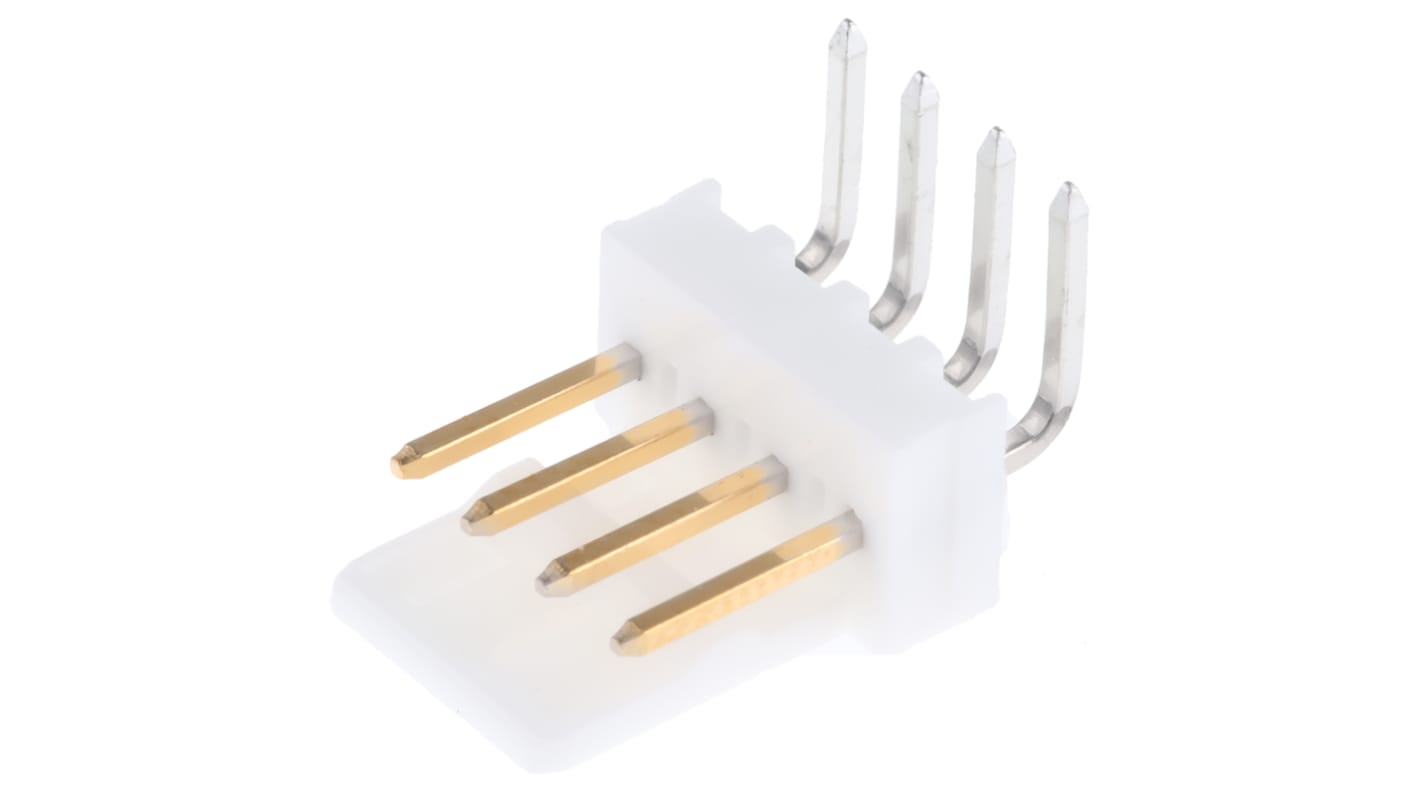

Molex KK 254 Series Right Angle Through Hole Pin Header, 4 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

RS Stock No.:: 670-1241
Mfr. Part No.:: 22-12-4042
Brand:: Molex

Molex KK 254 Series Right Angle Through Hole Pin Header, 4 Contact(s), 2.54mm Pitch, 1 Row(s), Unshrouded

320 In stock - FREE next working day delivery available

70 available from Europe for delivery within 1 working day(s).

Price Each (In a Pack of 5)

£0.912

(exc. VAT)

£1.094

(inc. VAT)

Units	Per unit	Per Pack*
5 - 120	£0.912	£4.56
125 - 495	£0.614	£3.07
500 - 2495	£0.59	£2.95
2500 - 4995	£0.502	£2.51
5000 +	£0.482	£2.41

*price indicative

RS Stock No.:: 670-1241
Mfr. Part No.:: 22-12-4042
Brand:: Molex

Technical Reference

Legislation and Compliance

Product Details

90° PCB Header with Friction Lock, 7395 Series (Au)

A range of KK 254 Series 7395 Right Angle PCB Pin Headers with Friction Lock with Gold plating on the contact area and Tin plating on the solder area.
The wafer material is Nylon 6/6 UL 94V-0 natural for these KK 254 Series 7395 Right Angle PCB Pin Header and allow end to end stacking. These KK 254 Series 7395 Right Angle PCB Pin Header mate with 2695 Series Housings with Lock, stock number 679-5284 typical.

Molex Pin Header, Wire-To-Board Type, Brass Contacts - KK 254 Series - 22-12-4042

For speedy wire-to-board connections, reach for this pin header from Molex. Its right-angle configuration makes it ideal for connecting multiple PCBs together, allowing you to bring complex designs to life. Brass contacts with gold plating resist corrosion and ensure a highly conductive connection. Through-hole mounting means it's easy to install this header securely onto your circuit board by just slotting its pins into the corresponding holes.

Features & Benefits

• 4 contacts in a single row, ideal for connecting simple components
• Voltage rating of 250V to handle high-power applications
• Standard 2.54mm pitch for wide compatibility
• Nylon body is tough and durable
• Weighs just 0.52g to keep your design light

Applications

• Electronic appliances
• Computer manufacturing
• Industrial automation

Can I remove and reinsert this pin header?

Yes. It has a maximum durability rating of 100 mating cycles, giving you plenty of scope to make adjustments.

Specifications

Attribute	Value
Series	KK 254
Pitch	2.54mm
Number of Contacts	4
Number of Rows	1
Body Orientation	Right Angle
Shrouded/Unshrouded	Unshrouded
Connector System	Wire to Board
Mounting Type	Through Hole
Termination Method	Solder
Contact Material	Brass
Contact Plating	Gold
Series Number	7395
Current Rating	4A
Tail Pin Length	6.7mm
Voltage Rating	250.0 V
Gender	Male
