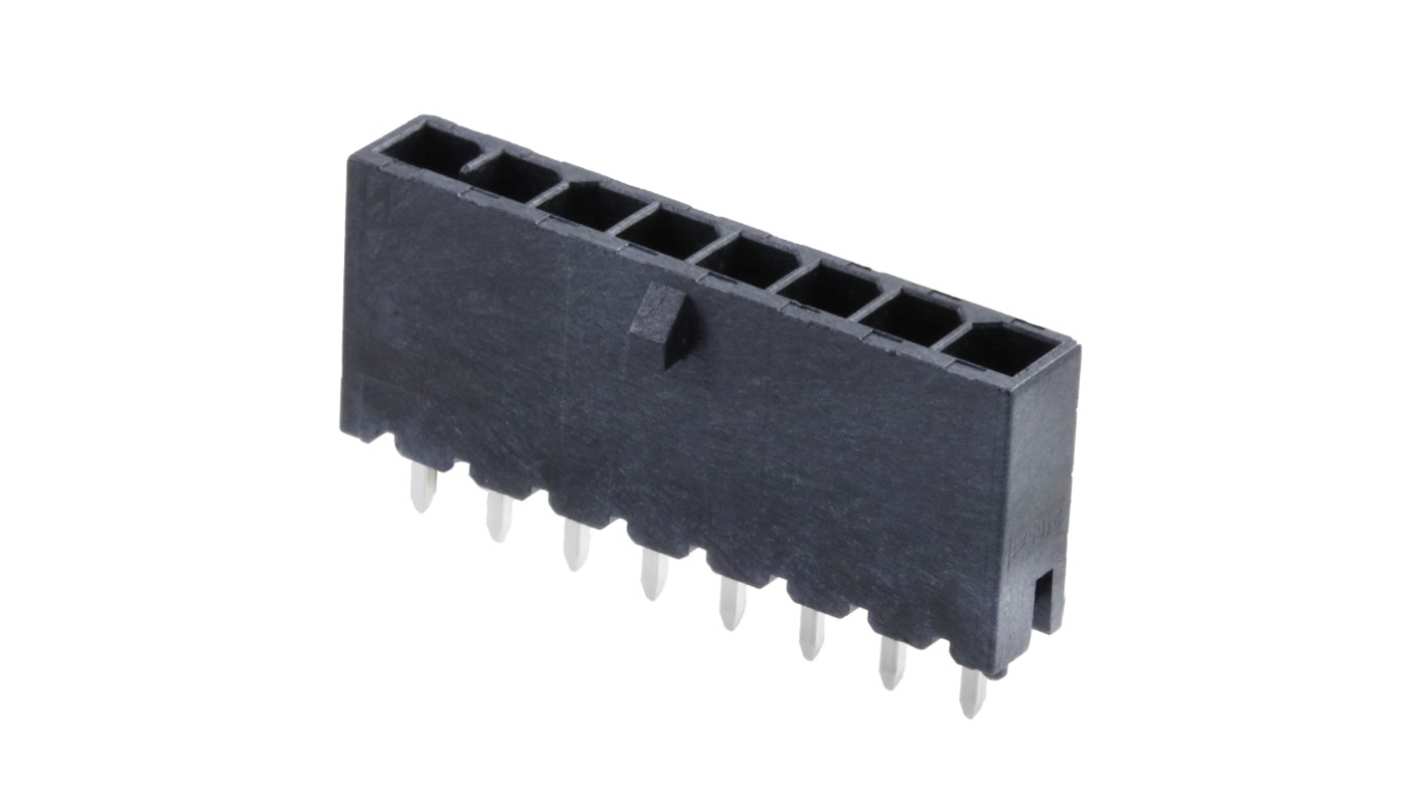

Molex 216571 Series Vertical PCB Mount PCB Header, 8 Contact(s), 3mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 684-162
- Mfr. Part No.:
- 216571-3008
- Brand:
- Molex
Subtotal (1 tray of 80 units)*
£212.40
(exc. VAT)
£254.88
(inc. VAT)
Stock information currently inaccessible
Tray(s) | Per Tray | Per unit* |
---|---|---|
1 + | £212.40 | £2.655 |
*price indicative
- RS Stock No.:
- 684-162
- Mfr. Part No.:
- 216571-3008
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Series | 216571 | |
Pitch | 3mm | |
Number of Contacts | 8 | |
Number of Rows | 1 | |
Body Orientation | Vertical | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | PCB Mount | |
Select all | ||
---|---|---|
Brand Molex | ||
Series 216571 | ||
Pitch 3mm | ||
Number of Contacts 8 | ||
Number of Rows 1 | ||
Body Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type PCB Mount | ||
- COO (Country of Origin):
- CN
The Molex Micro-Fit+ Vertical Header is engineered for optimal power delivery in wire-to-board applications. This product features a compact design with a pitch of 3.00mm and accommodates up to 8 circuits, ensuring efficient and reliable connections. Constructed with high-quality materials, the Micro-Fit+ is compliant with leading industry standards, catering to diverse environments and applications. Its robust design incorporates glow-wire capability and is rated for exceptional durability with a life expectancy of 200 mating cycles, making it an ideal choice for demanding electronic setups. The Micro-Fit+ additionally offers compatibility with a range of mating parts, enhancing versatility in complex assembly requirements.
Designed for PCB Headers and Receptacles with a single row configuration
Constructed from a high copper alloy for superior electrical performance
Features a liquid crystal polymer resin for enhanced thermal stability
Meets rigorous compliance standards, including EU RoHS and REACH regulations
Offers low halogen status per IEC standards for environmentally conscious applications
Provides a durable, vertical orientation suited for compact spaces
Incorporates a solderable termination interface style for reliable connections
Constructed from a high copper alloy for superior electrical performance
Features a liquid crystal polymer resin for enhanced thermal stability
Meets rigorous compliance standards, including EU RoHS and REACH regulations
Offers low halogen status per IEC standards for environmentally conscious applications
Provides a durable, vertical orientation suited for compact spaces
Incorporates a solderable termination interface style for reliable connections
