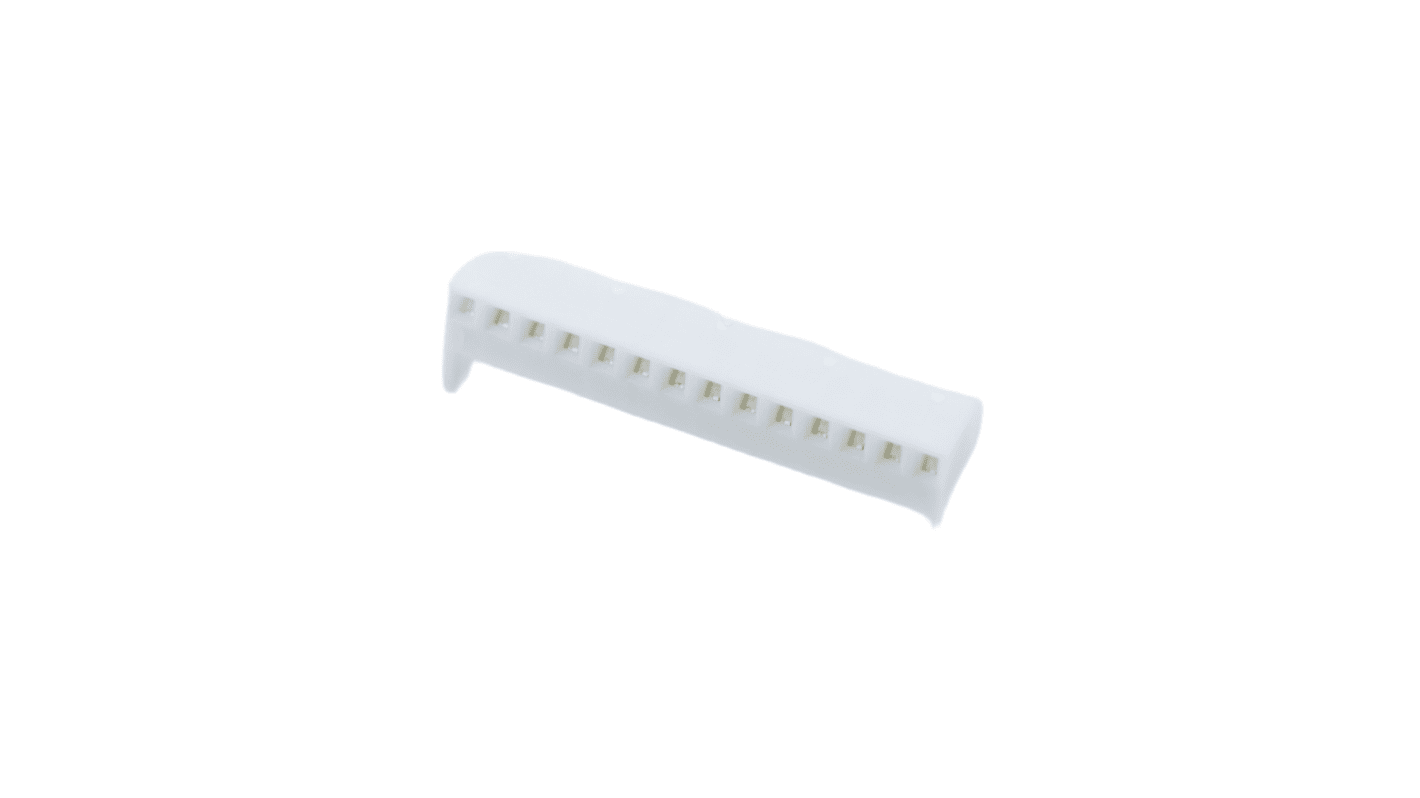

Molex 4455 Series Top Entry Through Hole PCB Header, 14 Contact(s), 2.54 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 684-114
- Mfr. Part No.:
- 38-00-1434
- Brand:
- Molex
Subtotal (1 tray of 150 units)*
£176.71
(exc. VAT)
£212.05
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £176.71 | £1.178 |
*price indicative
- RS Stock No.:
- 684-114
- Mfr. Part No.:
- 38-00-1434
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | 4455 | |
| Pitch | 2.54mm | |
| Number of Contacts | 14 | |
| Number of Rows | 1 | |
| Orientation | Top Entry | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Row Pitch | 2.54mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series 4455 | ||
Pitch 2.54mm | ||
Number of Contacts 14 | ||
Number of Rows 1 | ||
Orientation Top Entry | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Row Pitch 2.54mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- MY
The Molex KK 254 PC Board Connector serves as an essential component designed to facilitate board-to-board signal connections. This connector features 14 circuits, ensuring reliable and efficient interconnectivity within various electronic applications. Designed for easy integration, the KK 254 promises versatility with its vertical orientation, making it ideal for tight spaces. Its robust construction, along with compliance to industry standards, guarantees longevity and performance in demanding environments. With a maximum voltage rating of 500V and current per contact capacity of 2.5A, this connector delivers reliable electrical performance while maintaining a commitment to environmental standards, featuring low-halogen and RoHS compliance. This product is perfect for designers aiming to create efficient electronic assemblies that meet modern compliance requirements.
14 circuit design enhances connectivity options
Vertical orientation allows for space saving configurations
Constructed with high quality phosphor bronze for durability
Tin plating ensures excellent conductivity and corrosion resistance
Lead free wave solder capability supports eco friendly manufacturing
Flammability rating of 94V0 enhances safety standards
Compliance with EU RoHS directives underlines commitment to environmental safety
