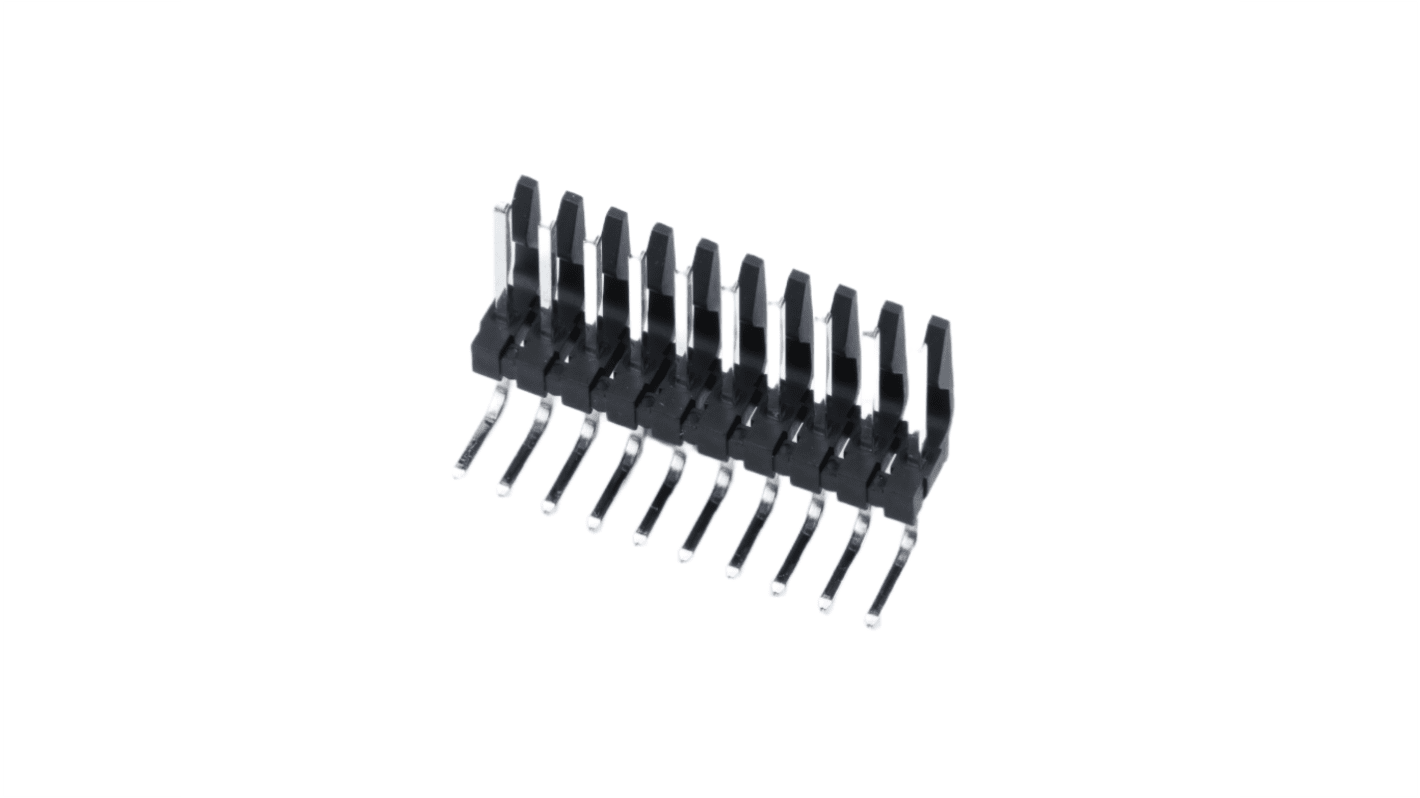

Molex 41672 Series Right Angle Through Hole PCB Header, 10 Contact(s), 3.96 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 683-947
- Mfr. Part No.:
- 26-48-1106
- Brand:
- Molex
Subtotal (1 bag of 200 units)*
£203.96
(exc. VAT)
£244.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £203.96 | £1.02 |
*price indicative
- RS Stock No.:
- 683-947
- Mfr. Part No.:
- 26-48-1106
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Product Type | PCB Header | |
| Series | 41672 | |
| Pitch | 3.96mm | |
| Current | 7A | |
| Number of Contacts | 10 | |
| Housing Material | Polyester | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Through Hole | |
| Contact Plating | Tin | |
| Contact Material | Brass | |
| Row Pitch | 3.96mm | |
| Termination Type | Solder | |
| Tail Pin Length | 4.37mm | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Product Type PCB Header | ||
Series 41672 | ||
Pitch 3.96mm | ||
Current 7A | ||
Number of Contacts 10 | ||
Housing Material Polyester | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Through Hole | ||
Contact Plating Tin | ||
Contact Material Brass | ||
Row Pitch 3.96mm | ||
Termination Type Solder | ||
Tail Pin Length 4.37mm | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- IN
The Molex KK 396 Breakaway Header is expertly designed for power and wire-to-board applications, featuring a robust right-angle configuration with a friction lock mechanism. This header accommodates up to 10 circuits and is constructed with high-quality tin plating, ensuring optimal conductivity and reliability. With a maximum current rating of 7.0A and a voltage capacity of 250V, this component meets stringent performance standards while offering easy integration into various PCB designs. Its durable construction, indicated by a maximum mating cycle durability of 25, supports long-term use in demanding environments, making it an ideal choice for modern electronic applications.
Breakaway design allows for easy separation of connectors, enhancing flexibility
Right angle orientation optimises space efficiency on PCBs
Friction lock feature provides secure mating, reducing the risk of disconnection
Constructed from polyester resin and brass, ensuring durability and resistance to wear
Simplifies assembly with through hole termination interface style
Suitable for lead free solder processes, supporting modern manufacturing standards
Meets EU RoHS compliance, ensuring it adheres to environmental regulations
