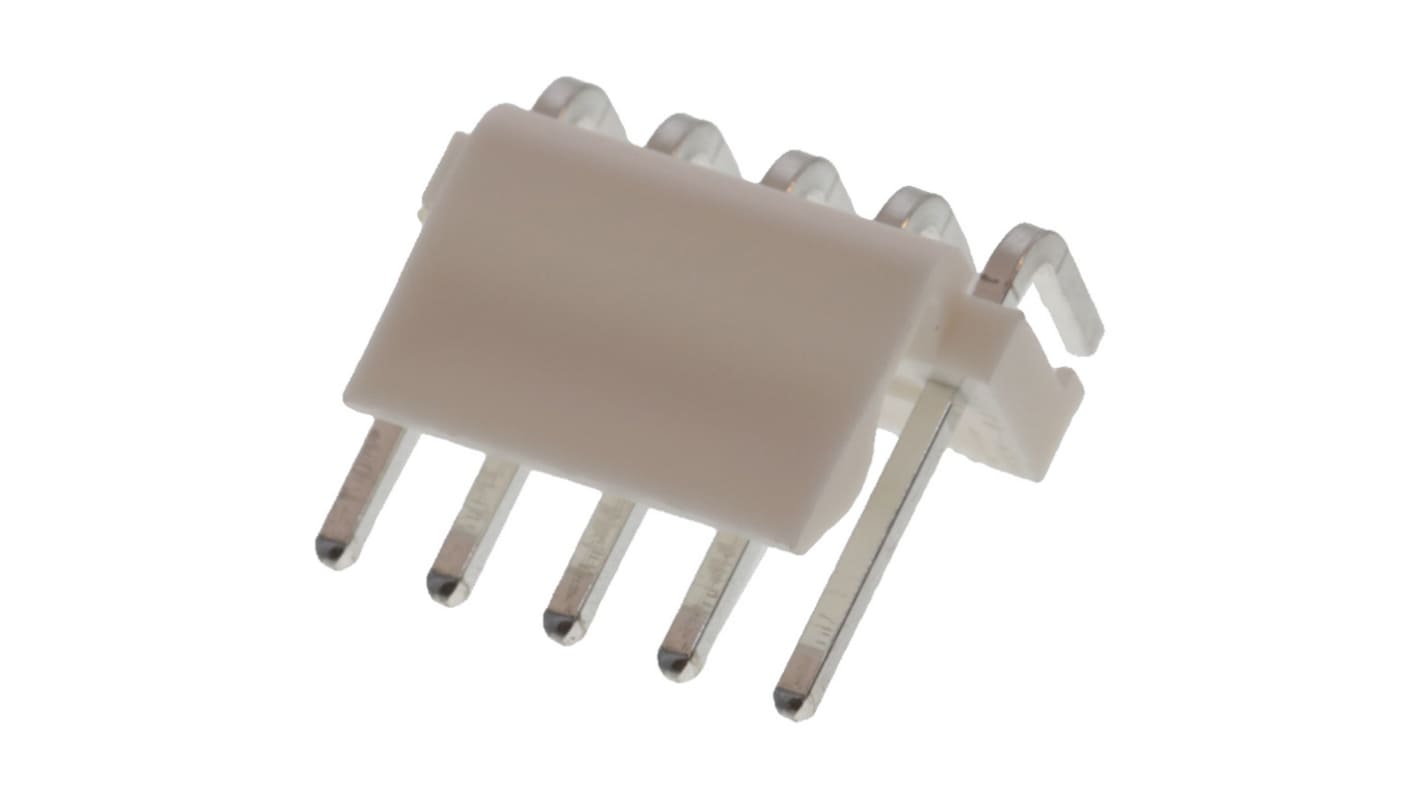

Molex 42892 Series Right Angle PCB PCB Header, 5 Contact(s), 3.96 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 683-752
- Mfr. Part No.:
- 26-60-7050
- Brand:
- Molex
Subtotal (1 bag of 400 units)*
£187.78
(exc. VAT)
£225.34
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £187.78 | £0.469 |
*price indicative
- RS Stock No.:
- 683-752
- Mfr. Part No.:
- 26-60-7050
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 42892 | |
| Product Type | PCB Header | |
| Current | 7A | |
| Pitch | 3.96mm | |
| Housing Material | Polyester | |
| Number of Contacts | 5 | |
| Number of Rows | 1 | |
| Orientation | Right Angle | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | PCB | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Termination Type | Solder | |
| Row Pitch | 3.96mm | |
| Tail Pin Length | 3.56mm | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 42892 | ||
Product Type PCB Header | ||
Current 7A | ||
Pitch 3.96mm | ||
Housing Material Polyester | ||
Number of Contacts 5 | ||
Number of Rows 1 | ||
Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type PCB | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Termination Type Solder | ||
Row Pitch 3.96mm | ||
Tail Pin Length 3.56mm | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- IN
The Molex KK 396 Solid Right-Angle Header designed for efficient power transfer in PCB applications. This component features a friction lock mechanism with a snap-in plastic peg for secure connections, accommodating up to five circuits while ensuring durability and reliable performance. The header's tin plating enhances conductivity and resistance to corrosion, making it ideal for a variety of electronic devices. With its right-angle orientation and recommended PCB thickness, this product is suited for compact designs and facilitates easy integration into diverse applications.
Friction lock mechanism ensures secure connections
Snap in plastic peg simplifies installation
Five circuits support high density applications
Tin plating provides superior conductivity
Designed for use in power and wire to board connections
Right angle orientation optimises space in compact designs
Durability rated for up to 25 mating cycles
PCB retention features enhance stability
