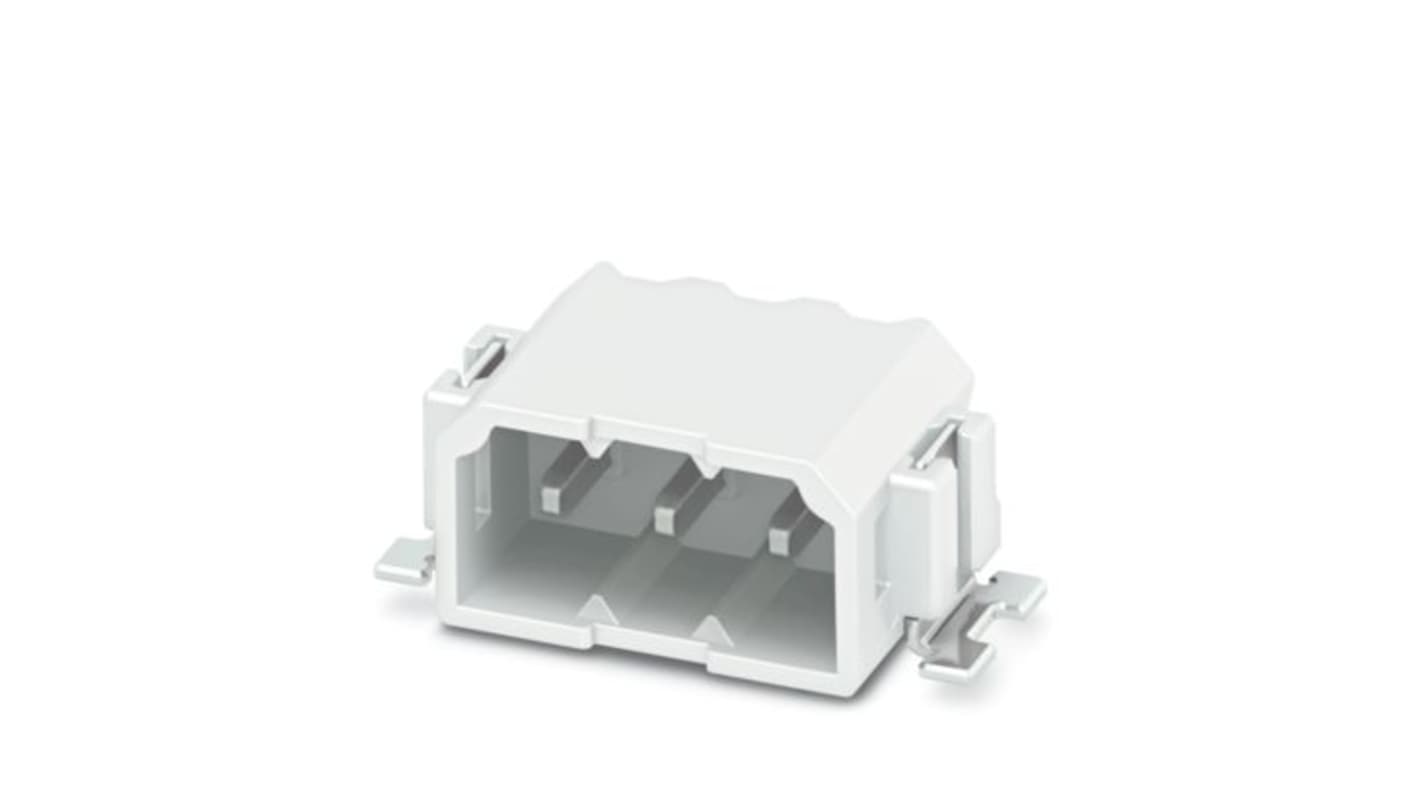

Phoenix Contact PTSM Series Straight Solder PCB Header, 2 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 658-644
- Mfr. Part No.:
- 1814919
- Brand:
- Phoenix Contact
Subtotal (1 pack of 600 units)*
£336.90
(exc. VAT)
£404.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £336.90 | £0.562 |
*price indicative
- RS Stock No.:
- 658-644
- Mfr. Part No.:
- 1814919
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | PTSM | |
| Current | 6A | |
| Pitch | 2.5mm | |
| Housing Material | Polyamide | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | COMBICON PTSM | |
| Mount Type | Solder | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Row Pitch | 2.5mm | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Reflow Solderable | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Standards/Approvals | cULus Recognised, UL Recognised, VDE | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series PTSM | ||
Current 6A | ||
Pitch 2.5mm | ||
Housing Material Polyamide | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System COMBICON PTSM | ||
Mount Type Solder | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Row Pitch 2.5mm | ||
Minimum Operating Temperature -40°C | ||
Termination Type Reflow Solderable | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Standards/Approvals cULus Recognised, UL Recognised, VDE | ||
Voltage 160 V | ||
- COO (Country of Origin):
- IN
The Phoenix Contact PCB Header redefines connectivity with its sophisticated design tailored for high-performance applications. Comprising two positions with a compact footprint, it guarantees a seamless integration into various circuit designs. The product boasts a nominal cross section of 0.5 mm² and is engineered to support a nominal current of 6 A, allowing for efficient power distribution. Its signal white colour not only compliments aesthetic considerations but ensures high visibility in complex assemblies.
Tested for durability ensuring reliable performance under rigorous conditions
Features minimal contact resistance for effective electrical performance
Capable of withstanding an extensive temperature range supporting versatile applications
Constructed with materials that enhance mechanical resilience during operation
