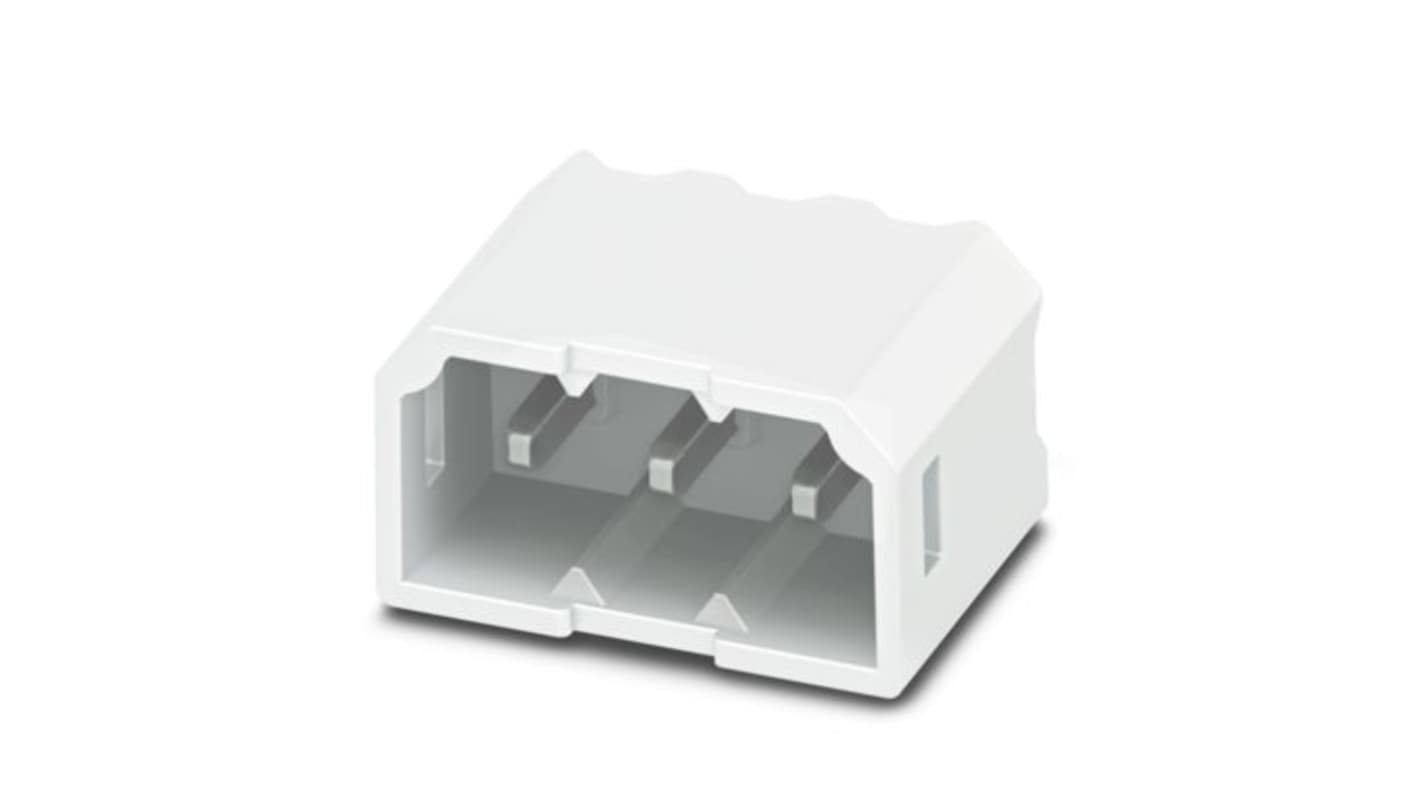

Phoenix Contact PTSM Series Straight Solder PCB Header, 3 Contact(s), 2.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 658-556
- Mfr. Part No.:
- 1814854
- Brand:
- Phoenix Contact
Subtotal (1 pack of 500 units)*
£251.17
(exc. VAT)
£301.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £251.17 | £0.502 |
*price indicative
- RS Stock No.:
- 658-556
- Mfr. Part No.:
- 1814854
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | PTSM | |
| Pitch | 2.5mm | |
| Current | 6A | |
| Number of Contacts | 3 | |
| Housing Material | Polyamide | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Solder | |
| Connector System | COMBICON PTSM | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2.5mm | |
| Termination Type | Solder | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 2.1mm | |
| Standards/Approvals | cULus Recognised (E60425-20110108), DIN EN 61340-5-1, IEC 60068-2-70, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, UL Recognised (E118976-20130619) | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series PTSM | ||
Pitch 2.5mm | ||
Current 6A | ||
Number of Contacts 3 | ||
Housing Material Polyamide | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Solder | ||
Connector System COMBICON PTSM | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2.5mm | ||
Termination Type Solder | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 2.1mm | ||
Standards/Approvals cULus Recognised (E60425-20110108), DIN EN 61340-5-1, IEC 60068-2-70, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60512-5-1, IEC 60664-1, UL Recognised (E118976-20130619) | ||
Voltage 160 V | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB Header, designed for versatility and reliability, is a part of the esteemed PTSM series. Engineered with a nominal cross-section of 0.5 mm² and a sleek signal white finish, this product is suitable for a variety of applications. It supports a nominal current of 6 A and a rated voltage of 160 V, ensuring optimal performance in critical settings. The header features a robust pin configuration of three potentials and positions, along with a pitch of 2.5 mm, promoting seamless integration in PCB designs.
Stable colour retention guarantees an aesthetically pleasing finish throughout its use
Optimised for automated mounting increasing efficiency in manufacturing processes
Suitable for demanding conditions withstanding a broad temperature range
