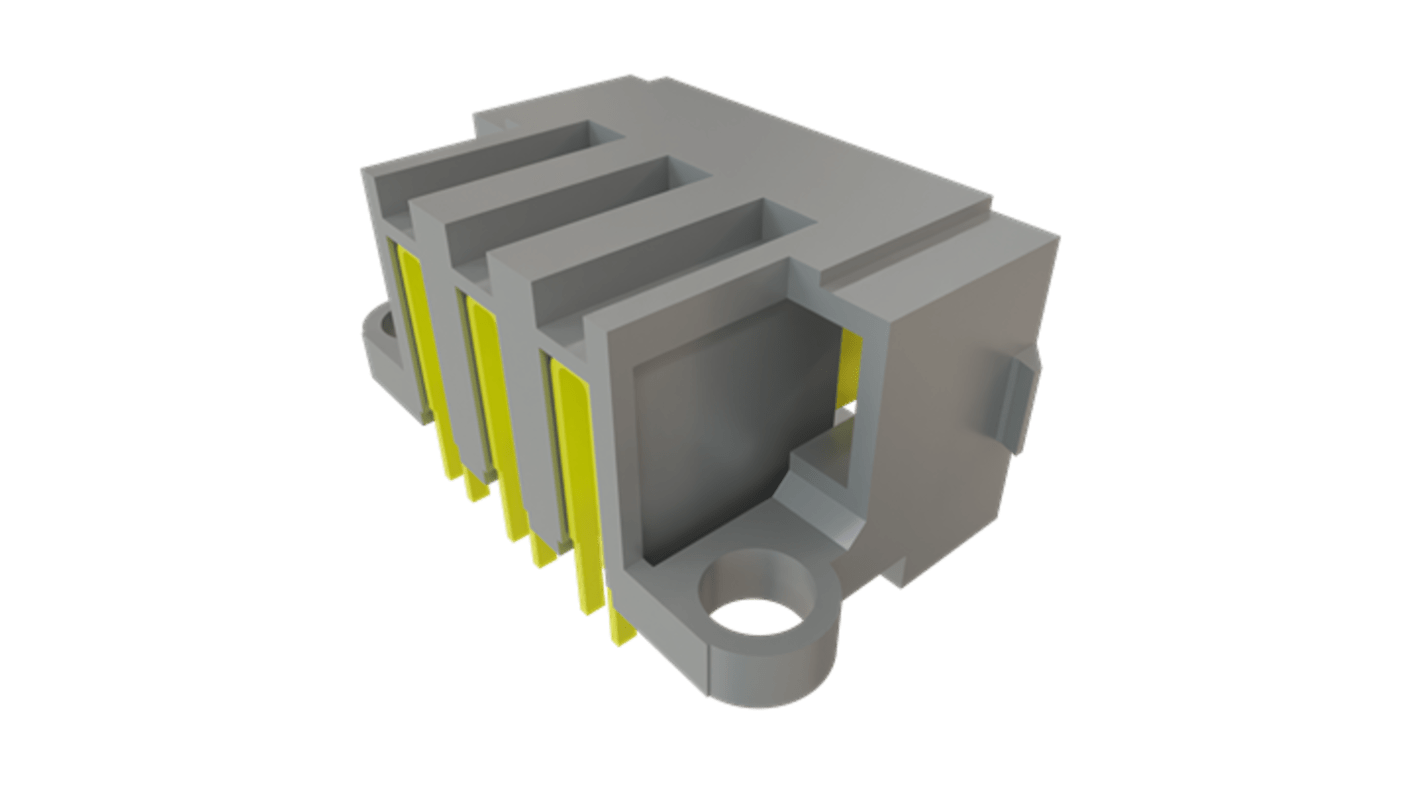

Samtec MPT Series Vertical Board, Cable PCB Header, 3 Contact(s), 5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 644-373
- Mfr. Part No.:
- MPT-03-01-01-T-RA-SD
- Brand:
- Samtec
Bulk discount available
Subtotal (1 unit)*
£4.05
(exc. VAT)
£4.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £4.05 |
| 10 - 24 | £3.73 |
| 25 + | £3.36 |
*price indicative
- RS Stock No.:
- 644-373
- Mfr. Part No.:
- MPT-03-01-01-T-RA-SD
- Brand:
- Samtec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Samtec | |
| Product Type | PCB Header | |
| Series | MPT | |
| Current | 28A | |
| Pitch | 5mm | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 3 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board, Cable | |
| Connector System | Dual Blade Contact System | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | -55°C | |
| Row Pitch | 5mm | |
| Tail Pin Length | 2.72mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | Lead (Pb) Free | |
| Voltage | 495 V | |
| Select all | ||
|---|---|---|
Brand Samtec | ||
Product Type PCB Header | ||
Series MPT | ||
Current 28A | ||
Pitch 5mm | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board, Cable | ||
Connector System Dual Blade Contact System | ||
Contact Material Copper Alloy | ||
Contact Plating Tin | ||
Minimum Operating Temperature -55°C | ||
Row Pitch 5mm | ||
Tail Pin Length 2.72mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals Lead (Pb) Free | ||
Voltage 495 V | ||
The Samtec 5.00 mm PowerStrip/30 A Dual Blade Terminal Strip by Samtec is a high-power interconnect solution designed for rugged applications requiring reliable power delivery. With a 5.00 mm pitch, this terminal strip accommodates 2 to 8 power positions and features high-power dual blade contacts capable of handling up to 24.7 A per position.
Current rating to 24.7A
RoHS compliant
High-power dual blade contact
