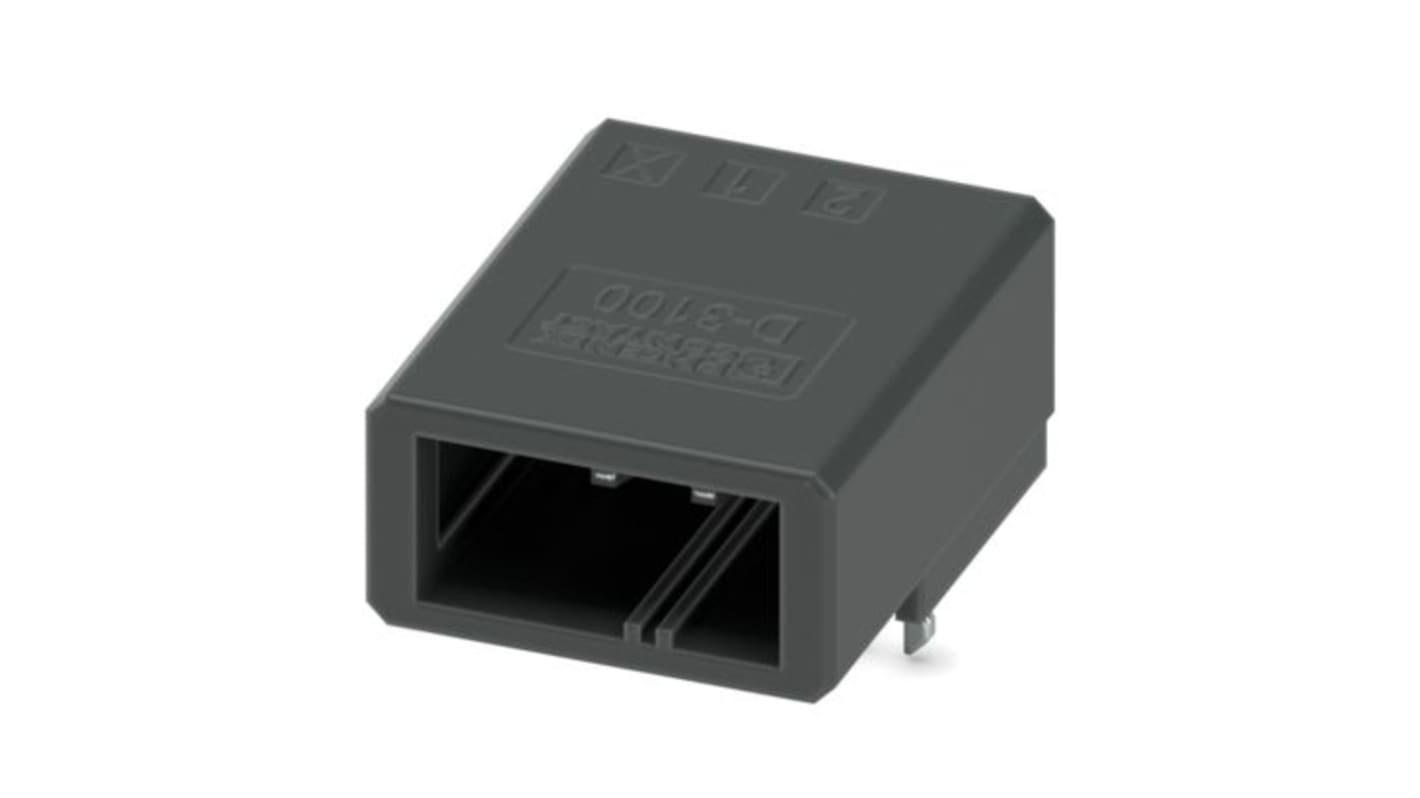

Phoenix Contact Wave Soldering Mount PCB Header, 2 Contact(s), 3.81 mm Pitch, 1 Row(s), Unshrouded
- RS Stock No.:
- 638-155
- Mfr. Part No.:
- 1339699
- Brand:
- Phoenix Contact
Subtotal (1 pack of 100 units)*
£39.44
(exc. VAT)
£47.33
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £39.44 | £0.394 |
*price indicative
- RS Stock No.:
- 638-155
- Mfr. Part No.:
- 1339699
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Current | 8A | |
| Pitch | 3.81mm | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | Wave Soldering Mount | |
| Connector System | CONNEXIS | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Row Pitch | 3.81mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.8mm | |
| Contact Gender | Male | |
| Standards/Approvals | DIN EN 61984, UL | |
| Mating Pin Length | 3.8mm | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Current 8A | ||
Pitch 3.81mm | ||
Housing Material Polybutylene Terephthalate | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type Wave Soldering Mount | ||
Connector System CONNEXIS | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Row Pitch 3.81mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.8mm | ||
Contact Gender Male | ||
Standards/Approvals DIN EN 61984, UL | ||
Mating Pin Length 3.8mm | ||
Voltage 160 V | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB Header offers a reliable and efficient connection solution tailored for modern electronic applications. Designed for seamless integration, it facilitates a straightforward installation process, making it suitable for a variety of environments. With its robust construction, it ensures consistent performance under demanding conditions. The header embodies precision engineering, providing optimal electrical characteristics while adhering to strict safety and compatibility standards.
Lightweight design optimising ease of handling and installation
Guarantees compliance with WEEE and RoHS regulations for environmental safety
Supports a wide temperature range ensuring reliability in diverse conditions
Features intuitive snap in locking mechanism to prevent accidental disconnections
