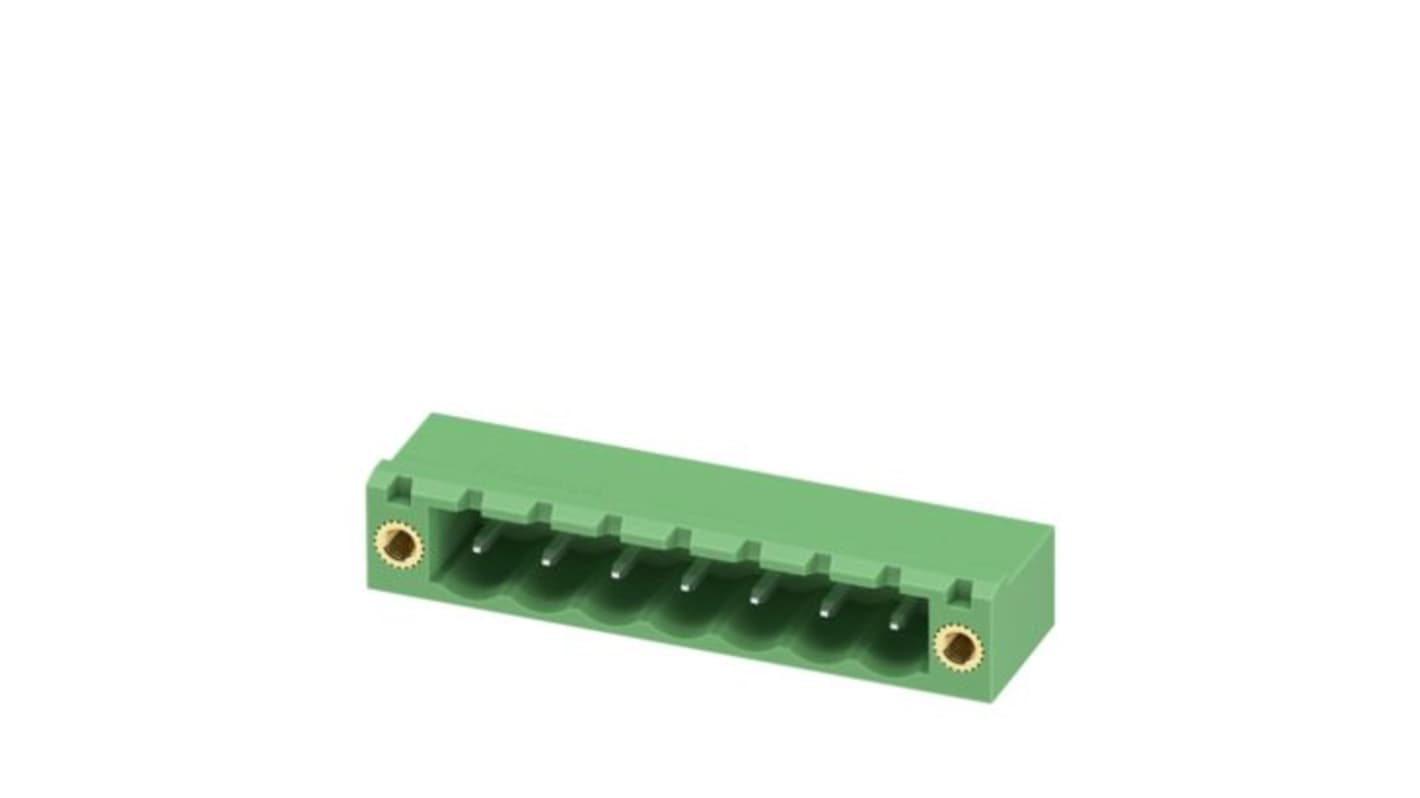

Phoenix Contact Straight Solder PCB Header, 7 Contact(s), 5.08 mm Pitch, 1 Row, Shrouded

View all PCB Headers

Subtotal (1 pack of 100 units)*

£267.20

(exc. VAT)

£320.64

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Temporarily out of stock
  • Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£267.20£2.672

*price indicative

RS Stock No.:
609-153
Mfr. Part No.:
1776553
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Current

12A

Pitch

5.08mm

Number of Contacts

7

Housing Material

Polybutylene Terephthalate

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON MSTB 2.5

Mount Type

Solder

Contact Plating

Tin Plated

Contact Material

Copper Alloy

Row Pitch

5.08mm

Termination Type

Solder

Minimum Operating Temperature

-40°C

Contact Gender

Male

Maximum Operating Temperature

105°C

Tail Pin Length

3.23mm

Mating Pin Length

3.23mm

Standards/Approvals

CSA, cULus, DNV GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-70, IEC 60068-2-82, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60512-3-1, IEC 60664-1, IEC 61984, ISO 6988, JEDEC JESD 201, UL 94 V0, VDE

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact PCB Header offers a seamless connection solution for a variety of applications. Designed with precision, it features a nominal cross section of 2.5 mm² and a striking green hue, ensuring both functionality and aesthetic appeal. It is engineered for robust performance, capable of handling currents up to 12 A and voltages of 320 V. With its wave soldering mounting method and linear pin layout, installation is straightforward, making it a convenient choice for both new designs and upgrades.

Designed to meet stringent environmental compliance standards

Facilitates efficient electronic design with compact dimensions

Supports ease of connection with a standardized pin connector pattern
