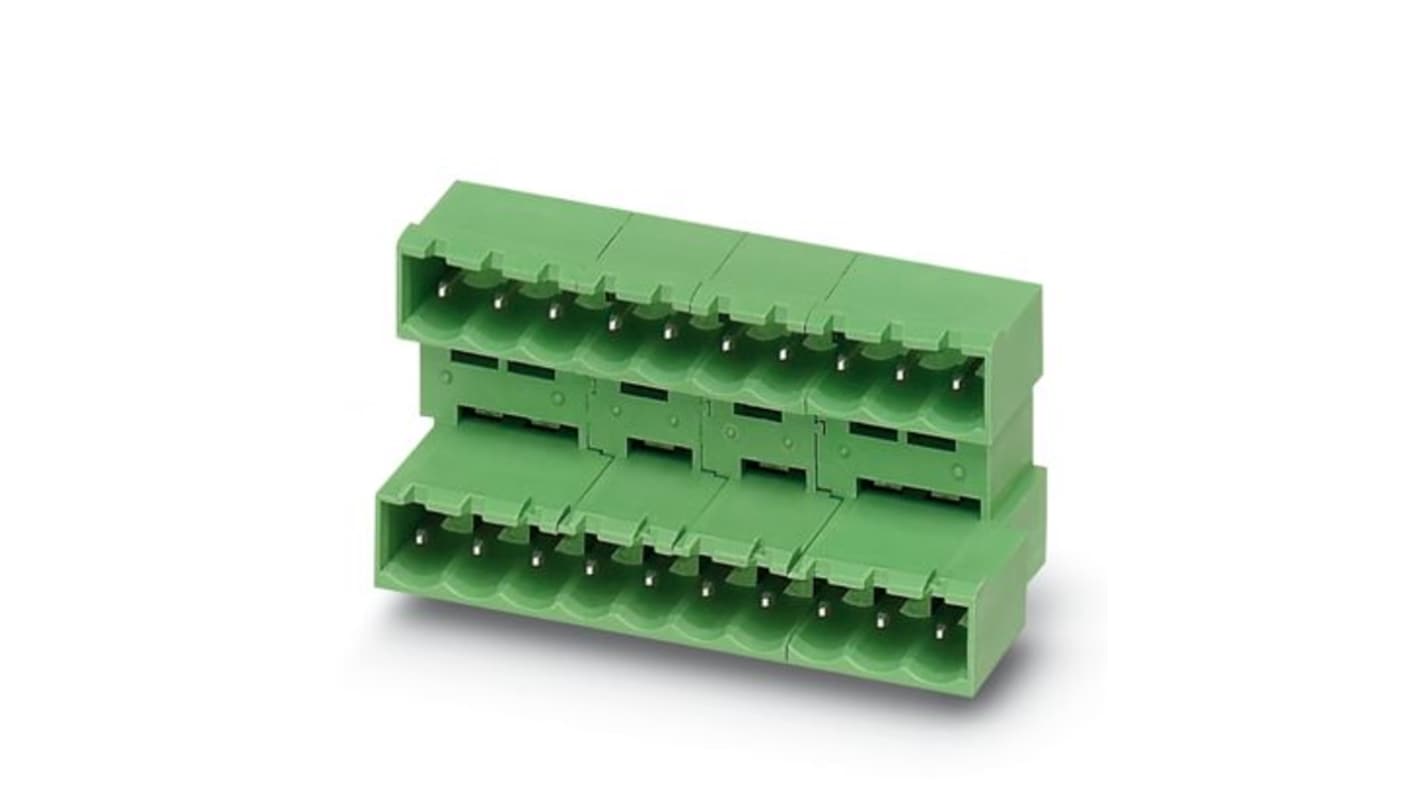

Phoenix Contact Straight Solder PCB Header, 12 Contact(s), 5.08 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£611.86

(exc. VAT)

£734.23

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 10 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£611.86£12.237

*price indicative

RS Stock No.:
607-123
Mfr. Part No.:
1842102
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Current

10A

Pitch

5.08mm

Housing Material

Polybutylene Terephthalate

Number of Contacts

12

Number of Rows

2

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Solder

Connector System

COMBICON MSTB 2.5

Contact Plating

Tin Plated

Contact Material

Copper Alloy

Row Pitch

5.08mm

Minimum Operating Temperature

-40°C

Termination Type

Solder

Contact Gender

Male

Tail Pin Length

3.23mm

Maximum Operating Temperature

100°C

Standards/Approvals

CSA, cULus, IEC 60068-2-70:1995-12, IEC 60112, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, ISO 6988:1985-02, UL 94 V0, VDE

Mating Pin Length

3.23mm

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact PCB Header is designed for versatility and efficiency in electronic connections. With its robust construction and innovative features, it supports nominal current operations while ensuring reliable performance. The header is crafted for wave soldering, making it ideal for high-volume applications where speed and accuracy are critical. Its pin layout allows for linear pinning, optimising space on PCB layouts.

Built from WEEE and RoHS compliant materials for environmental safety

Utilises a tin plated contact surface for improved electrical performance

Can be aligned to accommodate varying numbers of positions in designs

Dimensions are optimised for compatibility with standard PCB designs

Features distinct surface characteristics and insulation material for effective performance
