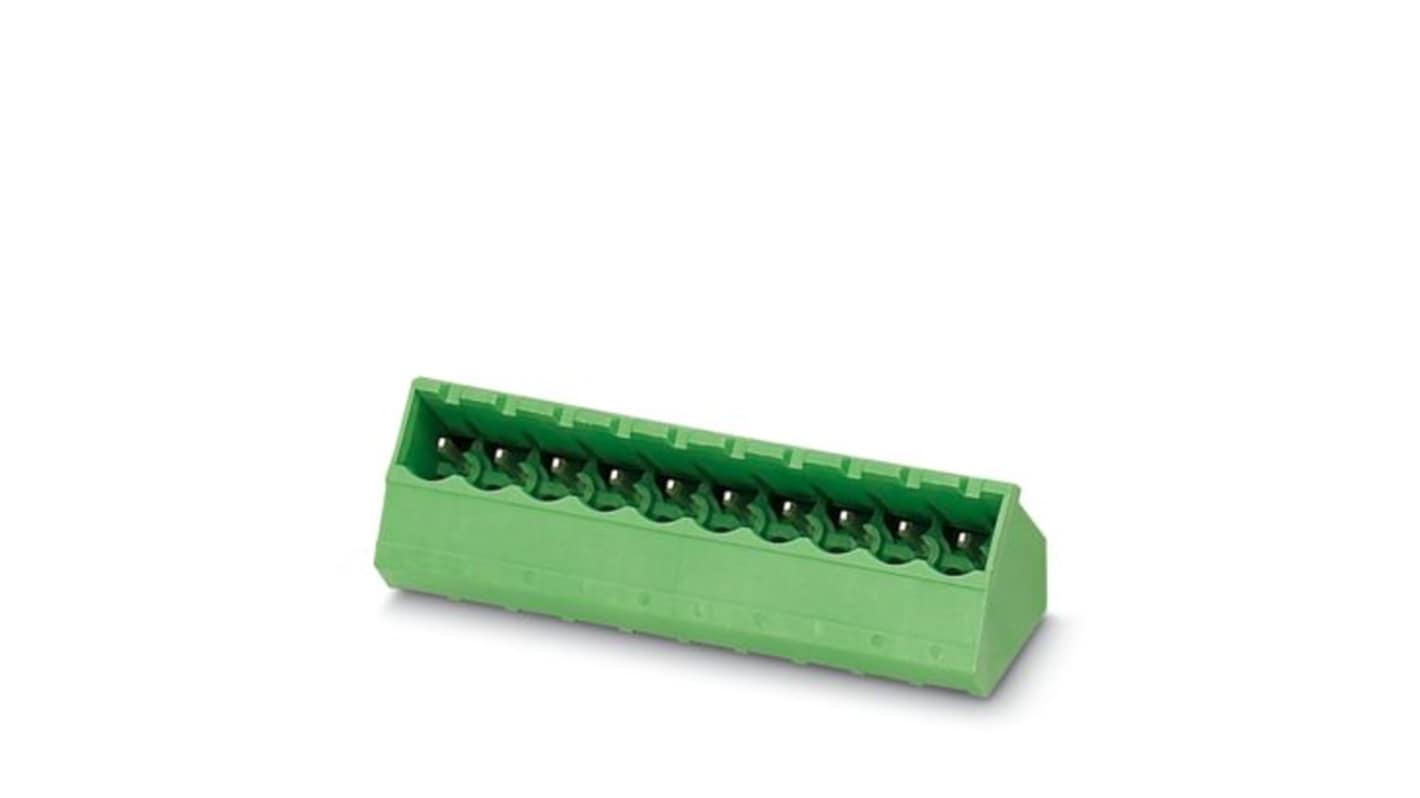

Phoenix Contact SMSTBA 2/5-G Series Angled Wave Soldering Mount PCB Header, 8 Contact(s), 5.08 mm Pitch, 1 Row(s),

View all PCB Headers

Subtotal (1 pack of 50 units)*

£188.30

(exc. VAT)

£225.96

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 16 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£188.30£3.766

*price indicative

RS Stock No.:
609-150
Mfr. Part No.:
1767436
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

SMSTBA 2/5-G

Current

12A

Pitch

5.08mm

Housing Material

Polyamide

Number of Contacts

8

Number of Rows

1

Orientation

Angled

Shrouded/Unshrouded

Shrouded

Mount Type

Wave Soldering Mount

Connector System

COMBICON MSTB 2.5

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Termination Type

Solder

Minimum Operating Temperature

-40°C

Row Pitch

5.08mm

Maximum Operating Temperature

100°C

Tail Pin Length

3.5mm

Contact Gender

Male

Standards/Approvals

CSA 13631-2585951, cULus E60425-19931011, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-70:1995-12, IEC 60112, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, ISO 6988:1985-02, UL 94, VDE 40050648

Mating Pin Length

3.5mm

Voltage

32 V

COO (Country of Origin):
PL
The Phoenix Contact PCB headers in the SMSTBA 2.5/-G series have a nominal cross section of 2.5 mm² and come in green. They are rated for a nominal current of 12 A and a rated voltage of 320 V (III/2). The contact surface is coated with Sn, and the contact connection type is pin-based. With 8 positions and 8 connections, these headers feature a 5.08 mm pitch and are configured in a single row. They are designed for wave soldering mounting.

Well known mounting principle allows worldwide use

Angled connection enables multi row arrangement on the PCB
