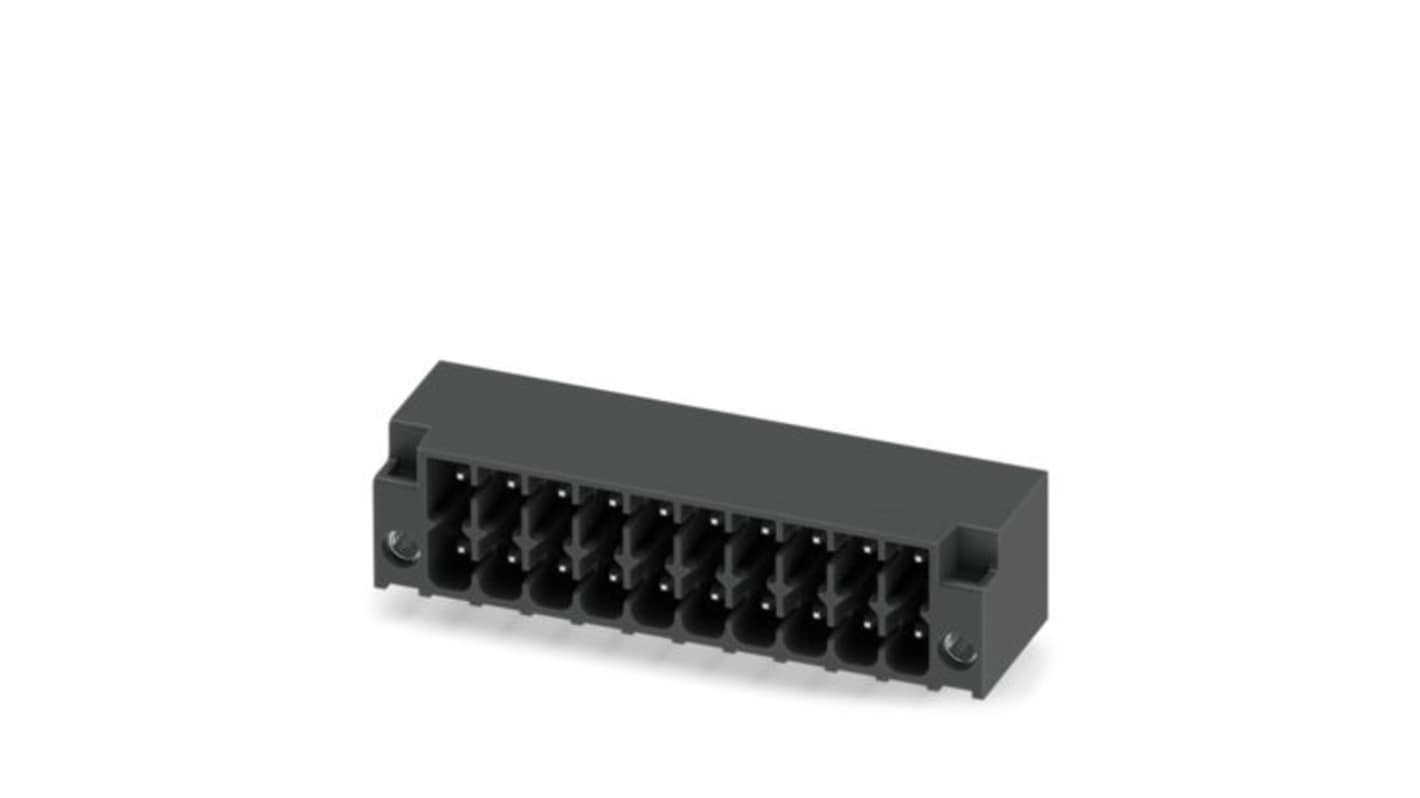

Phoenix Contact Straight Wave Soldering Mount PCB Header, 20 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 566-199
- Mfr. Part No.:
- 1874056
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£444.90
(exc. VAT)
£533.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £444.90 | £8.898 |
*price indicative
- RS Stock No.:
- 566-199
- Mfr. Part No.:
- 1874056
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Current | 8A | |
| Pitch | 3.5mm | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 20 | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | COMBICON DFMC 1 | |
| Mount Type | Wave Soldering Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 3.5mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 2.6mm | |
| Contact Gender | Male | |
| Mating Pin Length | 2.6mm | |
| Standards/Approvals | cULus Recognised, VDE | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Current 8A | ||
Pitch 3.5mm | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 20 | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System COMBICON DFMC 1 | ||
Mount Type Wave Soldering Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 3.5mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 2.6mm | ||
Contact Gender Male | ||
Mating Pin Length 2.6mm | ||
Standards/Approvals cULus Recognised, VDE | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB Header offers an innovative solution for reliable connections within compact electronic designs. Engineered for THR soldering and wave soldering, it embodies precision and efficiency, making it ideal for various applications ranging from industrial to automotive sectors. The connector supports high-performance functionalities, featuring a robust locking mechanism and a compact footprint suitable for dense layouts.
Exhibits compliance with WEEE and RoHS standards ensuring environmental safety
Demonstrates robust thermal resistance characteristics
Offers a compact size perfect for space limited applications
Built to endure rigorous mechanical testing ensuring longevity
Enables standard pin connector pattern alignment for straightforward installation
