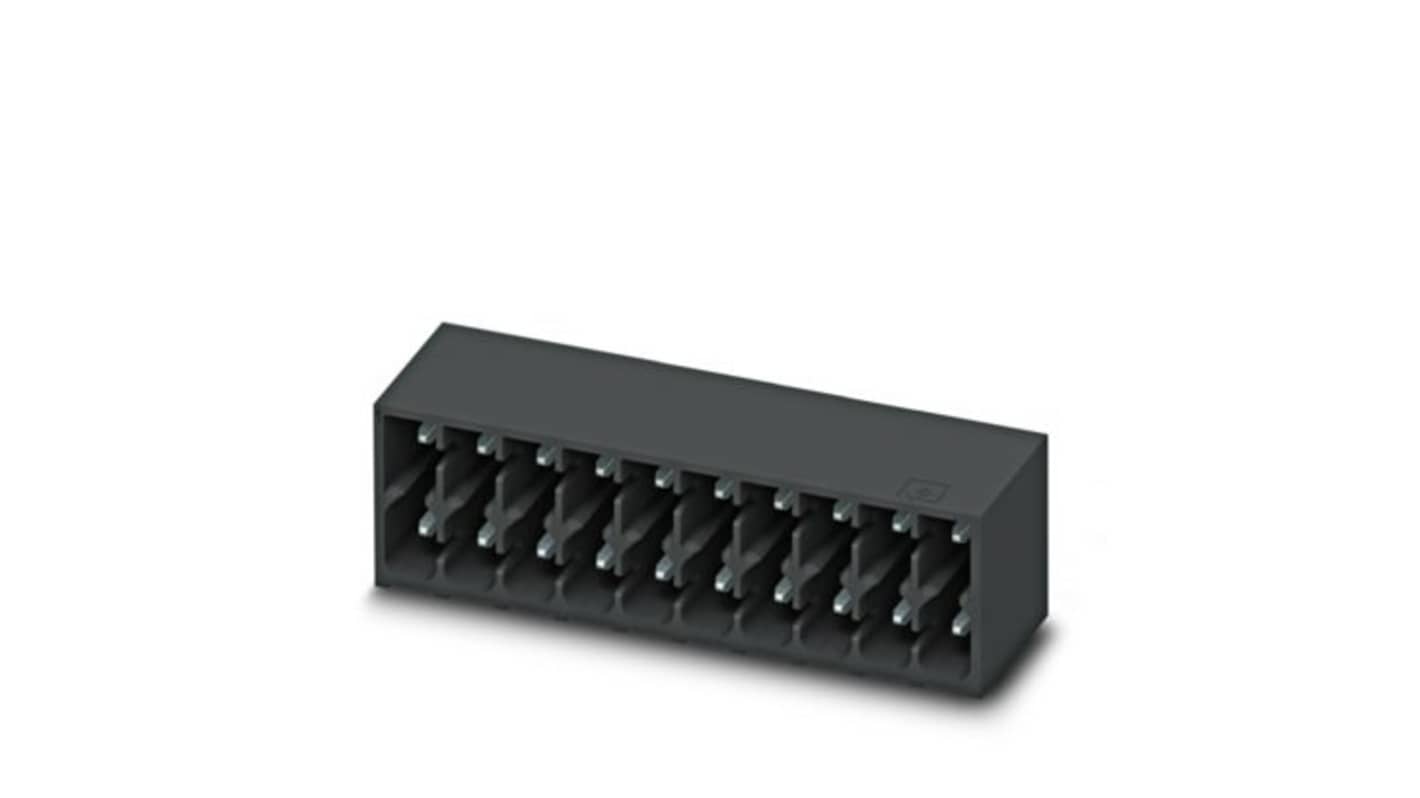

Phoenix Contact DMC Series Straight Wave Soldering Mount PCB Header, 20 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£756.14

(exc. VAT)

£907.37

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 10 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£756.14£15.123

*price indicative

RS Stock No.:
489-159
Mfr. Part No.:
1787580
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

DMC

Pitch

3.5mm

Current

8A

Housing Material

Liquid Crystal Polymer

Number of Contacts

20

Number of Rows

2

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON DFMC 1

Mount Type

Wave Soldering Mount

Contact Plating

Tin Plated

Contact Material

Copper Alloy

Minimum Operating Temperature

-40°C

Row Pitch

3.5mm

Termination Type

Solder

Contact Gender

Male

Maximum Operating Temperature

100°C

Tail Pin Length

2mm

Mating Pin Length

2mm

Standards/Approvals

cULus Recognised, VDE

Voltage

160 V

COO (Country of Origin):
CN
The Phoenix Contact PCB header brings advanced connectivity solutions to your projects, ideal for applications requiring efficient space utilisation and high contact density. At the heart of the DMC 1.5/20-G1-3.5 P20THR is its robust design, accommodating multiple connections in a compact footprint. Engineered for compatibility with THR soldering and wave soldering processes, this component ensures seamless integration into contemporary assembly lines. Its durable construction and thoughtful design enhancements demonstrate a commitment to quality and reliability, catering to a wide array of industrial applications. With features that marry practicality with performance, this header is poised to become an essential element in any electric circuit assembly.

Designed for easy integration into SMT soldering processes

Higher contact density achieved through multi-level conductor connections

Compact size well-suited for space-constrained applications

Meets stringent WEEE/RoHS compliance standards

Supports a wide operating temperature range for diverse environments

Constructed with high-quality materials for enhanced durability and lifespan

Provides simplified assembly with clear dimensional specifications

Utilises a pin layout that maximises efficiency and functionality
