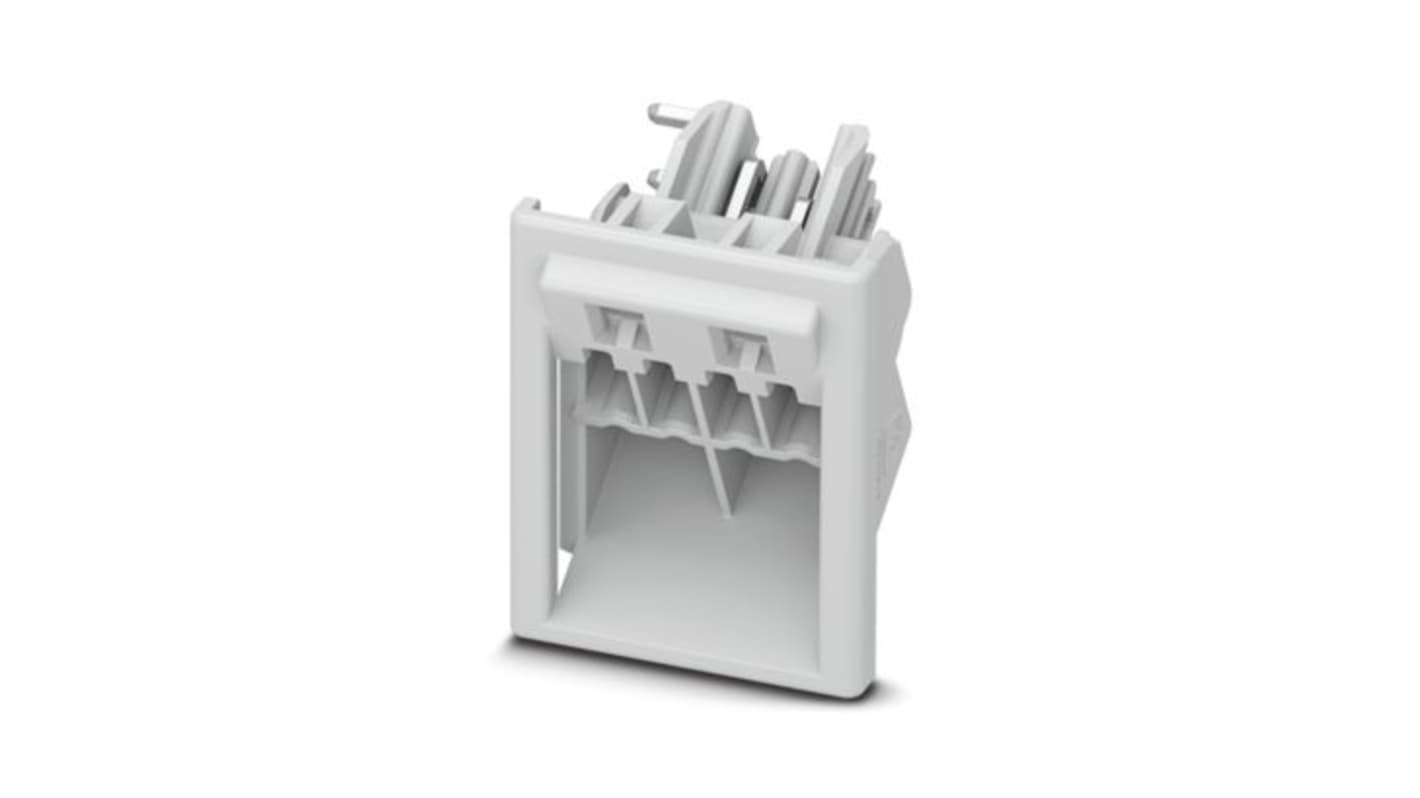

Phoenix Contact ICC20-H/4L3 Series Wave Soldering Mount PCB Header, 4 Contact(s), 3.5 mm Pitch, 1 Row(s)
- RS Stock No.:
- 557-419
- Mfr. Part No.:
- 1084014
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£139.00
(exc. VAT)
£166.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £139.00 | £2.78 |
*price indicative
- RS Stock No.:
- 557-419
- Mfr. Part No.:
- 1084014
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | ICC20-H/4L3 | |
| Pitch | 3.5mm | |
| Current | 8A | |
| Housing Material | Polyamide | |
| Number of Contacts | 4 | |
| Number of Rows | 1 | |
| Mount Type | Wave Soldering Mount | |
| Connector System | Plug-In System: ICC 1 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Row Pitch | 3.5mm | |
| Tail Pin Length | 3.65mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Mating Pin Length | 3.65mm | |
| Standards/Approvals | cULus Recognised Approval ID: E60425-20181123 | |
| Voltage | 150 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series ICC20-H/4L3 | ||
Pitch 3.5mm | ||
Current 8A | ||
Housing Material Polyamide | ||
Number of Contacts 4 | ||
Number of Rows 1 | ||
Mount Type Wave Soldering Mount | ||
Connector System Plug-In System: ICC 1 | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Row Pitch 3.5mm | ||
Tail Pin Length 3.65mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Mating Pin Length 3.65mm | ||
Standards/Approvals cULus Recognised Approval ID: E60425-20181123 | ||
Voltage 150 V | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB Header is designed for reliability and efficiency in diverse electronic applications. Its light grey housing not only enhances aesthetic appeal but also integrates seamlessly within various setups. Developed to accommodate a nominal current of 8 A, this connector facilitates optimal electrical performance with a rated voltage of 150 V. The innovative wave soldering mounting type ensures a secure fit, while the intelligent design features linear pinning and a pitch of 3.5 mm, allowing for straightforward installation.
Constructed with tin plated copper alloy for superior conductivity
Offers a robust temperature range ensuring reliability across various environments
Provides variable coding options to prevent incorrect connections
Includes a pin layout that allows for efficient and accurate mounting
