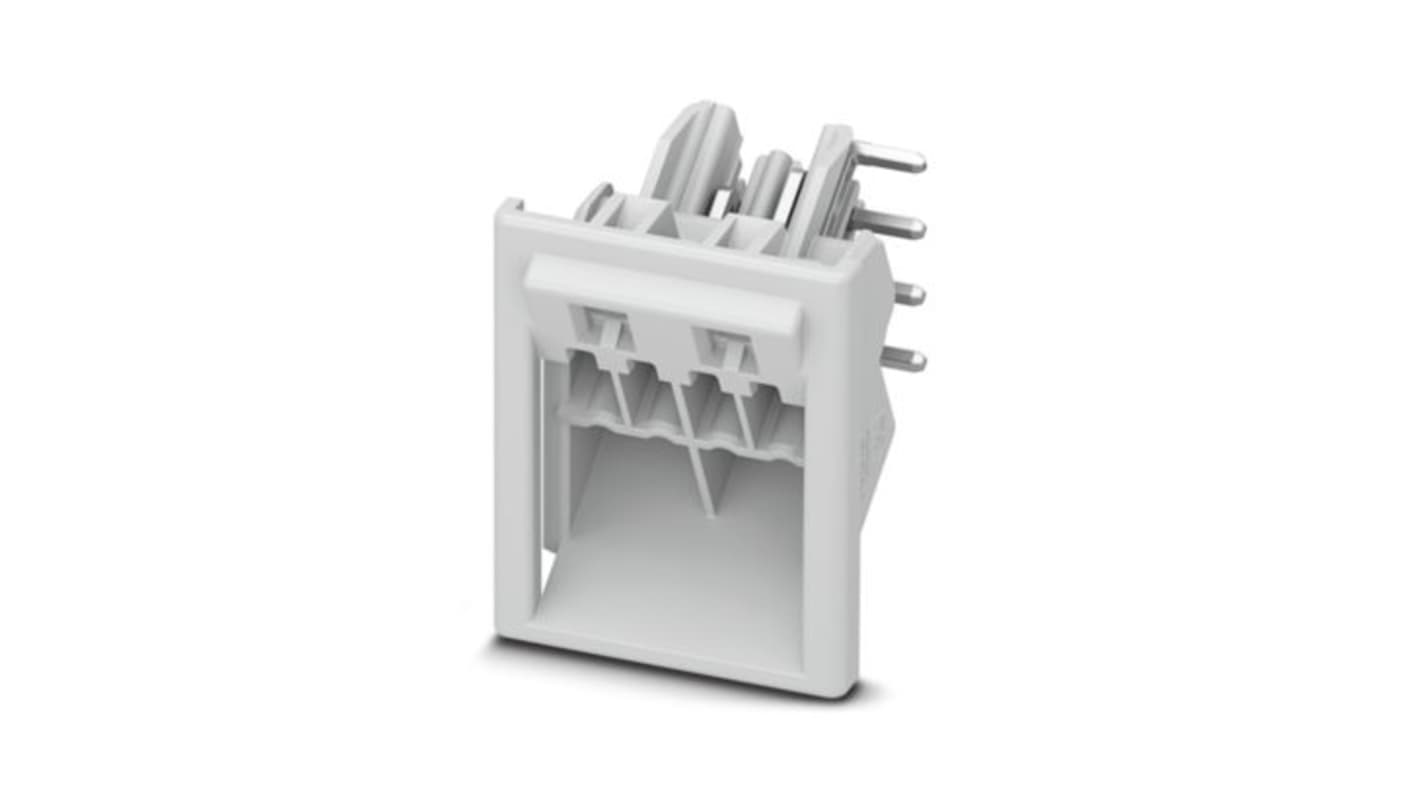

Phoenix Contact ICC20-H/4R3 Series Wave Soldering Mount PCB Header, 4 Contact(s), 3.5 mm Pitch, 1 Row(s)
- RS Stock No.:
- 556-170
- Mfr. Part No.:
- 1084012
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£139.00
(exc. VAT)
£166.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £139.00 | £2.78 |
*price indicative
- RS Stock No.:
- 556-170
- Mfr. Part No.:
- 1084012
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | ICC20-H/4R3 | |
| Product Type | PCB Header | |
| Current | 8A | |
| Pitch | 3.5mm | |
| Housing Material | Polyamide | |
| Number of Contacts | 4 | |
| Number of Rows | 1 | |
| Connector System | ICC 1 | |
| Mount Type | Wave Soldering Mount | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Termination Type | Solder | |
| Row Pitch | 3.5mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.65mm | |
| Contact Gender | Male | |
| Mating Pin Length | 3.65mm | |
| Standards/Approvals | cULus Recognised (E60425-20181123) | |
| Voltage | 150 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series ICC20-H/4R3 | ||
Product Type PCB Header | ||
Current 8A | ||
Pitch 3.5mm | ||
Housing Material Polyamide | ||
Number of Contacts 4 | ||
Number of Rows 1 | ||
Connector System ICC 1 | ||
Mount Type Wave Soldering Mount | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Termination Type Solder | ||
Row Pitch 3.5mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.65mm | ||
Contact Gender Male | ||
Mating Pin Length 3.65mm | ||
Standards/Approvals cULus Recognised (E60425-20181123) | ||
Voltage 150 V | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PCB Header is designed to ensure seamless connectivity and reliability in your electronic applications. Constructed with a light grey housing, it offers a sophisticated yet robust solution for managing multiple connections efficiently. Its design incorporates linear pinning and is tailored for wave soldering, which simplifies the assembly process while maintaining optimal performance. With a nominal current capacity of 8 A and a rated voltage of 150 V, this component is perfectly suited for high-demand environments.
Pin connector pattern allows for standard alignment and secure connections
Snap in locking mechanism enhances stability and reduces connection issues
WEEE and RoHS compliance ensures minimal environmental impact
Free of whiskers promoting longevity and reliability in performance
