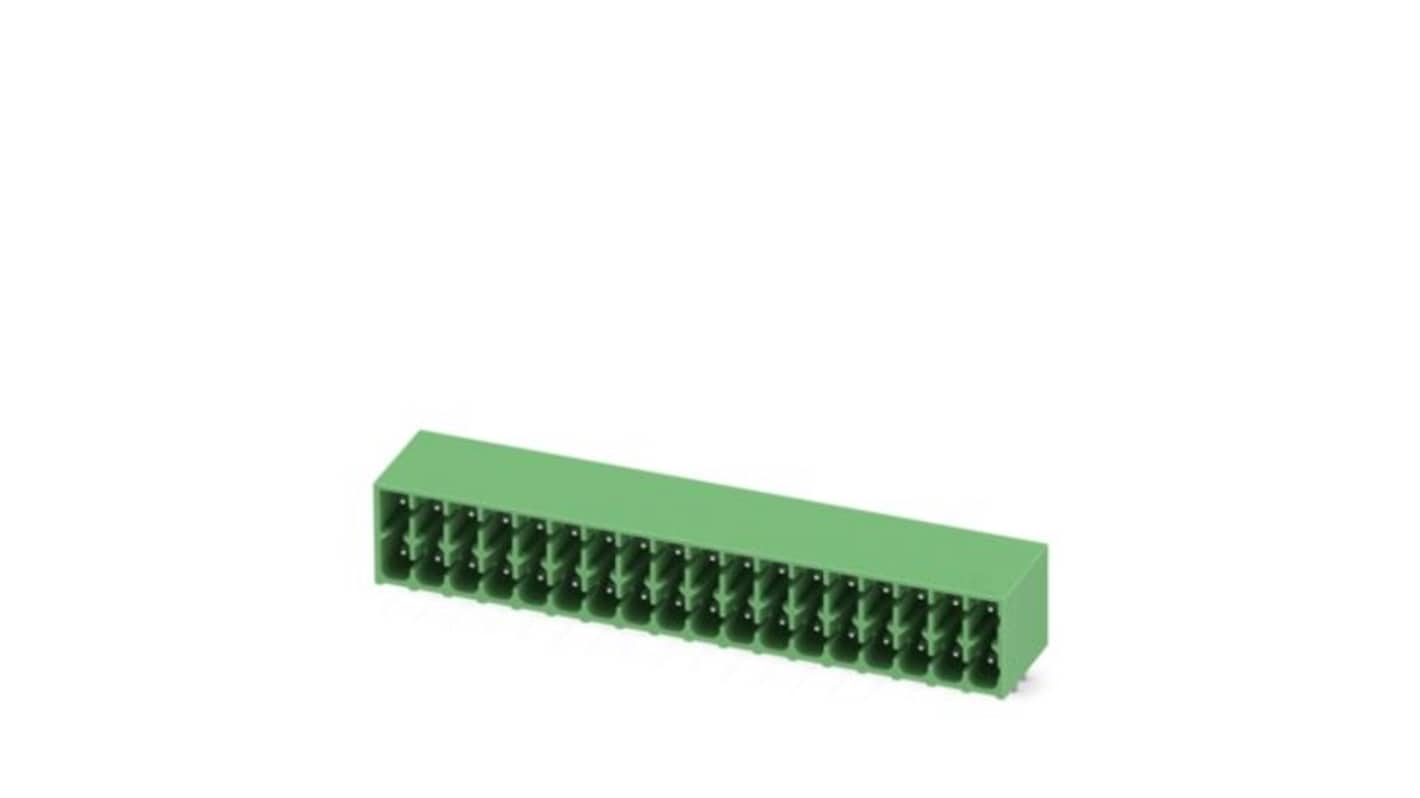

Phoenix Contact DMC Series Wave Soldering Mount PCB Header, 36 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 556-273
- Mfr. Part No.:
- 1053835
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£674.48
(exc. VAT)
£809.38
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £674.48 | £13.49 |
*price indicative
- RS Stock No.:
- 556-273
- Mfr. Part No.:
- 1053835
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | DMC | |
| Product Type | PCB Header | |
| Pitch | 3.5mm | |
| Current | 8A | |
| Number of Contacts | 36 | |
| Housing Material | Polybutylene Terephthalate | |
| Number of Rows | 2 | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | COMBICON | |
| Mount Type | Wave Soldering Mount | |
| Contact Plating | Tin over Nickel | |
| Contact Material | Copper Alloy | |
| Termination Type | Solder | |
| Row Pitch | 3.5mm | |
| Minimum Operating Temperature | -40°C | |
| Tail Pin Length | 3.5mm | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Standards/Approvals | cULus Recognised | |
| Mating Pin Length | 3.5mm | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series DMC | ||
Product Type PCB Header | ||
Pitch 3.5mm | ||
Current 8A | ||
Number of Contacts 36 | ||
Housing Material Polybutylene Terephthalate | ||
Number of Rows 2 | ||
Shrouded/Unshrouded Shrouded | ||
Connector System COMBICON | ||
Mount Type Wave Soldering Mount | ||
Contact Plating Tin over Nickel | ||
Contact Material Copper Alloy | ||
Termination Type Solder | ||
Row Pitch 3.5mm | ||
Minimum Operating Temperature -40°C | ||
Tail Pin Length 3.5mm | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Standards/Approvals cULus Recognised | ||
Mating Pin Length 3.5mm | ||
Voltage 160 V | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB header is engineered for high-density connectivity in electronic applications. Designed to facilitate efficient conductor connections across multiple levels, this component fits seamlessly into compact designs while ensuring excellent performance. The product boasts a robust construction, featuring a pin layout that supports wave soldering for reliable mounting. With its comprehensive electrical specifications, it guarantees a nominal current of 8 A and a rated voltage up to 160 V, making it suitable for various application scenarios. This PCB header not only meets stringent compliance standards but also offers a sustainable solution, being RoHS compliant. The innovative design reduces space requirements, thus optimising the overall assembly process.
Compact design enhances space efficiency in installations
Facilitates high contact density across multiple levels
Compatible with COMBICON DFMC 1,5 plug-in system
WEEE/RoHS compliance ensures environmentally friendly use
Robust construction supports challenging electrical specifications
Wave soldering mount type simplifies installation processes
Durable materials ensure long-term reliability and performance
