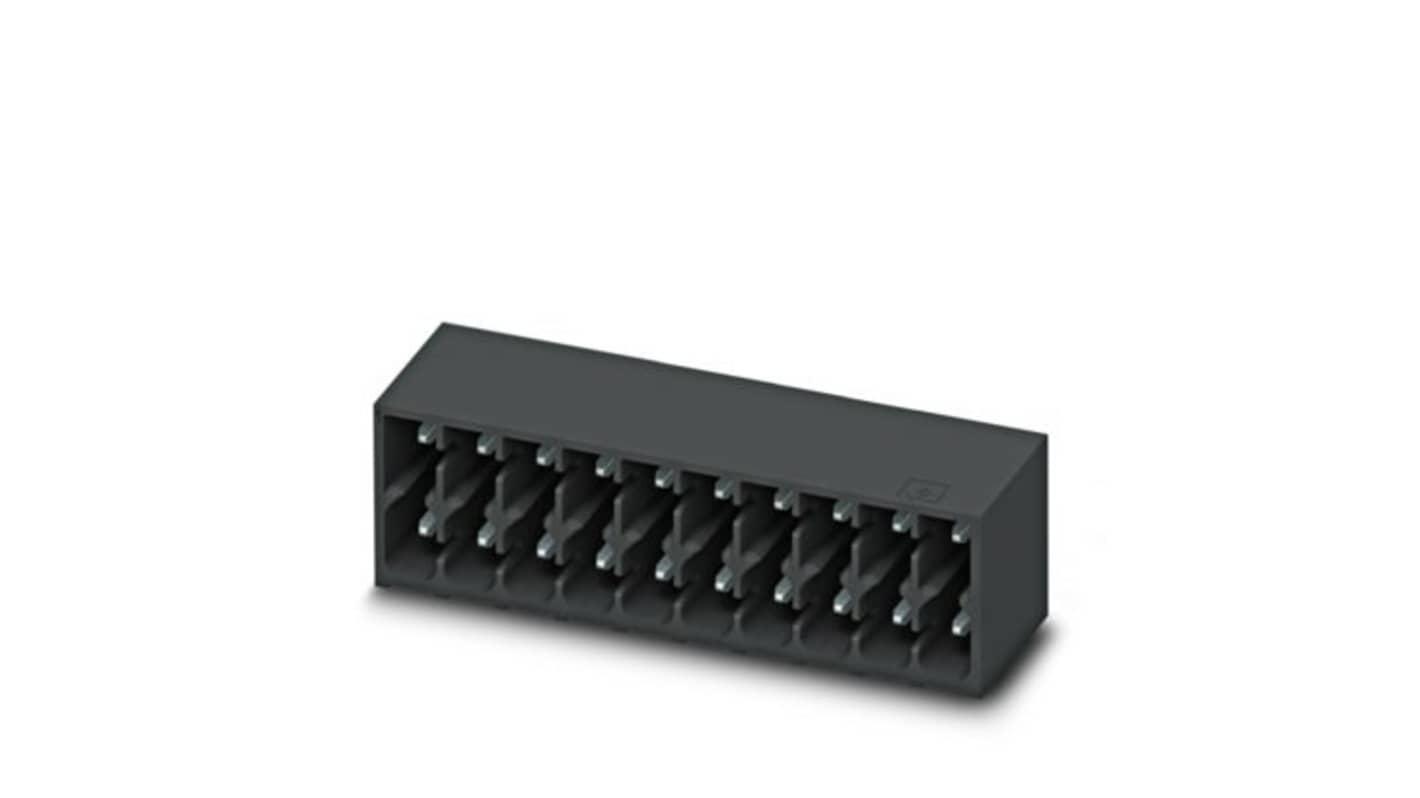

Phoenix Contact DMC Series Straight Wave Soldering Mount PCB Header, 36 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£680.52

(exc. VAT)

£816.62

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£680.52£13.61

*price indicative

RS Stock No.:
489-152
Mfr. Part No.:
1786992
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

DMC

Product Type

PCB Header

Current

8A

Pitch

3.5mm

Number of Contacts

36

Housing Material

Liquid Crystal Polymer

Number of Rows

2

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON DFMC 1

Mount Type

Wave Soldering Mount

Contact Plating

Nickel, Tin

Contact Material

Copper Alloy

Row Pitch

3.5mm

Termination Type

Solder

Minimum Operating Temperature

-40°C

Tail Pin Length

2mm

Maximum Operating Temperature

100°C

Contact Gender

Male

Standards/Approvals

cULus Recognised, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, ISO 6988:1985-02, UL 94 V0, VDE

Mating Pin Length

2mm

Voltage

160 V

COO (Country of Origin):
DE
The Phoenix Contact DMC 1.5/18-G1-3.5 P20THR is an advanced PCB header designed for seamless integration into modern electronic systems. This innovative connector features a compact design that supports efficient use of space, making it ideal for a variety of applications where reliability and performance are paramount. With a nominal current rating of 8 A and a rated voltage of 160 V, this product ensures optimal power distribution within your circuit. Its dual-row configuration and linear pinning layout offer high-density connections, enhancing the overall functionality of your electronic devices. Carefully engineered for durability, the DMC 1.5/18-G1-3.5 P20THR is perfect for use in both automated and manual assembly processes, reflecting unparalleled quality and a commitment to excellence in design and performance.

Designed for smooth integration into SMT soldering processes

Supports multiple levels of conductor connections for enhanced contact density

Compact size facilitates use in space-constrained applications

Utilises THR soldering for reliable mounting

WEEE/RoHS compliant to ensure environmental responsibility

Delivers high performance with low contact resistance

Versatile pin layout allows for varied application parameters

Tested to endure rigorous mechanical and electrical conditions

Provides an effective locking mechanism without additional components

Challenged by a comprehensive climate and durability testing process
