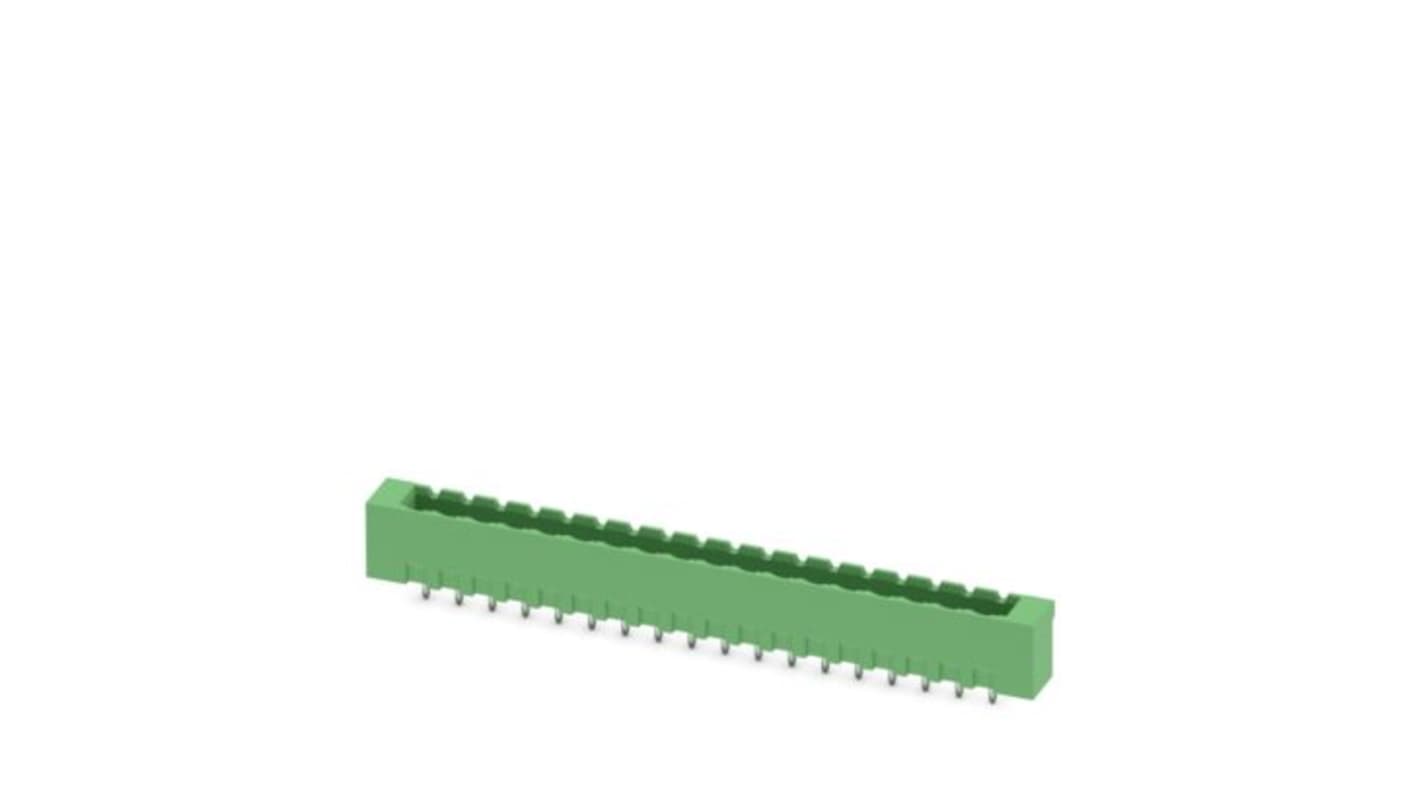

Phoenix Contact MSTBVA Series Straight Flange PCB Header, 18 Contact(s), 5.08 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£380.82

(exc. VAT)

£456.98

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 20 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£380.82£7.616

*price indicative

RS Stock No.:
521-522
Mfr. Part No.:
1809429
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

MSTBVA

Product Type

PCB Header

Current

12A

Pitch

5.08mm

Housing Material

Polybutylene Terephthalate

Number of Contacts

18

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Flange

Connector System

COMBICON MSTB 2.5

Contact Plating

Tin Plated

Contact Material

Copper Alloy

Minimum Operating Temperature

-40°C

Row Pitch

5.08mm

Termination Type

Solder

Contact Gender

Male

Maximum Operating Temperature

100°C

Tail Pin Length

3.9mm

Standards/Approvals

CSA, cULus Recognised, VDE

Mating Pin Length

3.9mm

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact PCB header exemplifies innovative design and versatility, catering to modern electronic needs with its advanced specifications. The MSTBVA 2.5/18-G-5.08-LR model is engineered for seamless integration and efficient performance in various applications, delivering reliability and optimal functionality. This product features a robust construction with a nominal current of 12 A and a rated voltage of 320 V, ensuring it meets the robust demands of industrial environments. Designed for use in wave soldering operations, the linear pin layout allows for easy installation and a secure connection, while the intuitive locking mechanism simplifies the user experience. Ideal for customizable device designs, this header is perfect for diverse connectivity solutions.

Offers compatibility with multiple connection technologies for enhanced flexibility

Equipped with an automatic locking and release feature for effortless operation

Utilises a closed contour design for superior stability and durability

Facilitates vertical connections that enable multi-row arrangements

Ensures compliance with WEEE/RoHS standards for environmentally friendly use

Constructed with a tin-plated copper alloy for effective conductivity

Features a durable insulating material that provides excellent electrical insulation

Designed for a wide temperature range, suitable for various operational environments

Comes packaged in cardboard for eco-conscious delivery
