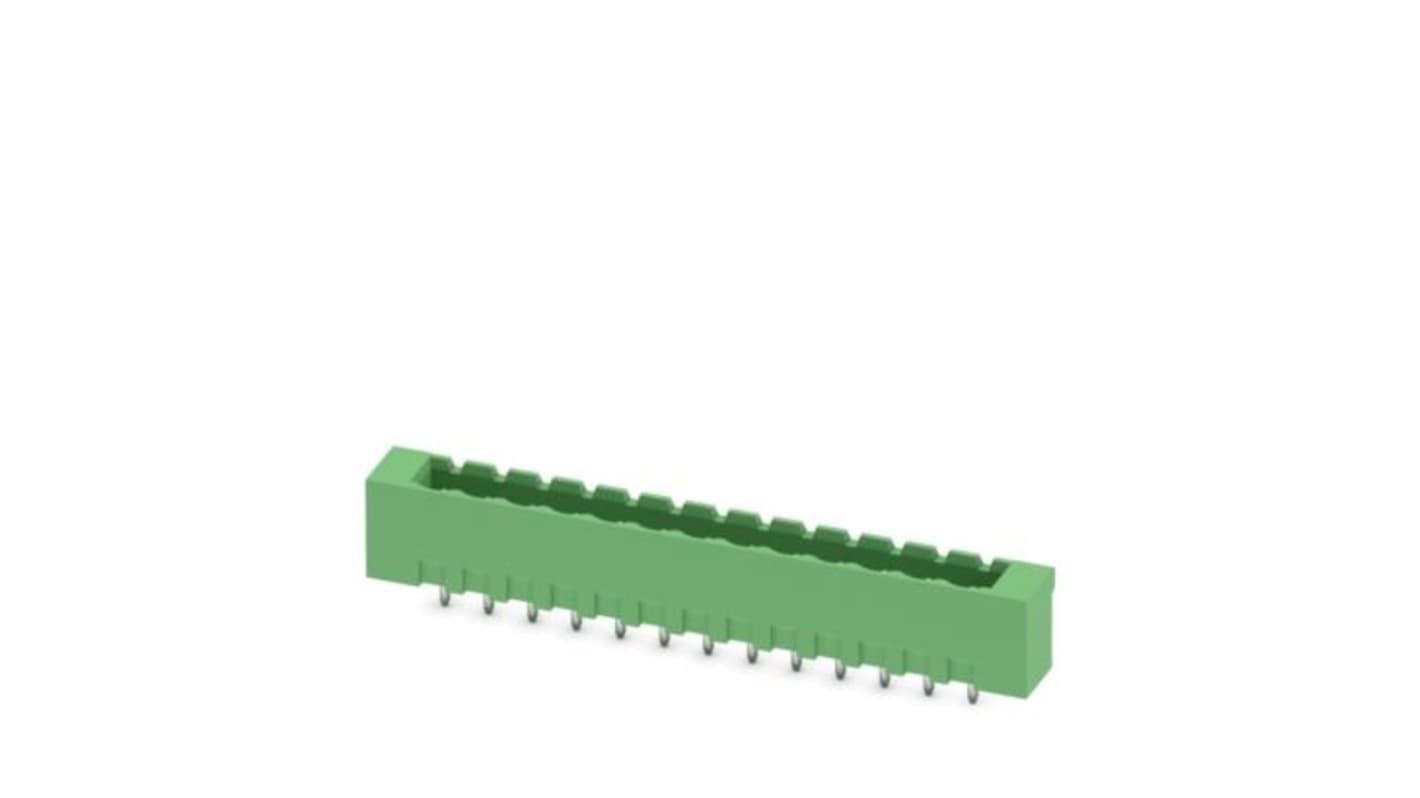

Phoenix Contact MSTBVA Series Straight Wave Soldering Mount PCB Header, 13 Contact(s), 5.08 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£284.99

(exc. VAT)

£341.99

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£284.99£5.70

*price indicative

RS Stock No.:
518-616
Mfr. Part No.:
1809377
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

MSTBVA

Pitch

5.08mm

Current

12A

Housing Material

Polybutylene Terephthalate

Number of Contacts

13

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON MSTB 2.5

Mount Type

Wave Soldering Mount

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Termination Type

Solder

Row Pitch

5.08mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

Contact Gender

Male

Tail Pin Length

3.9mm

Standards/Approvals

CSA, cULus Recognised, VDE

Mating Pin Length

3.9mm

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact PCB header from the MSTBVA 2.5 series offers remarkable versatility for a variety of device designs. Engineered for seamless integration in diverse applications, it features a robust locking mechanism that ensures secure connections while allowing intuitive release. With a green colour finish and made from durable materials, this connector is designed to withstand challenging conditions without compromising performance. Its compact dimensions allow for high-density arrangements on printed circuit boards, making it an ideal choice for modern electronic devices. The well-considered design not only meets stringent safety standards but also promotes ease of installation through its wave soldering mounting method, ensuring a reliable solution for your connectivity needs.

Offers maximum flexibility for connectors with varying technology needs

Intuitive Lock and Release mechanism enhances usability

Designed for vertical connections, enabling efficient multi-row PCB arrangements

Constructed for optimum stability with a closed contour pin design

Facilitates global usage with its recognised mounting principle

Compliant with international safety and environmental standards

Optimises installation time with straightforward wave soldering technique
