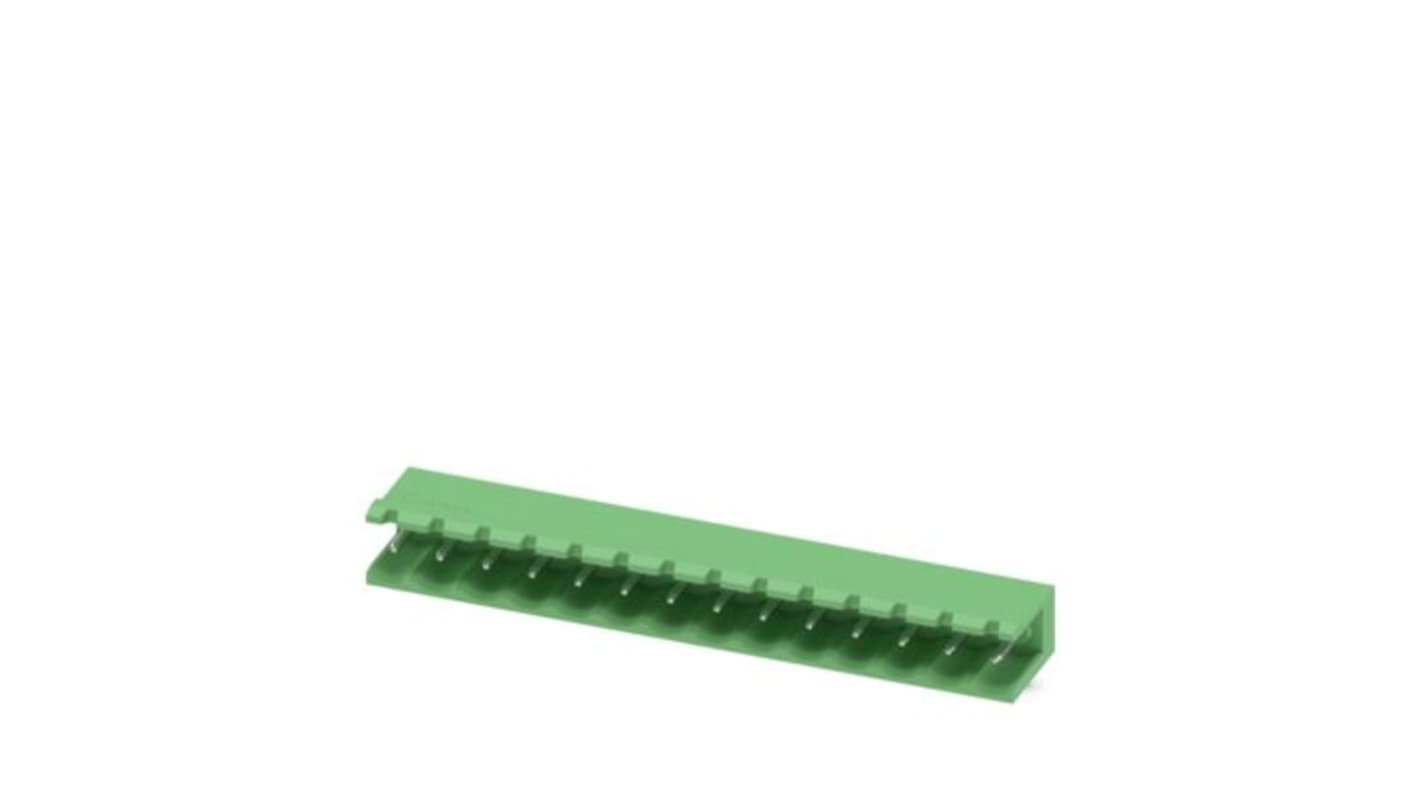

Phoenix Contact MSTB Series Straight Wave Soldering Mount PCB Header, 14 Contact(s), 5.08 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£270.82

(exc. VAT)

£324.98

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 20 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£270.82£5.416

*price indicative

RS Stock No.:
518-650
Mfr. Part No.:
1759130
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

MSTB

Pitch

5.08mm

Current

12A

Number of Contacts

14

Housing Material

Polybutylene Terephthalate

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Wave Soldering Mount

Connector System

COMBICON MSTB 2

Contact Plating

Tin Plated

Contact Material

Copper Alloy

Termination Type

Solder

Row Pitch

5.08mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

Tail Pin Length

3.23mm

Contact Gender

Male

Mating Pin Length

3.23mm

Standards/Approvals

CSA 13631-2585951, cULus E60425-19931011, IEC 60068-2-70:1995-12, IEC 60112, IEC 60512-1-1:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, ISO 6988:1985-02, UL 94 V0, VDE 40050648, WEEE/RoHS

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact MSTB 2.5/14-G-5.08 is a highly versatile PCB header designed to meet the demanding needs of modern electronic applications. This product allows for efficient and flexible device design with pin connections adapted for various technologies. Its design accommodates easy PCB replacements due to the innovative plug-in module functionality. Crafted with reliability in mind, this header offers a combination of robust electrical performance and convenient assembly options, making it an ideal choice for both new designs and upgrades in existing systems. With its standardisation and compact build, it enhances the efficiency of PCB assembly without compromising on quality or performance, ensuring that devices operate seamlessly in diverse environments. Whether for industrial or commercial applications, the MSTB series signifies a reliable connection solution tailored for today’s demanding electronics industry.

Maximum device design flexibility through compatibility with various connection technologies

Facilitates easy module replacement to streamline maintenance and upgrades

Designed for global applicability, utilising standard mounting principles

Allows for parallel plug-in direction to the PCB for efficient space management

Supports dense PCB layouts with flexible alignment options

Streamlined assembly process through wave soldering compatibility

WEEE/RoHS-compliant, ensuring environmental safety

Constructed from high-quality insulating materials for reliable performance

Impressive mechanical resistance validated through stringent testing protocols
