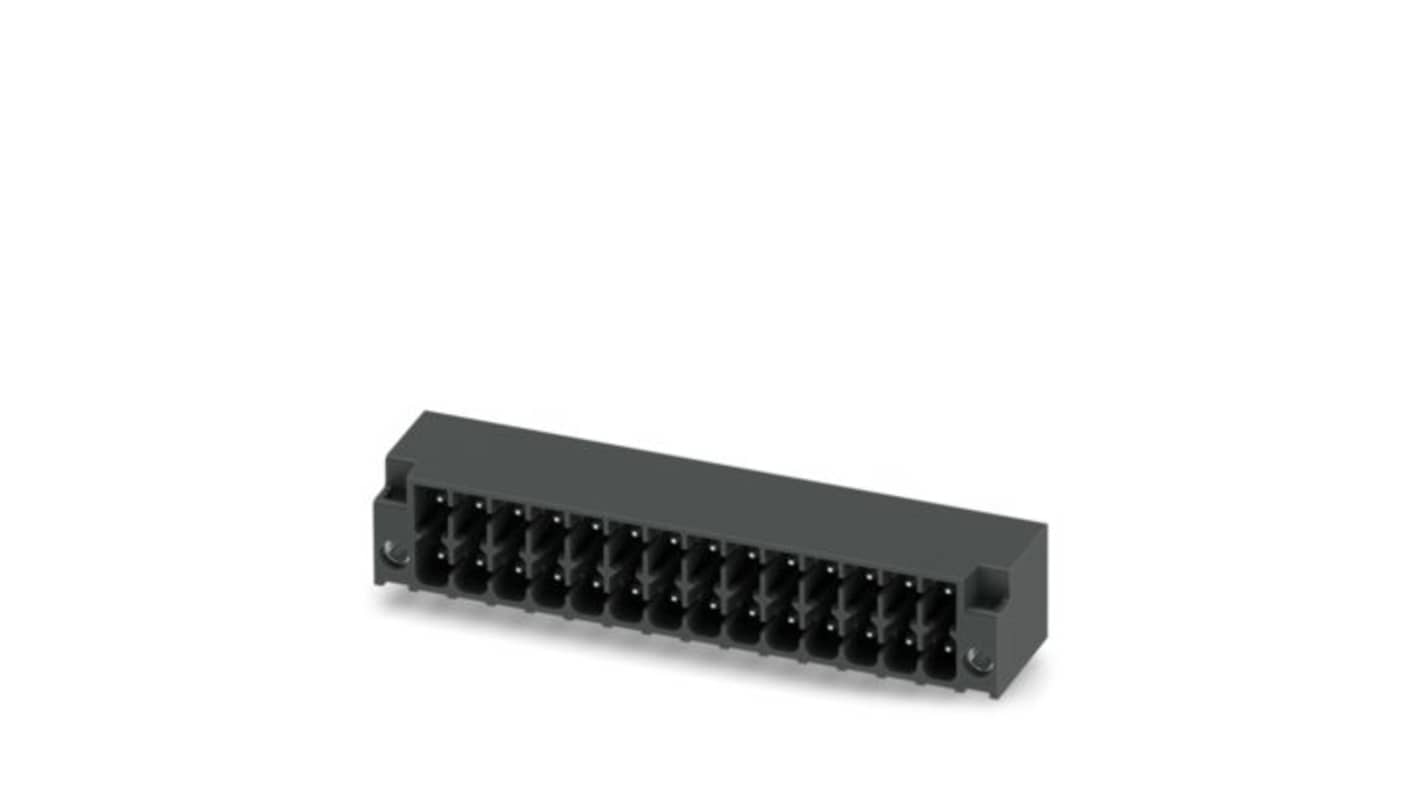

Phoenix Contact DMC Series Straight Through Hole PCB Header, 28 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 517-244
- Mfr. Part No.:
- 1874483
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£600.12
(exc. VAT)
£720.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £600.12 | £12.002 |
*price indicative
- RS Stock No.:
- 517-244
- Mfr. Part No.:
- 1874483
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | PCB Header | |
| Series | DMC | |
| Current | 8A | |
| Pitch | 3.5mm | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 28 | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | COMBICON DFMC 1 | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder Mount | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 3.5mm | |
| Tail Pin Length | 2.6mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Mating Pin Length | 2.6mm | |
| Standards/Approvals | cULus Recognised, VDE | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type PCB Header | ||
Series DMC | ||
Current 8A | ||
Pitch 3.5mm | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 28 | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System COMBICON DFMC 1 | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Termination Type Solder Mount | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 3.5mm | ||
Tail Pin Length 2.6mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Mating Pin Length 2.6mm | ||
Standards/Approvals cULus Recognised, VDE | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB header, designed for seamless integration into the SMT soldering process, exemplifies reliability and efficiency. Built to support the demanding needs of modern applications, it offers a compact size without compromising on performance. The innovative locking and release mechanism enhances mechanical stability while facilitating easy handling. Ideal for environments that require high-density connections, this product stands out with its robust construction and excellent electrical properties. It provides exceptional contact reliability with optimal current carrying capabilities, making it an indispensable component for various projects. Discover the perfect blend of versatility and quality tailored to meet your needs in PCB design and connectivity.
Designed for superior mechanical stability
Offers efficient integration into automated assembly processes
Features a locking and release system for intuitive operation
Facilitates higher contact density through multi-level conductor connections
Ensures reliable performance in space-constrained applications
