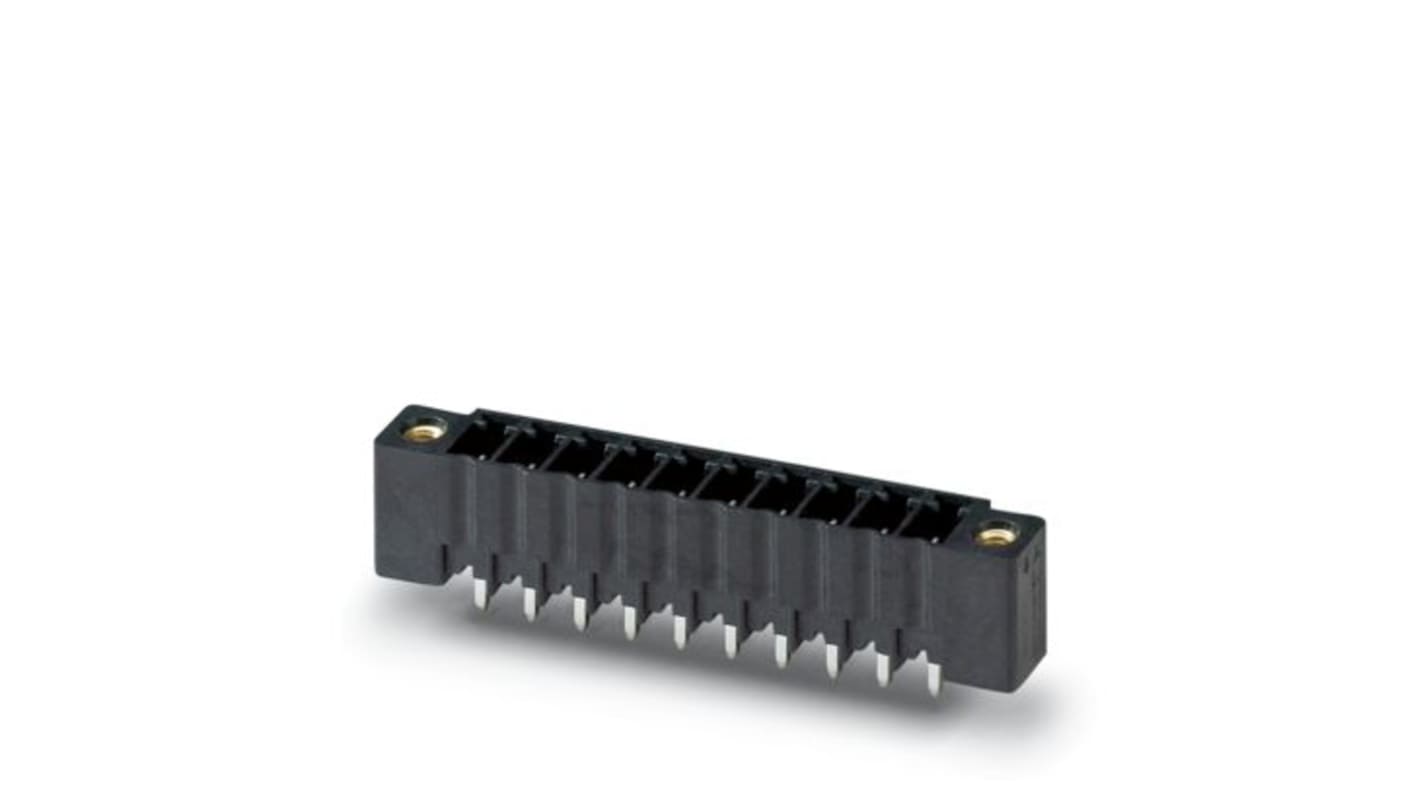

Phoenix Contact MCV Series Through Hole PCB Header, 17 Contact(s), 3.5 mm Pitch, 1 Row, Shrouded
- RS Stock No.:
- 517-116
- Mfr. Part No.:
- 1713395
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 517-116
- Mfr. Part No.:
- 1713395
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | MCV | |
| Product Type | PCB Header | |
| Pitch | 3.5mm | |
| Current | 8A | |
| Number of Contacts | 17 | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Rows | 1 | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | COMBICON MC 1.5 | |
| Mount Type | Through Hole | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Row Pitch | 3.5mm | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 2mm | |
| Contact Gender | Male | |
| Standards/Approvals | cULus Recognised, VDE | |
| Mating Pin Length | 2mm | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series MCV | ||
Product Type PCB Header | ||
Pitch 3.5mm | ||
Current 8A | ||
Number of Contacts 17 | ||
Housing Material Liquid Crystal Polymer | ||
Number of Rows 1 | ||
Shrouded/Unshrouded Shrouded | ||
Connector System COMBICON MC 1.5 | ||
Mount Type Through Hole | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Row Pitch 3.5mm | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 2mm | ||
Contact Gender Male | ||
Standards/Approvals cULus Recognised, VDE | ||
Mating Pin Length 2mm | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB header delivers exceptional performance and reliability for a variety of applications. Designed specifically for seamless integration into SMT soldering processes, it features a robust screwable flange that ensures superior mechanical stability. Its single-row design accommodates 17 potential connections, allowing for efficient and flexible device arrangements. The MCV 1.5/17-GF-3.5 P20 THR model is particularly beneficial in scenarios requiring a compact footprint while maintaining high current handling capabilities. This product is not only efficient but also complies with WEEE and RoHS directives, making it an environmentally conscious choice for modern electronic designs.
Offers a reliable locking mechanism to prevent accidental disconnection
Utilises a linear pin layout for straightforward installation and maintenance
Designed for maximum flexibility with compatibility across different connection technologies
Features a moisture sensitivity level of MSL 1 for enhanced durability
Provides thorough electrical testing to ensure reliability in varied conditions
The compact dimensions allow for space-saving configurations on PCBs
Meets rigorous international standards for quality and performance
