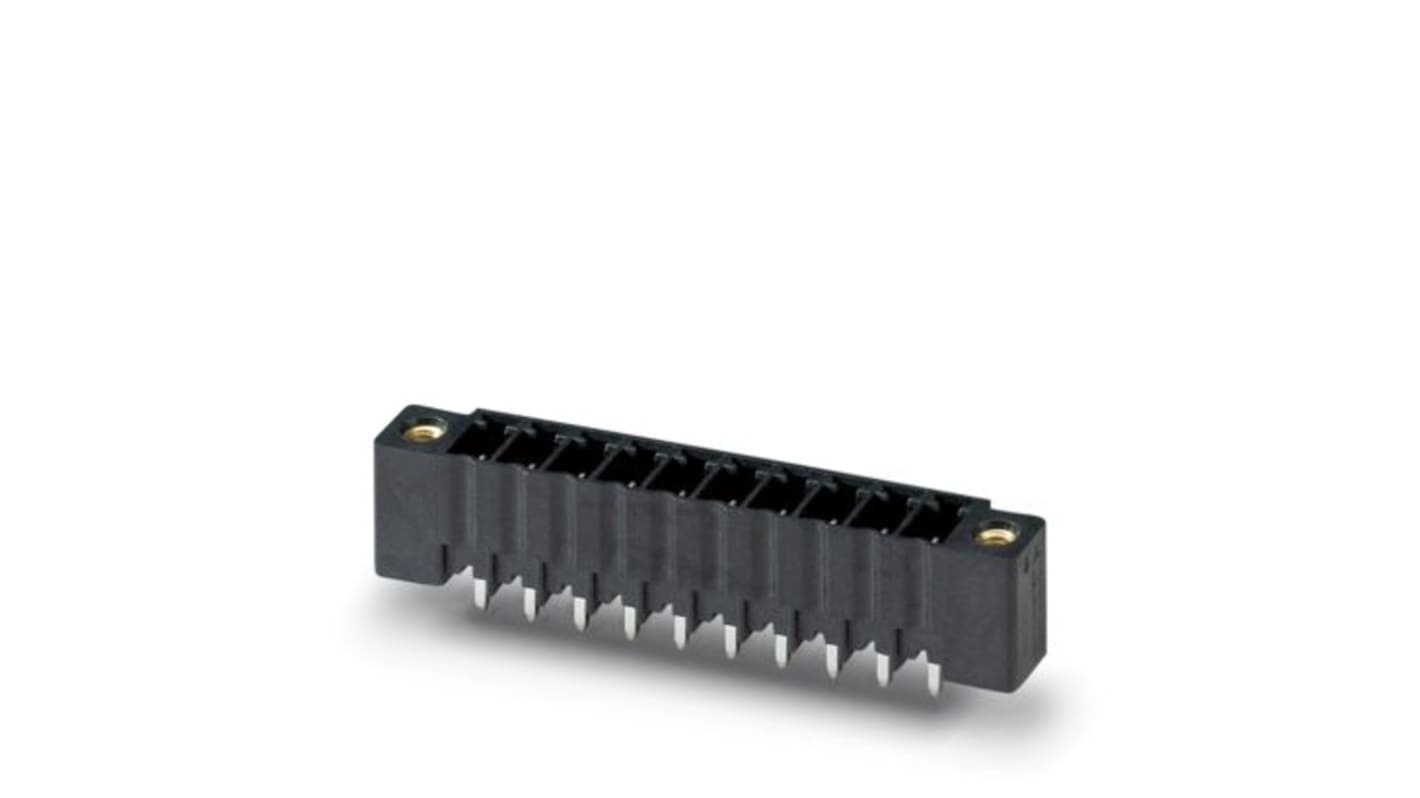

Phoenix Contact MCV Series Straight Through Hole PCB Header, 17 Contact(s), 3.81 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£477.48

(exc. VAT)

£572.98

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 03 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£477.48£9.55

*price indicative

RS Stock No.:
520-978
Mfr. Part No.:
1829014
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

MCV

Product Type

PCB Header

Pitch

3.81mm

Current

8A

Housing Material

Liquid Crystal Polymer

Number of Contacts

17

Number of Rows

1

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Through Hole

Connector System

COMBICON MC 1.5

Contact Material

Copper Alloy

Contact Plating

Tin Plated

Minimum Operating Temperature

-40°C

Termination Type

Solder

Row Pitch

3.81mm

Contact Gender

Male

Tail Pin Length

2mm

Maximum Operating Temperature

100°C

Mating Pin Length

2mm

Standards/Approvals

cULus Recognised, VDE approval of drawings

Voltage

160 V

COO (Country of Origin):
DE
The Phoenix Contact innovative PCB header offers unmatched versatility for modern electronics design, blending robust performance with sophisticated design elements. Tailored specifically for through-hole reflow applications, the product promises seamless integration into surface-mount technology soldering processes, ensuring reliable connectivity in compact electronic systems. With a focus on mechanical stability, the header features a screwable flange that enhances its resilience, making it ideal for demanding environments. Its linear pinning layout and compact dimensions allow for efficient use of space on PCBs, accommodating diverse connector technologies without compromising on design flexibility. Backed by comprehensive approvals and adherence to international standards, this product is engineered to meet high performance and safety criteria, catering to the needs of engineers and designers alike.

Designed to facilitate integration into surface-mount soldering processes

Screwable flange guarantees superior mechanical stability

Vertical connection capability supports multi-row arrangements on PCBs

Accommodates various connection technologies for maximum design flexibility

Weight-efficient design enables cost-effective shipping and handling

Complies with rigorous international standards, ensuring reliability and safety

Solderable using reflow processes, enhancing manufacturing efficiency
