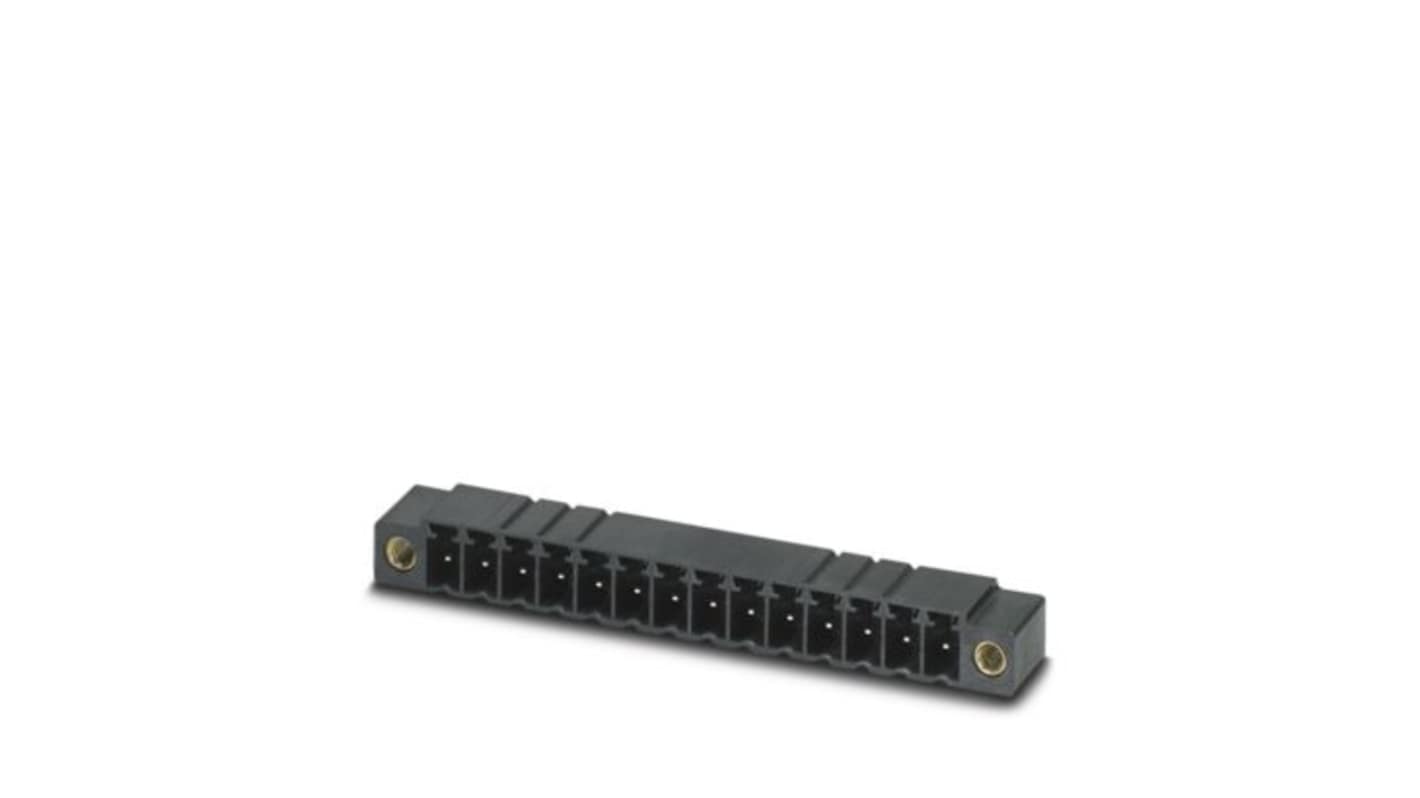

Phoenix Contact MC Series Straight Solder Mount PCB Header, 15 Contact(s), 3.5mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 517-111
- Mfr. Part No.:
- 1713372
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£433.47
(exc. VAT)
£520.16
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £433.47 | £8.669 |
*price indicative
- RS Stock No.:
- 517-111
- Mfr. Part No.:
- 1713372
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | MC | |
Pitch | 3.5mm | |
Number of Contacts | 15 | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Solder Mount | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series MC | ||
Pitch 3.5mm | ||
Number of Contacts 15 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Solder Mount | ||
- COO (Country of Origin):
- DE
The Phoenix Contact MC 1.5/15-GF-3.5 P20 THR is an advanced PCB header designed to deliver reliable connectivity in compact electronic applications. Engineered for efficiency, this component simplifies integration within SMT soldering processes while providing superior mechanical stability through its screwable flange mechanism. With a striking black finish, this product is crafted from LCP material, ensuring durability and compliance with WEEE/RoHS standards. The header features a linear pinning layout with a pitch of 3.5 mm, allowing for up to 15 connections across a single row, making it an ideal choice for space-constrained designs. With its robust electrical properties, the header supports a nominal current of 8 A and a rated voltage of 160 V, ensuring reliable performance in demanding environments. This product stands ready to meet various design needs, facilitating flexibility in connector choice and device architecture.
Compact design ideal for high-density applications
Robust structure ensures long-lasting performance even under stress
Versatile compatibility with different connection technologies
Black colour finish enhances aesthetic integration with other components
Pin layout optimised for easy installation and maintenance
Screw locking mechanism enhances mechanical stability during operation
Moisture Sensitive Level of 1, ensuring reliability in variable environments
Multiple approvals ensure meeting safety and compliance standards
Robust structure ensures long-lasting performance even under stress
Versatile compatibility with different connection technologies
Black colour finish enhances aesthetic integration with other components
Pin layout optimised for easy installation and maintenance
Screw locking mechanism enhances mechanical stability during operation
Moisture Sensitive Level of 1, ensuring reliability in variable environments
Multiple approvals ensure meeting safety and compliance standards
