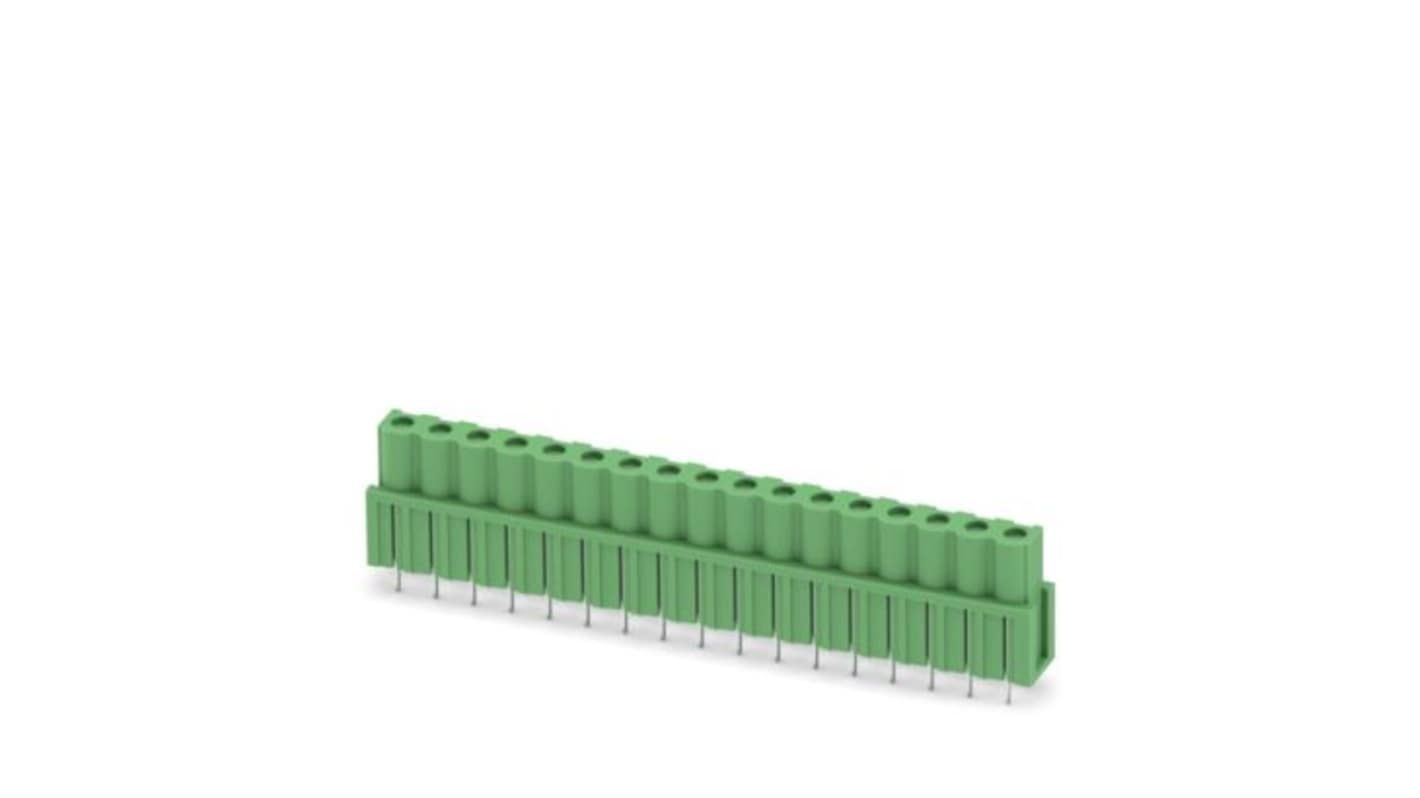

Phoenix Contact ICV Series Wave Soldering Mount PCB Header, 17 Contact(s), 5.08 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£739.14

(exc. VAT)

£886.97

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£739.14£14.783

*price indicative

RS Stock No.:
517-064
Mfr. Part No.:
1786093
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

ICV

Product Type

PCB Header

Current

12A

Pitch

5.08mm

Number of Contacts

17

Housing Material

Polyamide

Number of Rows

1

Shrouded/Unshrouded

Shrouded

Connector System

COMBICON MSTB 2.5

Mount Type

Wave Soldering Mount

Contact Plating

Tin Plated

Contact Material

Copper Alloy

Row Pitch

5.08mm

Minimum Operating Temperature

-40°C

Termination Type

Solder

Maximum Operating Temperature

100°C

Tail Pin Length

3.6mm

Contact Gender

Female

Standards/Approvals

CSA, cULus, EN 60695-10-2, EN 60695-2-12, EN 60695-2-13, IEC 60068-2-70, IEC 60068-2-82, IEC 60112, IEC 60512-1-1, IEC 60512-1-2, IEC 60512-13-5, IEC 60512-15-1, IEC 60664-1, IEC 61984, ISO 6988, JEDEC JESD 201, UL 94 V0, VDE

Mating Pin Length

3.6mm

Voltage

32 V

COO (Country of Origin):
DE
The Phoenix Contact PCB header ICV 2.5/17-G-5.08 is designed to enhance flexibility in device design while providing a reliable connection solution. Featuring a nominal current rating of 12 A and an impressive rated voltage of up to 320 V, this component caters to a variety of applications, ensuring optimal performance and safety. Its innovative inverted design combines socket contacts with a user-friendly mounting method, allowing for seamless integration into existing systems. The product is built with WEEE/RoHS compliance in mind, utilising hot-dip tin-plated contacts for superior conductivity, making it an environmentally responsible choice. This header accommodates multiple connection technologies, making it ideal for diverse projects and ensuring maximum efficiency in device functionality.

Offers enhanced flexibility for varying device designs

Facilitates easy PCB replacement via plug-in modules

Utilises a well-known mounting principle for global compatibility

Incorporates inverted header design for touch-proof outputs

Ensured compliance with WEEE/RoHS standards for responsible use

Supports a robust pin layout with linear pinning for straightforward installation

Designed for wave soldering, ensuring reliable and consistent connections

Emphasises ease of use while eliminating the need for complex fittings

Provides excellent contact resistance for improved electrical performance

Backing by stringent testing ensures durability and long-lasting functionality
