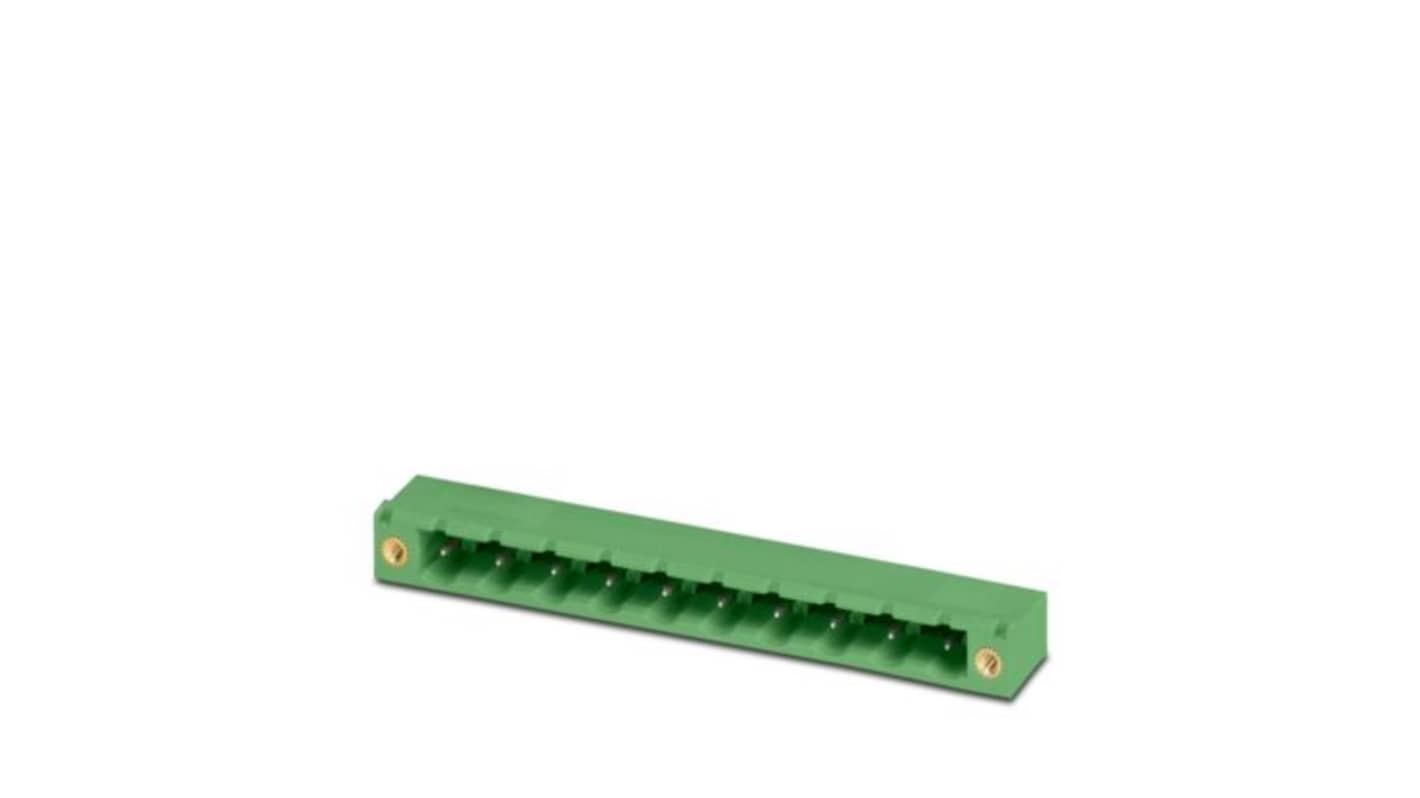

Phoenix Contact GMSTB Series Angled Wave Soldering Mount PCB Header, 11 Contact(s), 7.62 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£362.15

(exc. VAT)

£434.58

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£362.15£7.243

*price indicative

RS Stock No.:
516-991
Mfr. Part No.:
1806313
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Series

GMSTB

Product Type

PCB Header

Current

12A

Pitch

7.62mm

Housing Material

Polyamide

Number of Contacts

11

Number of Rows

1

Orientation

Angled

Shrouded/Unshrouded

Shrouded

Mount Type

Wave Soldering Mount

Connector System

COMBICON MSTB 2.5

Contact Plating

Tin Plated

Contact Material

Copper Alloy

Row Pitch

7.62mm

Minimum Operating Temperature

-40°C

Termination Type

Solder

Tail Pin Length

3.23mm

Contact Gender

Male

Maximum Operating Temperature

105°C

Mating Pin Length

3.23mm

Standards/Approvals

CSA 13631-2585951, cULus E60425-19931013, IEC 60068-2-27:2008-02, IEC 60068-2-6:2007-12, IEC 60068-2-70:1995-12, IEC 60512-1-1:2002-02, IEC 60512-1-2:2002-02, IEC 60512-13-5:2006-02, IEC 60512-15-1:2008-05, IEC 60512-3-1:2002-02, IEC 60512-5-1:2002-02, IEC 60664-1:2007-04, ISO 6988:1985-02, VDE 40050648

Voltage

63 V

COO (Country of Origin):
DE
The Phoenix Contact PCB header is designed to excel in demanding applications, providing robust performance in electrical connectivity. With the versatility to handle nominal currents of 12 A and voltages of up to 630 V, it ensures reliability across various uses. The compact design features a 7.62 mm pitch, allowing for efficient space utilisation on PCB layouts. The product’s green housing not only contributes to its aesthetic appeal but aligns with industry standards for utilities. Made from compliant materials, it guarantees safer operation while enhancing durability. Its screw locking mechanism adds an extra layer of security, ensuring secure connections even in rigorous environments. This product is an ideal choice for professionals seeking quality and dependable components for their electronic designs.

Compatible with wave soldering for efficient assembly

Offers a linear pin layout for straightforward installation

Designed for use within a threaded flange mounting system

Composed of WEEE/RoHS-compliant materials, ensuring environmental safety

Features screw locking for added reliability during operation

Proven to endure a range of mechanical and electrical tests for quality assurance
