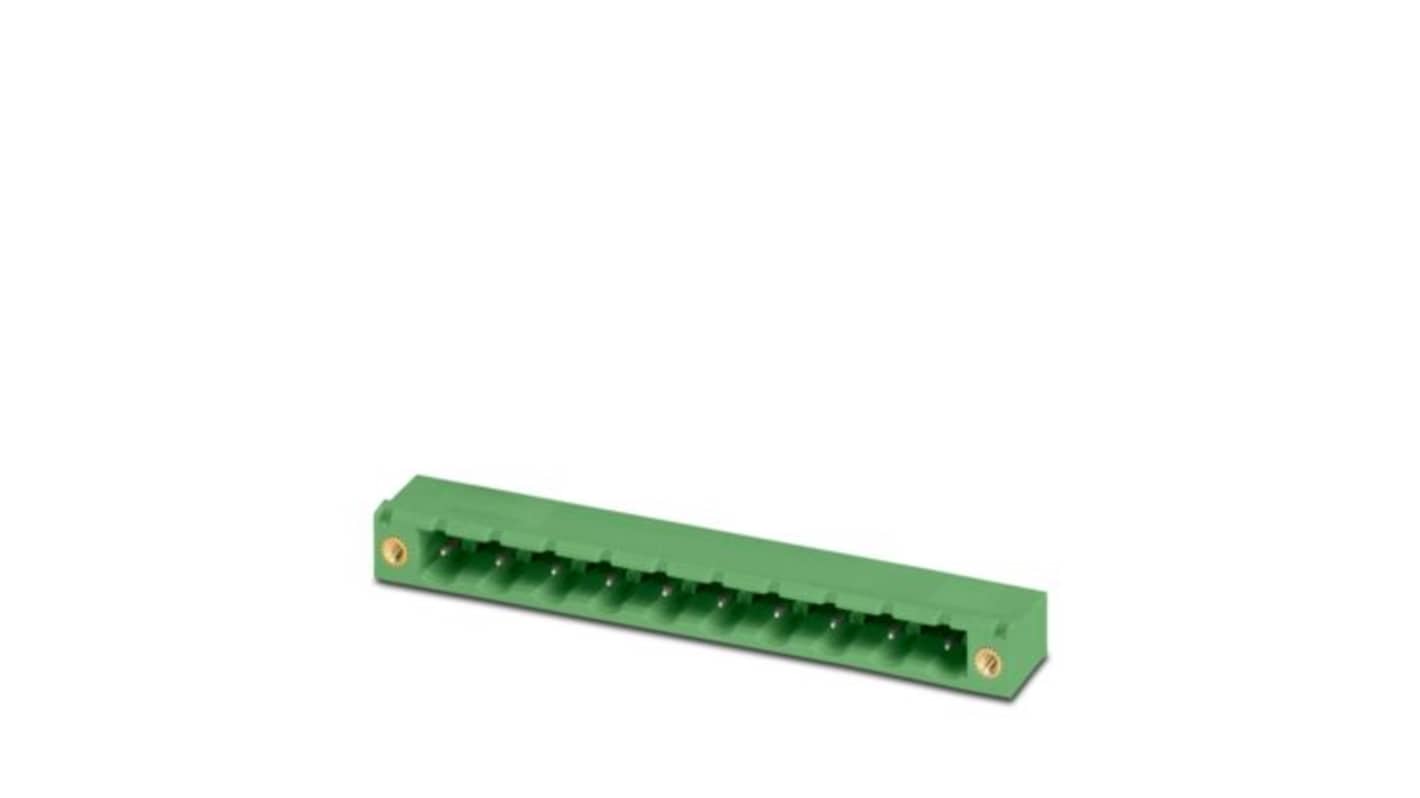

Phoenix Contact GMSTB Series Straight Wave Soldering PCB Header, 10 Contact(s), 7.62mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 489-050
- Mfr. Part No.:
- 1806300
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£339.15
(exc. VAT)
£406.98
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £339.15 | £6.783 |
*price indicative
- RS Stock No.:
- 489-050
- Mfr. Part No.:
- 1806300
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Series | GMSTB | |
Pitch | 7.62mm | |
Number of Contacts | 10 | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Wave Soldering | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Series GMSTB | ||
Pitch 7.62mm | ||
Number of Contacts 10 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Wave Soldering | ||
- COO (Country of Origin):
- DE
The Phoenix Contact PCB header is designed to meet the highest standards of performance in demanding applications. With a nominal current of 12 A and rated voltage of 630 V, it is engineered to ensure reliable connections in various industrial settings. This connector features a unique angled solder pin design enabling optimal performance in wave soldering processes. The green housing made of durable PA material not only offers excellent insulation properties but also ensures high resistance to environmental stressors. Its linear pinning layout facilitates easy installation, while the screw locking mechanism enhances stability. A perfect choice for those seeking a blend of functionality and reliability in their electronic assemblies, this PCB header stands out in a competitive market, ready to deliver superior performance in diverse applications.
Designed for 630 V applications, ensuring high-performance under pressure
Angled solder pins improve accessibility during assembly
Threaded flange mounting offers enhanced stability and ease of installation
Compliance with WEEE/RoHS standards guarantees a commitment to environmental safety
Lightweight construction aids in reducing overall assembly weight
Operating temperature range from -40 °C to 105 °C ensures versatility across environments
Durable PA housing material provides exceptional insulation characteristics
Angled solder pins improve accessibility during assembly
Threaded flange mounting offers enhanced stability and ease of installation
Compliance with WEEE/RoHS standards guarantees a commitment to environmental safety
Lightweight construction aids in reducing overall assembly weight
Operating temperature range from -40 °C to 105 °C ensures versatility across environments
Durable PA housing material provides exceptional insulation characteristics
