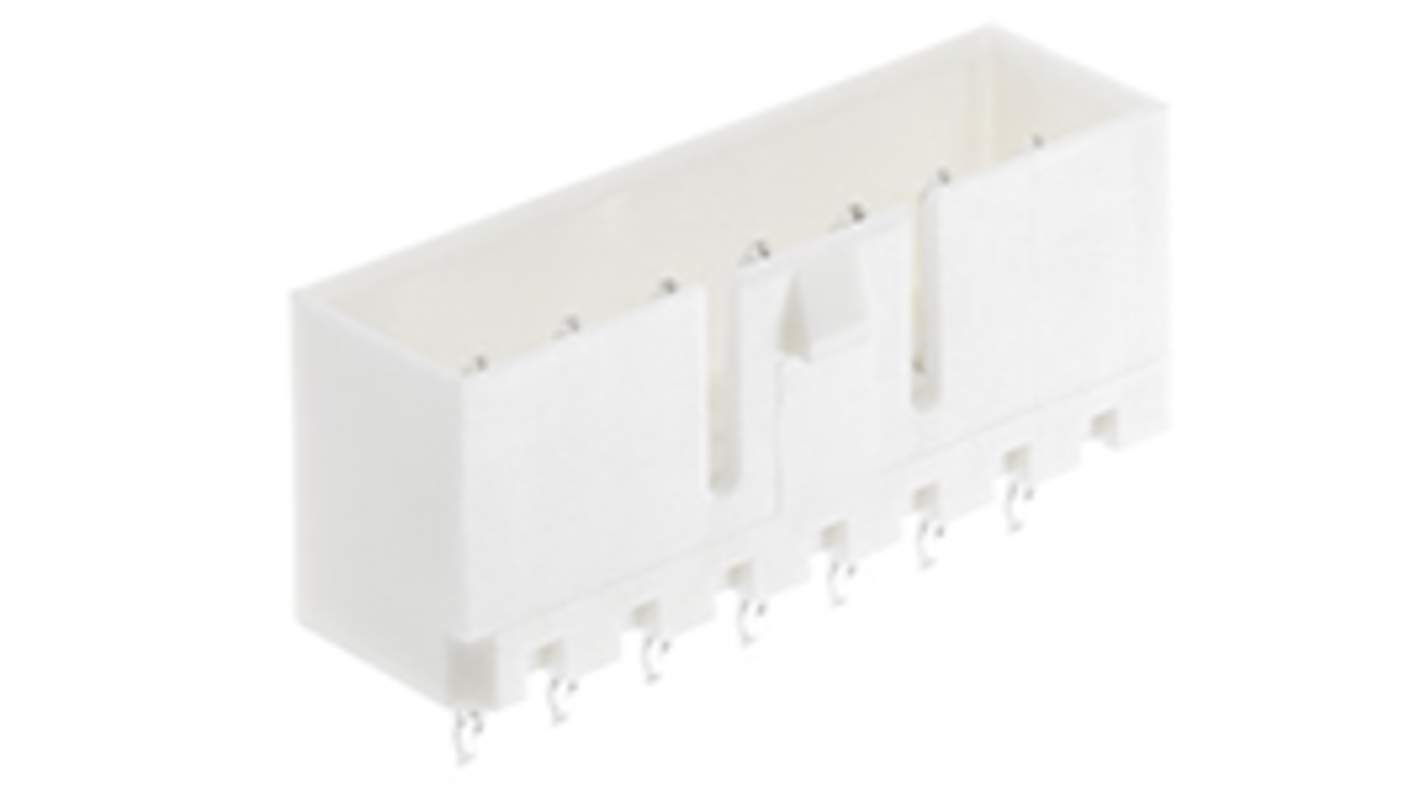

Molex 53258 Series Vertical Board PCB Header, 13 Contact(s), 3.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 506-035
- Mfr. Part No.:
- 53258-1329
- Brand:
- Molex
Subtotal (1 tray of 200 units)*
£225.88
(exc. VAT)
£271.06
(inc. VAT)
Stock information currently inaccessible
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £225.88 | £1.129 |
*price indicative
- RS Stock No.:
- 506-035
- Mfr. Part No.:
- 53258-1329
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 53258 | |
| Product Type | PCB Header | |
| Pitch | 3.5mm | |
| Current | 5.5A | |
| Number of Contacts | 13 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Board | |
| Contact Material | Brass | |
| Contact Plating | Tin | |
| Termination Type | Solder | |
| Row Pitch | 3.5mm | |
| Minimum Operating Temperature | -40°C | |
| Tail Pin Length | 3.5mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | UL E29179 | |
| Voltage | 25 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 53258 | ||
Product Type PCB Header | ||
Pitch 3.5mm | ||
Current 5.5A | ||
Number of Contacts 13 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Board | ||
Contact Material Brass | ||
Contact Plating Tin | ||
Termination Type Solder | ||
Row Pitch 3.5mm | ||
Minimum Operating Temperature -40°C | ||
Tail Pin Length 3.5mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals UL E29179 | ||
Voltage 25 V | ||
- COO (Country of Origin):
- KR
The TE Connectivity Mighty-spox header is designed to revolutionise your power and wire-to-board connections with its robust vertical configuration. Offering an impressive 13 circuits and a pitch of 3.50mm, this product ensures secure and reliable performance, making it ideal for a variety of applications. With a durable brass contact material and dependable plating, it expertly facilitates efficient connectivity while maintaining compliance with industry standards. The header excels in harsh environments, comfortably operating in temperatures ranging from -40°C to +105°C. Its thoughtful design includes features like lock-to-mating part functionality for enhanced stability, ensuring a seamless integration into your projects.
Vertical orientation optimises space for efficient design
Brass contact material ensures durability and excellent conductivity
Locking mechanism provides secure attachment to prevent disconnection
Compact design suitable for densely populated circuit boards
Sufficient mating cycles promote extended product lifespan
Compliance with multiple regulatory standards ensures broad use
Fully shrouded design reduces the risk of misalignment during mating
