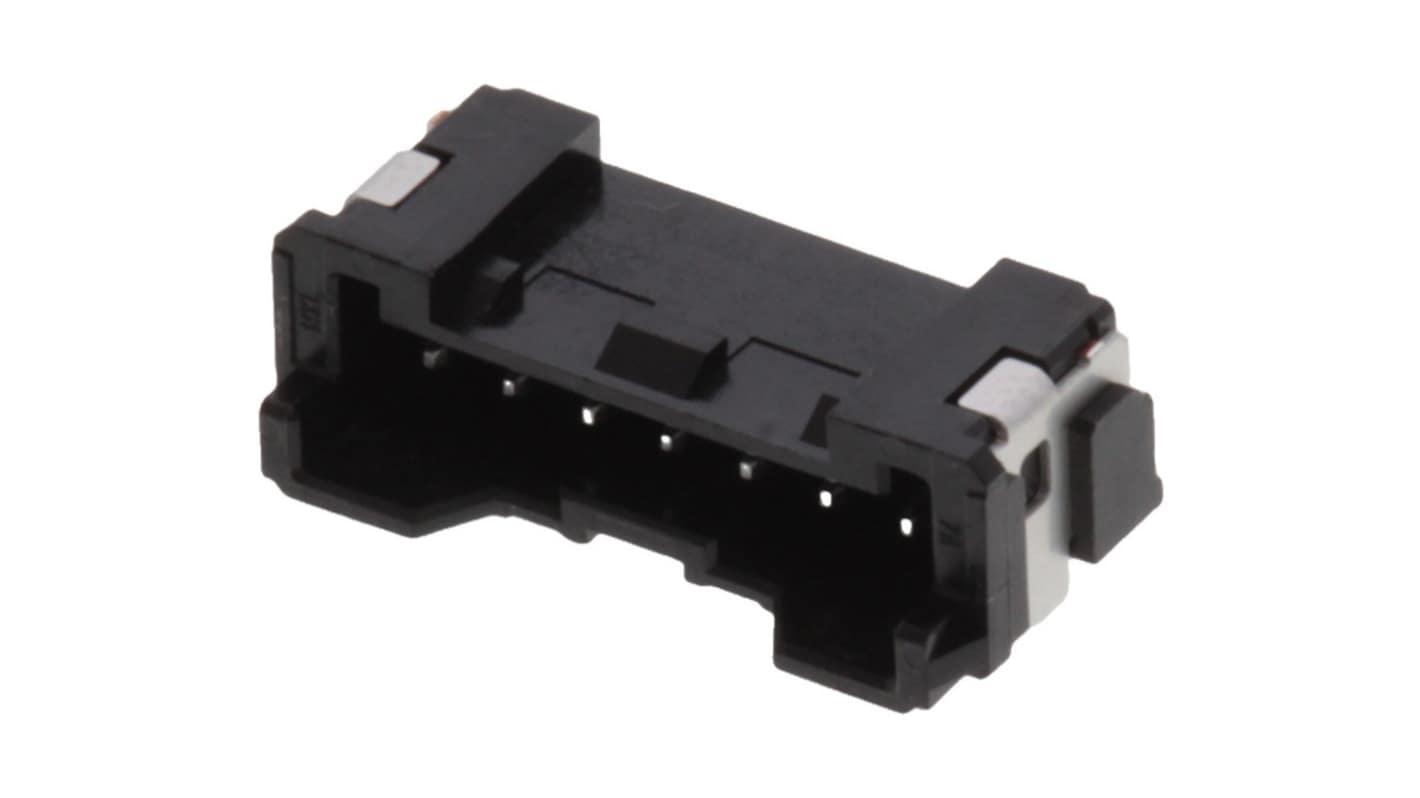

Molex 505578 Series Vertical Surface PCB Header, 7 Contact(s), 2 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 506-015
- Mfr. Part No.:
- 505578-0771
- Brand:
- Molex
Subtotal (1 reel of 900 units)*
£646.82
(exc. VAT)
£776.18
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £646.82 | £0.719 |
*price indicative
- RS Stock No.:
- 506-015
- Mfr. Part No.:
- 505578-0771
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 505578 | |
| Product Type | PCB Header | |
| Pitch | 2mm | |
| Current | 3.4A | |
| Housing Material | Polyamide | |
| Number of Contacts | 7 | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Surface | |
| Contact Plating | Matt Tin | |
| Contact Material | Brass | |
| Termination Type | Surface Mount | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 2mm | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | 94V-0, IEC 61249-2-21, UL E29179 | |
| Voltage | 25 V | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 505578 | ||
Product Type PCB Header | ||
Pitch 2mm | ||
Current 3.4A | ||
Housing Material Polyamide | ||
Number of Contacts 7 | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Surface | ||
Contact Plating Matt Tin | ||
Contact Material Brass | ||
Termination Type Surface Mount | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 2mm | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals 94V-0, IEC 61249-2-21, UL E29179 | ||
Voltage 25 V | ||
- COO (Country of Origin):
- MY
The TE Connectivity plus PCB header is designed with precision for demanding applications where reliability and performance are paramount. Featuring a 2.00mm pitch configuration, it embodies advanced engineering principles that ensure effective and secure connections. With a right-angle orientation and surface mount design, this component integrates seamlessly into various circuit boards, providing versatility across numerous projects. The matte tin plating not only enhances durability but also ensures compliance with low-halogen standards, making it an environmentally responsible choice. Whether for signal transmission or wire-to-board applications, this product guarantees longevity and dependability in your electronic assemblies.
Engineered for high-performance signal integrity
Right-angle orientation optimises PCB space efficiency
Matte tin plating enhances resistance to corrosion
Low-halogen construction supports environmental compliance
Suitable for a wide range of electronic applications
Support for a maximum current of 3.4A per contact
Durability of 30 mating cycles ensures long-term use
Easy integration with 7 circuits loaded capability
Robust construction with polyamide resin for added strength
