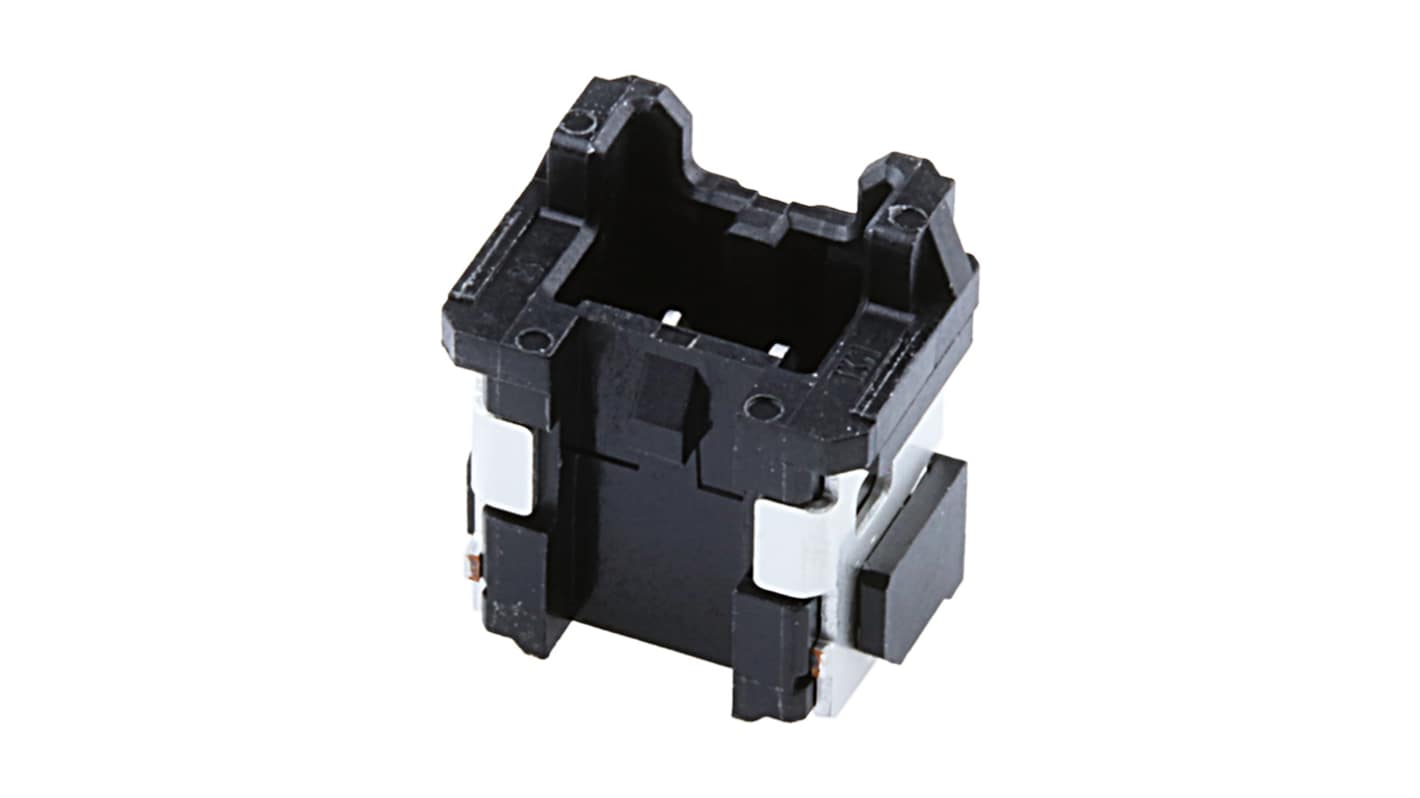

Molex 505575 Series Vertical Surface PCB Header, 2 Contact(s), 2 mm Pitch, 1 Row, Shrouded
- RS Stock No.:
- 506-014
- Mfr. Part No.:
- 505575-0271
- Brand:
- Molex
Subtotal (1 reel of 600 units)*
£359.34
(exc. VAT)
£431.21
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £359.34 | £0.599 |
*price indicative
- RS Stock No.:
- 506-014
- Mfr. Part No.:
- 505575-0271
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Series | 505575 | |
| Product Type | PCB Header | |
| Current | 3.4A | |
| Pitch | 2mm | |
| Number of Contacts | 2 | |
| Housing Material | Polyamide | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Surface | |
| Contact Plating | Matt Tin | |
| Contact Material | Brass | |
| Row Pitch | 2mm | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Surface Mount | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Female | |
| Standards/Approvals | IEC 61249-2-21, IEC-62474, IPC 1752A Class C, IPC 1752A Class D, UL E29179 | |
| Voltage | 250Vrms | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Series 505575 | ||
Product Type PCB Header | ||
Current 3.4A | ||
Pitch 2mm | ||
Number of Contacts 2 | ||
Housing Material Polyamide | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Surface | ||
Contact Plating Matt Tin | ||
Contact Material Brass | ||
Row Pitch 2mm | ||
Minimum Operating Temperature -40°C | ||
Termination Type Surface Mount | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Female | ||
Standards/Approvals IEC 61249-2-21, IEC-62474, IPC 1752A Class C, IPC 1752A Class D, UL E29179 | ||
Voltage 250Vrms | ||
- COO (Country of Origin):
- MY
The Molex Plus PCB header is meticulously designed to facilitate seamless connections in electronic applications. Engineered for reliability, this single-row vertical connector boasts a 2.00mm pitch, ensuring versatility in wiring configurations. This product is built to withstand the rigours of industrial environments, featuring a matte tin plating that not only enhances its durability but also ensures excellent conductivity. Its low-halogen composition caters to eco-conscious users, while the positive locking mechanism guarantees secure connections. With a Compact structure and robust performance characteristics, this connector is an Ideal choice for signal and wire-to-board applications, embodying quality and innovation for the modern engineering workplace.
Offers a strong and reliable connection even in demanding conditions
Designed with a matte tin finish for high conductivity and durability
Low-halogen materials contribute to a safer environmental footprint
The Compact design allows for efficient use of space on PCBs
Positive locking mechanism ensures parts stay securely mated during operation
Accommodates a maximum current of 3.4A, Ideal for signal transmission
The vertical orientation simplifies the integration into tighter assemblies
Compatible with a variety of single-row receptacle housings for versatile applications
