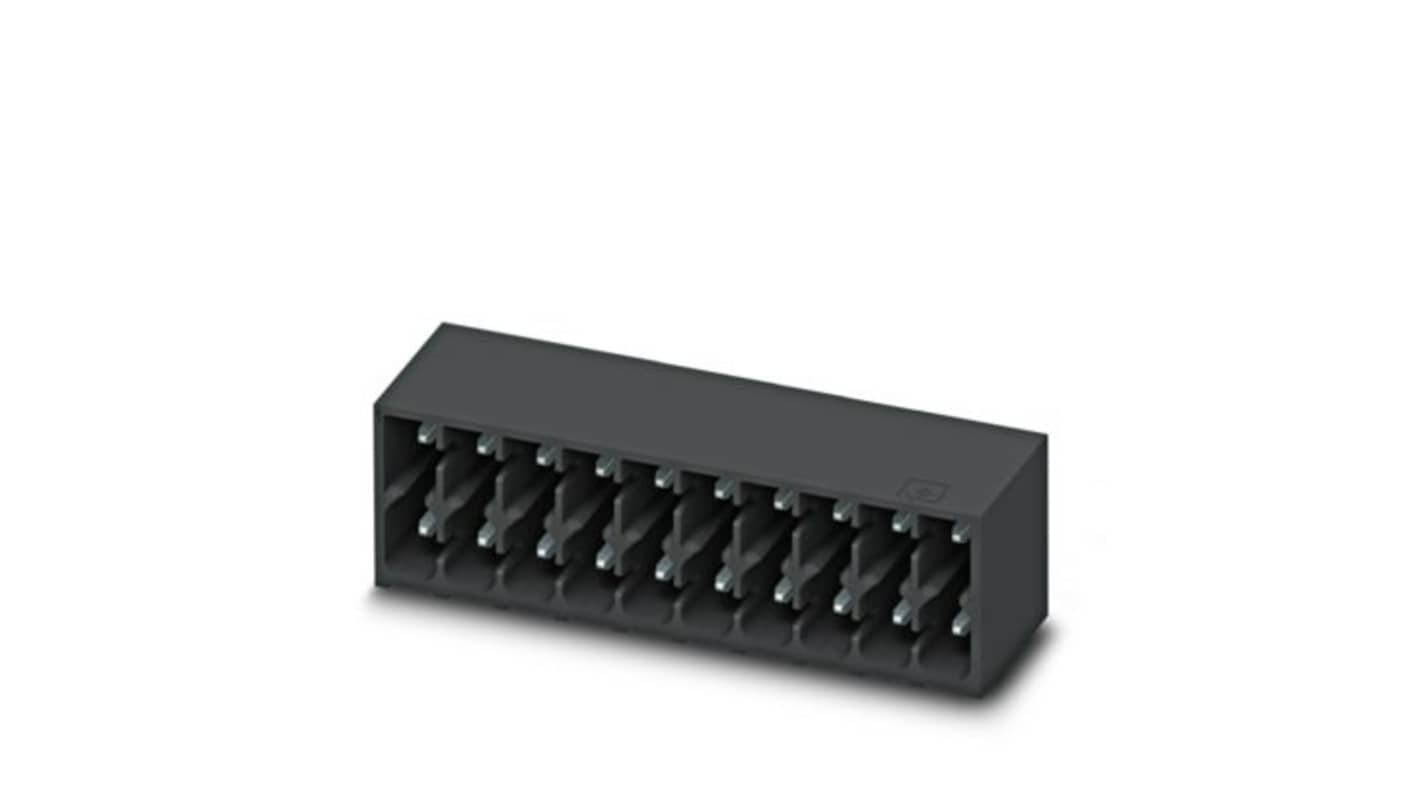

Phoenix Contact DMC Series Straight Wave Soldering Mount PCB Header, 34 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 pack of 50 units)*

£642.72

(exc. VAT)

£771.26

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 17 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s)
Per Pack
Per unit*
1 +£642.72£12.854

*price indicative

RS Stock No.:
497-148
Mfr. Part No.:
1786989
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

PCB Header

Series

DMC

Current

8A

Pitch

3.5mm

Number of Contacts

34

Housing Material

Liquid Crystal Polymer

Number of Rows

2

Orientation

Straight

Shrouded/Unshrouded

Shrouded

Mount Type

Wave Soldering Mount

Connector System

COMBICON DFMC 1

Contact Plating

Tin Plated

Contact Material

Copper Alloy

Minimum Operating Temperature

-40°C

Row Pitch

3.5mm

Contact Gender

Male

Tail Pin Length

2mm

Maximum Operating Temperature

100°C

Standards/Approvals

cULus Recognised, VDE

Mating Pin Length

2mm

Voltage

160 V

COO (Country of Origin):
CN
The Phoenix Contact PCB header is a highly innovative component tailored for modern applications requiring efficient space management and high contact density. Designed specifically for SMT soldering processes, it allows for seamless integration into electronic systems, ensuring reliable performance. Constructed with robust metal contacts and a compliant insulating material, it provides exceptional electrical properties, optimising reliability even in temperature extremes. The compact and intelligent design promotes efficient assembly while maintaining easy accessibility for connections. With its versatile performance characteristics, this product is the ideal choice for applications across a wide range of industries, where quality and efficiency are paramount. The user will appreciate the thoughtful design features that focus on both functionality and ease of use, making it a preferred choice amongst engineers and technicians alike.

Designed for superior integration into SMT soldering processes

Enables high contact density with its multi-level conductor connection

Compact footprint ideal for applications with limited space

Constructed from materials that comply with WEEE/RoHS regulations

Striking black colour ensures a professional appearance in any design

Robust pin layout enhances stability during operation

Simplified assembly with easy access for connectors

Offers high insulation resistance for added safety and reliability

Equipped for multiple soldering cycles ensuring longevity

Meets stringent environmental compliance standards
