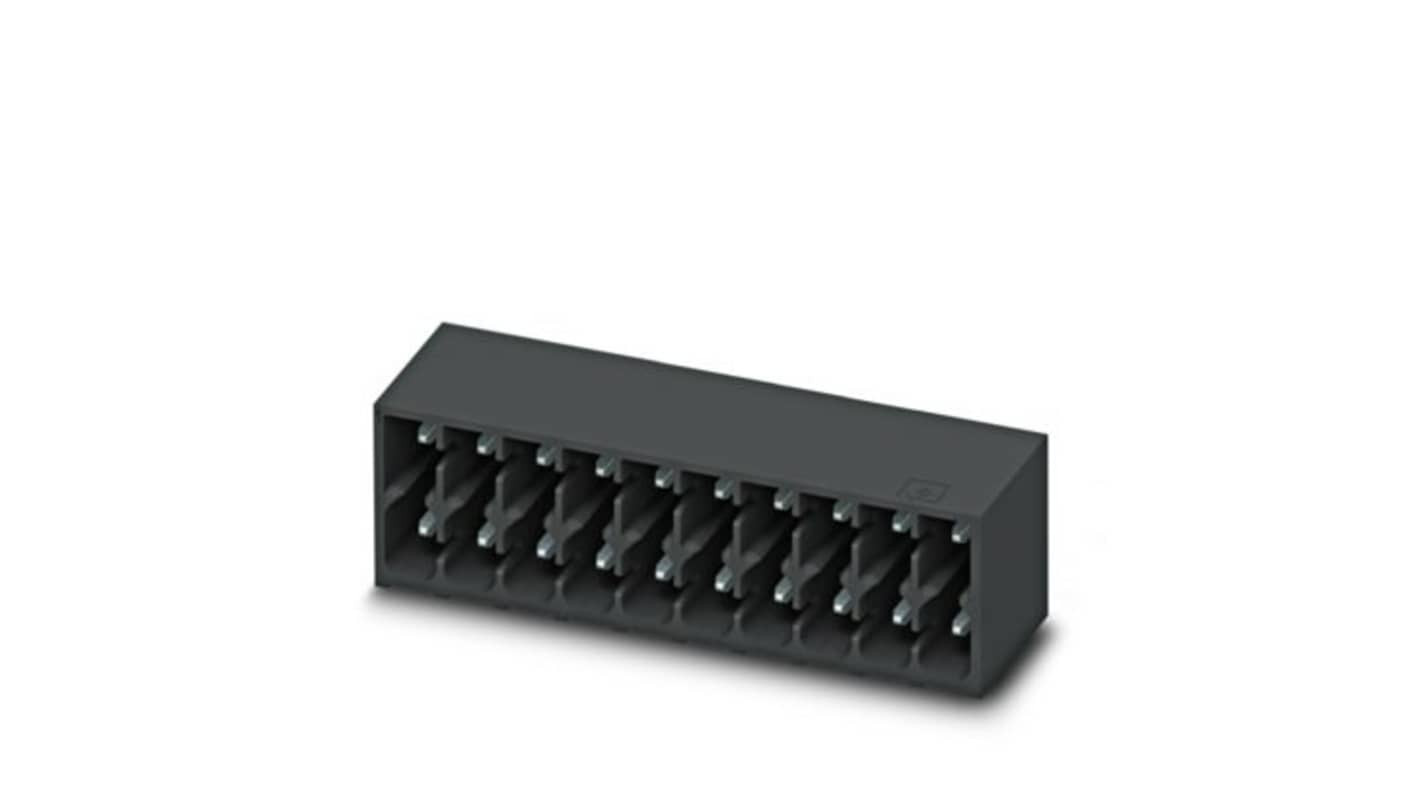

Phoenix Contact DMC Series Straight Wave Soldering Mount PCB Header, 38 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 483-409
- Mfr. Part No.:
- 1874425
- Brand:
- Phoenix Contact
Subtotal (1 pack of 50 units)*
£718.33
(exc. VAT)
£862.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £718.33 | £14.367 |
*price indicative
- RS Stock No.:
- 483-409
- Mfr. Part No.:
- 1874425
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | DMC | |
| Product Type | PCB Header | |
| Pitch | 3.5mm | |
| Current | 8A | |
| Housing Material | Liquid Crystal Polymer | |
| Number of Contacts | 38 | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | COMBICON DFMC 1 | |
| Mount Type | Wave Soldering Mount | |
| Contact Material | Copper Alloy | |
| Contact Plating | Tin Plated | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Row Pitch | 3.5mm | |
| Tail Pin Length | 2.6mm | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Mating Pin Length | 2.6mm | |
| Standards/Approvals | cULus Recognised, VDE report with production monitoring | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series DMC | ||
Product Type PCB Header | ||
Pitch 3.5mm | ||
Current 8A | ||
Housing Material Liquid Crystal Polymer | ||
Number of Contacts 38 | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System COMBICON DFMC 1 | ||
Mount Type Wave Soldering Mount | ||
Contact Material Copper Alloy | ||
Contact Plating Tin Plated | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Row Pitch 3.5mm | ||
Tail Pin Length 2.6mm | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Mating Pin Length 2.6mm | ||
Standards/Approvals cULus Recognised, VDE report with production monitoring | ||
Voltage 160 V | ||
- COO (Country of Origin):
- CN
The Phoenix Contact PCB header is expertly designed to facilitate high-density connections in compact assemblies. With its robust build, it seamlessly integrates into SMT soldering processes, catering to modern manufacturing requirements. The product offers a flexible solution with multiple potential connections, making it ideal for varied electronic applications. Further enhancing its usability, the compact design accommodates environments where space is limited, ensuring reliability without compromise. Perfectly aligned for efficient assembly practices, this product boasts exceptional electrical properties that enhance overall circuit performance. Whether for new designs or replacements, this PCB header stands out as a crucial component in your electronic projects.
Optimised for easy integration into surface mount technology
Offers a greater number of connections without increasing space requirements
Constructed to withstand rigorous soldering processes
Designed for efficient thermal management during operation
Ensures compliance with environmental standards for safety and performance
Features a sturdy modular construction for enhanced functionality
Supports a high current capacity, allowing for diverse applications
Black housing colour offers a professional aesthetic in applications
